Specifications
1 V Fold Paper Towel Machine2 Speed 1000 sheet/min/line
3 Italy design
4 Laminating or embossing
5 Jumbo roll width 2000mm
Italy Design High Speed Automatic V Fold Paper Towel Machine
Detailed description of Italy Design High Speed Automatic V Fold Paper Towel Machine
Model |
VTM-200-10L |
| Output | 10lines output. Other capacity like 3lines, 4lines, up to 15lines are available. |
| Folding speed | 800-1000 sheet/min/line x 10 lines, depending on paper quality and workers' operation. |
Use |
Production of facial tissues andinterfold V fold hand towel. Two produced by One machine |
Raw material |
13-40gsm 2-ply or 1-ply virgin tissue or other tissue |
Jumbo roll size |
2000mm width x 1100 mm diameter. Other sizes available. Width can be up to 2500mm. |
Unfolded size |
200±2mm x 200mm. Other size 190x190mm, 210x210mm, 230x250mm etc. available. Please specify. |
Folded size |
100±2mm x 200mm. One cutting size is adjustable |
Folding Type |
V fold/Interfold/vacuum fold |
Control |
Main motor controlled by inverter Frequency speed control Emergency stop if paper breaks Vacuum pump for adsorption Air pressure:0.5Mpa(buyer supply) |
Folding unit |
Thickened Floor standing wallboard structure(Full steel plate) so that the machine is running at high speed without vibration. Automatic counting unit |
Embossing unit |
2 set of steel-to-rubber embossing rollers(Pattern provided by client) Thickened Floor standing wallboard structure(Full steel plate) Controlled by NEW design level-type cylinder, not screws. Italy and Taiwan design. |
Edge embossing |
Optional with NEW design. |
Laminating unit |
Optional |
Jumbo roll stand |
2 back stand, controlled cushion cylinder Web tension control Adding perfume unit(Optional) |
Power |
7KW main motor, 22KW vacuum pump 3-phase AC380V 50HZ or 2-phase 220V 60Hz, or customized. |
Machine Size |
6000x2500x1900mm |
Weight |
6500KG |
Below are more details of our Italy Design High Speed Automatic V Fold Paper Towel Machine

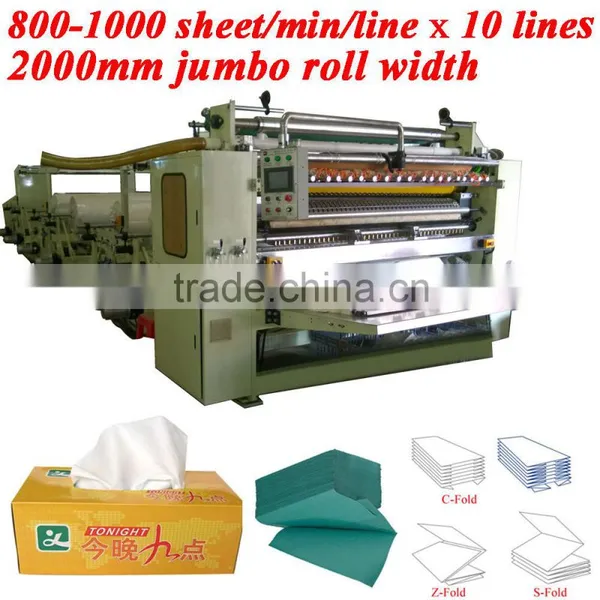

Overall view of Italy Design High Speed Automatic V Fold Paper Towel Machine
Our Italy Design High Speed Automatic V Fold Paper Towel Machine is with complete steel plate structure.
Our Italy Design High Speed Automatic V Fold Paper Towel Machine is with Lamination unit, steel to steel embossing unit and Taiwan Vacuum Pump.
Perfect folding of our Italy Design High Speed Automatic V Fold Paper Towel Machine. The jumbo roll width is 2000mm for 10lines output. The folding is still perfect while running at stable speed of 1000 sheet/min/line.
Our Italy Design High Speed Automatic V Fold Paper Towel Machine is able to work with 1,2 or 3 plies of virgin paper, mixed/blended pulp paper, recycled paper with different quality and 13-45gsm.
Perfect folding of our Italy Design High Speed Automatic V Fold Paper Towel Machine
Steel to steel embossing unit of Italy Design High Speed Automatic V Fold Paper Towel Machine, the embossing pattern can be customized dots, LOGO, flowers, words etc.
Folding types of our Italy Design High Speed Automatic V Fold Paper Towel Machine can be V fold, Interfold, C fold, N fold, M fold, W fold and so on. Other folding types also available.
Green V Fold Towels made by our Italy Design High Speed Automatic V Fold Paper Towel Machine, unfolded size 230x250mm and folded 115x250mm.

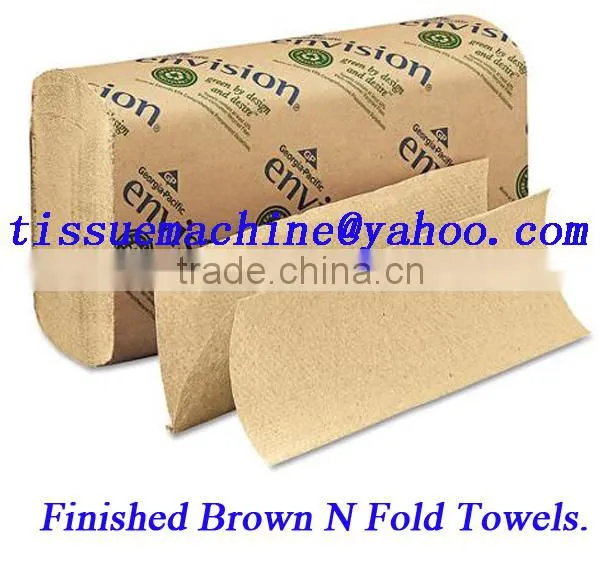

N Fold towels made by our Italy Design High Speed Automatic V Fold Paper Towel Machine.
M Fold towels made by our Italy Design High Speed Automatic V Fold Paper Towel Machine.
C Fold towels made by our Italy Design High Speed Automatic V Fold Paper Towel Machine. Unfolded size 230x310mm and folded size 90x230mm.

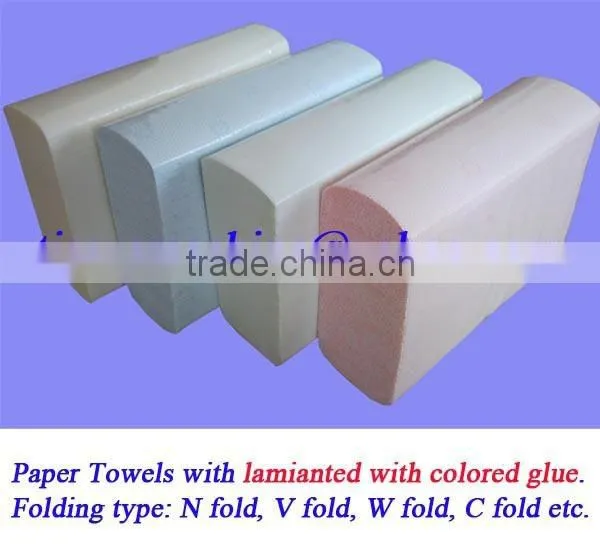

Laminated towels with colored glue made by our Italy Design High Speed Automatic V Fold Paper Towel Machine.
Boxed facial tissues made by our Italy Design High Speed Automatic V Fold Paper Towel Machine.
Soft plastic packed facial tissues made by our Italy Design High Speed Automatic V Fold Paper Towel Machine.
* V Fold Paper Towel Machine V Fold Paper Towel Machine V Fold Paper Towel Machine V Fold Paper Towel Machine V Fold Paper Towel Machine V Fold Paper Towel Machine V Fold Paper Towel Machine V Fold Paper Towel Machine V Fold Paper Towel Machine V Fold Paper Towel Machine
