Specifications
1 C Fold Paper Towel Machine2 800 piece/min
3 2lines output
4 20 years experience
5 C fold M fold N fold
CPM-2L Automatic High Speed C Fold Paper Towel Machine
Detailed description of CPM-2L Automatic High Speed C Fold Paper Towel Machine
Model |
CPM C Fold Paper Towel Machine |
| Output | 2lines output. Other capacity like 3lines, 4lines, up to 6 lines are available. |
| Folding speed | 400 sheet/min/line x 2lines, depending on paper quality and workers' operation. |
Use |
Production of C fold hand towel. |
Raw material |
25-45gsm 1-ply virgin tissue or other tissue |
Jumbo roll size |
620mm width x 1100 mm diameter. Other sizes available. |
Unfolded size |
230mm x 310mm. Other size available. Please specify. |
Folded size |
230mm x 90mm. One cutting size is adjustable |
Folding Type |
C fold. Other folding available. |
Control |
Main motor controlled by inverter Frequency speed control Emergency stop if paper breaks Vacuum pump for adsorption Air pressure:0.5Mpa(buyer supply) |
Folding unit |
Automatic counting unit |
Embossing unit |
1 set of steel-to-steel embossing rollers(Pattern provided by client) Controlled by NEW design level-type cylinder, not screws. Italy and Taiwan design. |
Laminating unit |
Optional |
Jumbo roll stand |
1 back stand, controlled cushion cylinder Web tension controlled by hand wheels. Adding perfume unit(Optional) |
Power |
4KW main motor, 7.5KW vacuum pump 3-phase AC380V 50HZ or 2-phase 220V 60Hz, or customized. |
Machine Size |
4000x1300x1900mm |
Weight |
2000KG |
| Photos and video available. Please contact us. | |
Below are more details of our CPM-2L Automatic High Speed C Fold Paper Towel Machine

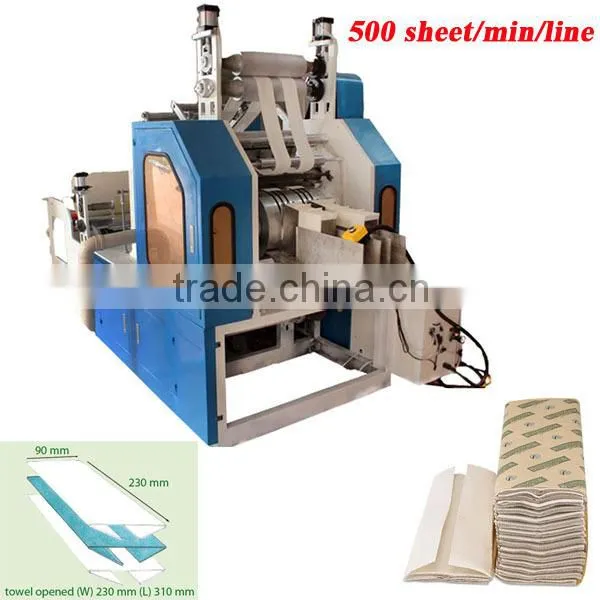

Overall view of our CPM-2L Automatic High Speed C Fold Paper Towel Machine.

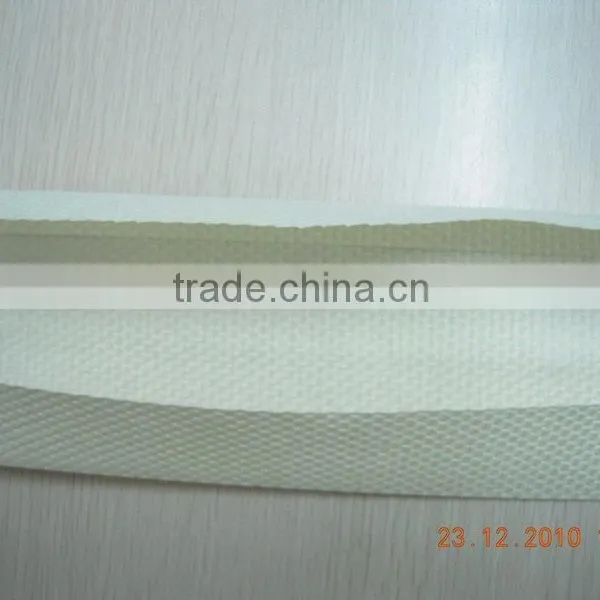

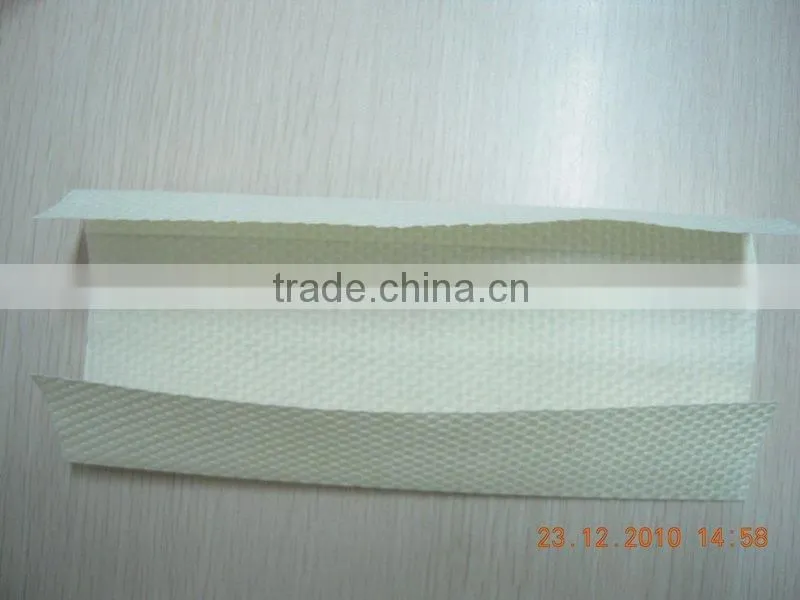

Folding type of our CPM-2L Automatic High Speed C Fold Paper Towel Machine.

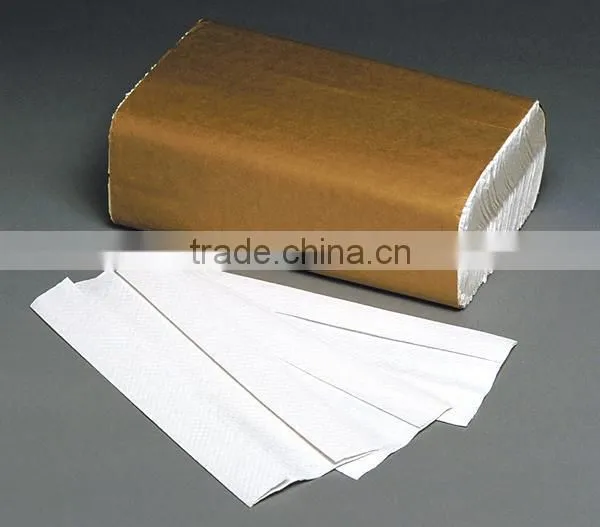

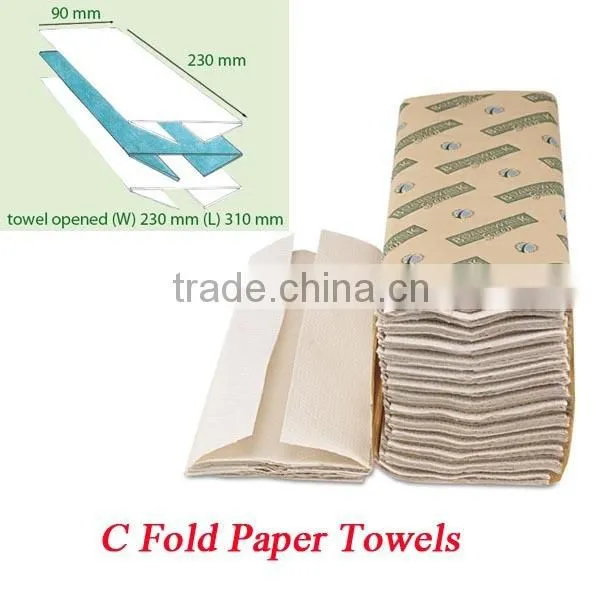

Finished C fold towels made by our CPM-2L Automatic High Speed C Fold Paper Towel Machine.

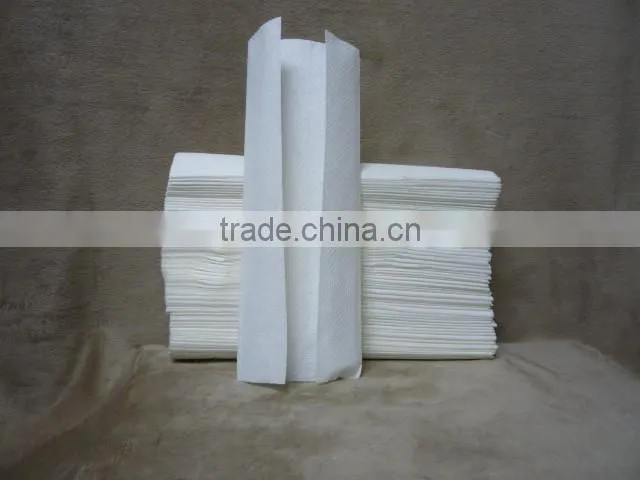

Finished C fold hand towel made by CPM-2L Automatic High Speed C Fold Paper Towel Machine.

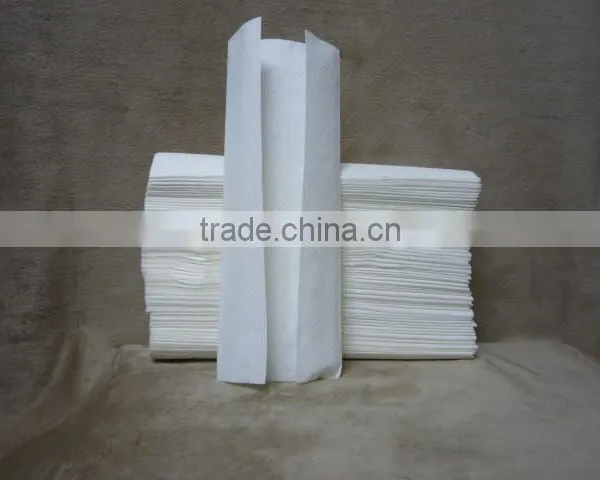

Finished C fold hand towel made by CPM-2L Automatic High Speed C Fold Paper Towel Machine.
