High Speed Automatic Laminated Interfolder Tissue Paper Machine .
Detailed description of High Speed Automatic Laminated Interfolder Tissue Paper Machine .
Model |
VTM-200-10L |
| Output | 10lines output. Other capacity like 3lines, 4lines, up to 15lines are available. |
| Folding speed | 800-1000 sheet/min/line x 10 lines, depending on paper quality and workers' operation. |
Use |
Production of facial tissues andinterfold V fold hand towel. Two produced by One machine |
Raw material |
13-45gsm 2-ply or 1-ply virgin tissue or other tissues. |
Jumbo roll size |
2000mm width x 1100 mm diameter. Other sizes available. Width can be up to 2500mm. |
Unfolded size |
200±2mm x 200mm. Other size 190x190mm, 210x210mm, 230x250mm etc. available. Please specify. |
Folded size |
100±2mm x 200mm. One cutting size is adjustable |
Folding Type |
V fold/Interfold/vacuum fold. Other folding like N/Z/W/M/C folds are available. |
Control |
Main motor controlled by inverter Frequency speed control Emergency stop if paper breaks Vacuum pump for adsorption Air pressure:0.5Mpa(buyer supply) |
Folding unit |
Thickened Floor standing wallboard structure(Full steel plate) so that the machine is running at high speed without vibration. Automatic counting unit |
Embossing unit |
2 set of steel-to-rubber embossing rollers(Pattern provided by client) Thickened Floor standing wallboard structure(Full steel plate) Controlled by NEW design level-type cylinder, not screws. Italy and Taiwan design. |
Edge embossing |
Optional with NEW design. |
Laminating unit |
Optional |
Jumbo roll stand |
2 back stand, controlled cushion cylinder Web tension control Adding perfume unit(Optional) |
Power |
7KW main motor, 22KW vacuum pump 3-phase AC380V 50HZ or 2-phase 220V 60Hz, or customized. |
Machine Size |
6000x2500x1900mm |
Weight |
6500KG |
Below are more details of our

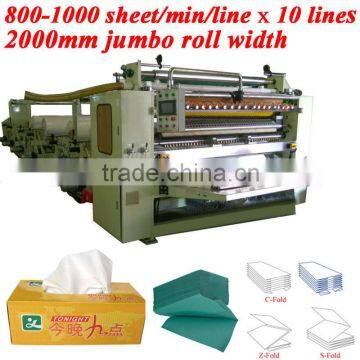

Overall view of High Speed Automatic Laminated Interfolder Tissue Paper Machine .
Our High Speed Automatic Laminated Interfolder Tissue Paper Machine is with complete steel plate structure.
Our High Speed Automatic Laminated Interfolder Tissue Paper Machine is with Lamination unit, steel to steel embossing unit and Taiwan Vacuum Pump.
Perfect folding of our High Speed Automatic Laminated Interfolder Tissue Paper Machine . The jumbo roll width is 2000mm for 10lines output. The folding is still perfect while running at stable speed of 1000 sheet/min/line.

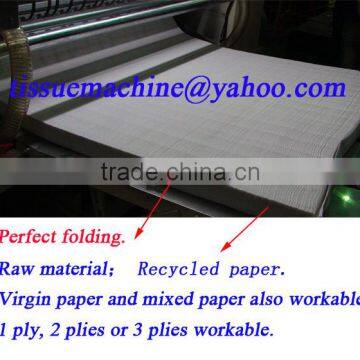

Our High Speed Automatic Laminated Interfolder Tissue Paper Machine is able to work with 1,2 or 3 plies of virgin paper, mixed/blended pulp paper, recycled paper with different quality and 13-45gsm.
Perfect folding of our High Speed Automatic Laminated Interfolder Tissue Paper Machine .
Steel to steel embossing unit of High Speed Automatic Laminated Interfolder Tissue Paper Machine , the embossing pattern can be customized dots, LOGO, flowers, words etc.
Folding types of our High Speed Automatic Laminated Interfolder Tissue Paper Machine can be V fold, Interfold, C fold, N fold, M fold, W fold and so on. Other folding types also available.

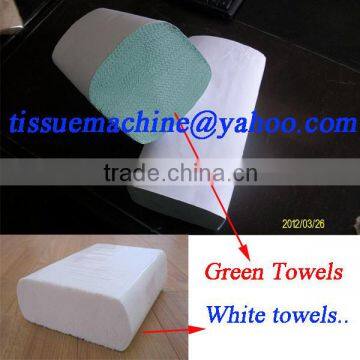

Green V Fold Towels made by our High Speed Automatic Laminated Interfolder Tissue Paper Machine unfolded size 230x250mm and folded 115x250mm.
N Fold towels made by our High Speed Automatic Laminated Interfolder Tissue Paper Machine .
M Fold towels made by our High Speed Automatic Laminated Interfolder Tissue Paper Machine .
C Fold towels made by our High Speed Automatic Laminated Interfolder Tissue Paper Machine . Unfolded size 230x310mm and folded size 90x230mm.

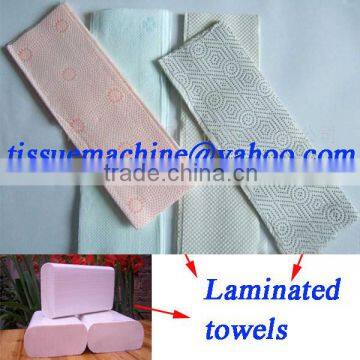

Laminated towels with colored glue made by our High Speed Automatic Laminated Interfolder Tissue Paper Machine .

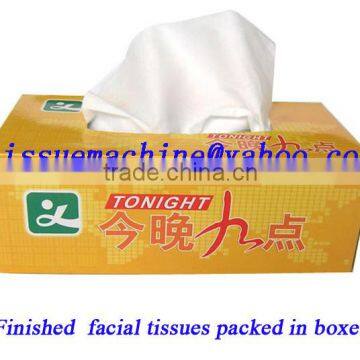

Boxed facial tissues made by our Laminated Interfolder Tissue Paper Machine .
Soft plastic packed facial tissues made by our High Speed Automatic Laminated Interfolder Tissue Paper Machine .
