800 Piece per Minute per Line Laminated High Speed Automatic Equipment Paper Towel N Folding.
Detailed description of 800 Piece per Minute per Line Laminated High Speed Automatic Equipment Paper Towel N Folding.
Model |
NTM-240-6L |
| Output | 6 lines output. Other capacity like 3lines, 4lines, up to 15lines are available. |
| Folding speed |
600-1000 sheet/min/line x 6 lines, depending on paper quality and workers' operation. Other capacity available like 3lines, 4lines, 7lines, 10lines etc. |
Use |
Production of interfold N fold hand towel. |
Raw material |
20-50gsm 2-ply or 1-ply virgin tissue or other tissue |
Jumbo roll size |
1440mm width x 1100 mm diameter. Other sizes available. Width can be up to 2500mm. |
Unfolded size |
240±2mm x 240mm. Other size 210x210mm, 250x250mm etc. available. Please specify. |
Folded size |
80±2mm x 240mm. One cutting size is adjustable |
Folding Type |
N/ZW/M/V fold/Interfold/vacuum fold |
Control |
Main motor controlled by inverter Frequency speed control Emergency stop if paper breaks Vacuum pump for adsorption Air pressure:0.5Mpa(buyer supply) |
Folding unit |
Thickened Floor standing wallboard structure(Full steel plate) so that the machine is running at high speed without vibration. Automatic counting unit |
Embossing unit |
1 set of steel-to-steel embossing unit. (Pattern provided by client) Thickened Floor standing wallboard structure(Full steel plate) Controlled by NEW design level-type cylinder, not screws. Italy and Taiwan design. |
Laminating unit |
Optional. Please contact us for further details. |
Jumbo roll stand |
1 back stand, controlled cushion cylinder Web tension control Automatic loading jumbo rolls. |
Power |
5KW main motor, 22KW vacuum pump 3-phase AC380V 50HZ or 3-phase 220V 60Hz, or customized. |
Machine Size |
5000x2500x1900mm |
Weight |
6500KG |
Below are more details of our 800 Piece per Minute per Line Laminated High Speed Automatic Equipment Paper Towel N Folding.
Overall view of 800 Piece per Minute per Line Laminated High Speed Automatic Equipment Paper Towel N FoldingN.
Overall view of 800 Piece per Minute per Line Laminated High Speed Automatic Equipment Paper Towel N Folding.
Overall view of 800 Piece per Minute per Line Laminated High Speed Automatic Equipment Paper Towel N Folding .
Our 800 Piece per Minute per Line Laminated High Speed Automatic Equipment Paper Towel N Folding is with complete steel plate structure.
Our 800 Piece per Minute per Line Laminated High Speed Automatic Equipment Paper Towel N Folding is with steel to steel embossing unit and Taiwan Vacuum Pump.
Perfect folding of our 800 Piece per Minute per Line Laminated High Speed Automatic Equipment Paper Towel N Folding. The jumbo roll width is 1440mm for 6 lines output. The folding is still perfect while running at stable speed of 600-1000 sheet/min/line.
Our 800 Piece per Minute per Line Laminated High Speed Automatic Equipment Paper Towel N Folding is able to work with 1,2 or 3 plies of virgin paper, mixed/blended pulp paper, recycled paper with different quality and 13-45gsm.
Our 800 Piece per Minute per Line Laminated High Speed Automatic Equipment Paper Towel N Folding can work with Brown Towels.
Finished Brown Towels produced by our 800 Piece per Minute per Line Laminated High Speed Automatic Equipment Paper Towel N Folding.
Folding types of our 800 Piece per Minute per Line Laminated High Speed Automatic Equipment Paper Towel N Folding can be V fold, Interfold, C fold, N fold, M fold, W fold and so on. Other folding types also available.
N Fold BROWN towels made by our 800 Piece per Minute per Line Laminated High Speed Automatic Equipment Paper Towel N Folding.
Our 800 Piece per Minute per Line Laminated High Speed Automatic Equipment Paper Towel N Folding can also convert Green Towels.
Green Fold towels made by our 800 Piece per Minute per Line Laminated High Speed Automatic Equipment Paper Towel N Folding.
Laminated towels with colored glue made by our 800 Piece per Minute per Line Laminated High Speed Automatic Equipment Paper Towel N Folding.

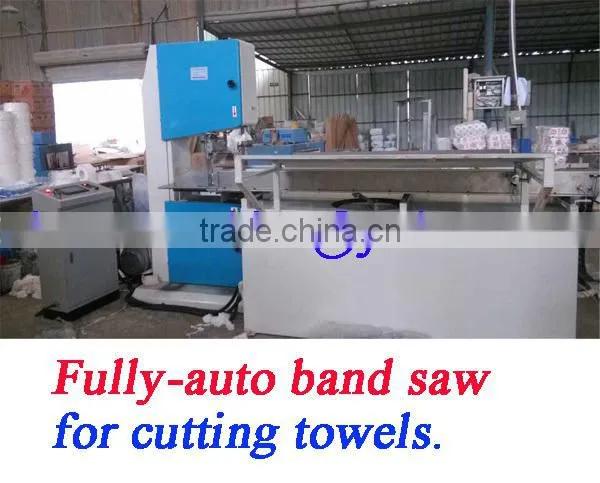

We have Fully-auto Band Saw to connect our 800 Piece per Minute per Line Laminated High Speed Automatic Equipment Paper Towel N Folding.
* Automatic Equipment Paper Towel N Folding Automatic Equipment Paper Towel N Folding Automatic Equipment Paper Towel N Folding Automatic Equipment Paper Towel N Folding Automatic Equipment Paper Towel N Folding Automatic Equipment Paper Towel N Folding Automatic Equipment Paper Towel N Folding Automatic Equipment Paper Towel N Folding Automatic Equipment Paper Towel N Folding Automatic Equipment Paper Towel N Folding Automatic Equipment Paper Towel N Folding Automatic Equipment Paper Towel N Folding
