German Italy Design 4800 Piece per Minute Laminated Automatic High Speed Towel Folder Machin Machinery Convertig Paper Tissue.
Detailed description of German Italy Design 4800 Piece per Minute Laminated Automatic High Speed Machinery Convertig Paper Tissue.
Model |
NTM-240-6L |
| Output | 6 lines output. Other capacity like 3lines, 4lines, up to 15lines are available. |
| Folding speed |
600-1000 sheet/min/line x 6 lines, depending on paper quality and workers' operation. Other capacity available like 3lines, 4lines, 7lines, 10lines etc. |
Use |
Production of interfold N fold hand towel. |
Raw material |
20-50gsm 2-ply or 1-ply virgin tissue or other tissue |
Jumbo roll size |
1440mm width x 1100 mm diameter. Other sizes available. Width can be up to 2500mm. |
Unfolded size |
240±2mm x 240mm. Other size 210x210mm, 250x250mm etc. available. Please specify. |
Folded size |
80±2mm x 240mm. One cutting size is adjustable |
Folding Type |
N/ZW/M/V fold/Interfold/vacuum fold |
Control |
Main motor controlled by inverter Frequency speed control Emergency stop if paper breaks Vacuum pump for adsorption Air pressure:0.5Mpa(buyer supply) |
Folding unit |
Thickened Floor standing wallboard structure(Full steel plate) so that the machine is running at high speed without vibration. Automatic counting unit |
Embossing unit |
1 set of steel-to-steel embossing unit. (Pattern provided by client) Thickened Floor standing wallboard structure(Full steel plate) Controlled by NEW design level-type cylinder, not screws. Italy and Taiwan design. |
Laminating unit |
Optional. Please contact us for further details. |
Jumbo roll stand |
1 back stand, controlled cushion cylinder Web tension control Automatic loading jumbo rolls. |
Power |
5KW main motor, 22KW vacuum pump 3-phase AC380V 50HZ or 3-phase 220V 60Hz, or customized. |
Machine Size |
5000x2500x1900mm |
Weight |
6500KG |
Below are more details of our German Italy Design 4800 Piece per Minute Laminated Automatic High Speed Machinery Convertig Paper Tissue.
Overall view of German Italy Design 4800 Piece per Minute Laminated Automatic High Speed Machinery Convertig Paper Tissue.
Overall view of German Italy Design 4800 Piece per Minute Laminated Automatic High Speed Machinery Convertig Paper Tissue.
Overall view of German Italy Design 4800 Piece per Minute Laminated Automatic High Speed Machinery Convertig Paper Tissue.
Our German Italy Design 4800 Piece per Minute Laminated Automatic High Speed Machinery Convertig Paper Tissue is with complete steel plate structure.
Our German Italy Design 4800 Piece per Minute Laminated Automatic High Speed Machinery Convertig Paper Tissue is with steel to steel embossing unit and Taiwan Vacuum Pump.
Perfect folding of our German Italy Design 4800 Piece per Minute Laminated Automatic High Speed Machinery Convertig Paper Tissue. The jumbo roll width is 1440mm for 6 lines output. The folding is still perfect while running at stable speed of 600-1000 sheet/min/line.
Our German Italy Design 4800 Piece per Minute Laminated Automatic High Speed Machinery Convertig Paper Tissue is able to work with 1,2 or 3 plies of virgin paper, mixed/blended pulp paper, recycled paper with different quality and 13-45gsm.
Our German Italy Design 4800 Piece per Minute Laminated Automatic High Speed Machinery Convertig Paper Tissue can work with Brown Towels.
Finished Brown Towels produced by our German Italy Design 4800 Piece per Minute Laminated Automatic High Speed Machinery Convertig Paper Tissue.
Folding types of our German Italy Design 4800 Piece per Minute Laminated Automatic High Speed Machinery Convertig Paper Tissue can be V fold, Interfold, C fold, N fold, M fold, W fold and so on. Other folding types also available.
N Fold BROWN towels made by our German Italy Design 4800 Piece per Minute Laminated Automatic High Speed Machinery Convertig Paper Tissue.
Our German Italy Design 4800 Piece per Minute Laminated Automatic High Speed Machinery Convertig Paper Tissue can also convert Green Towels.
Green Fold towels made by our German Italy Design 4800 Piece per Minute Laminated Automatic High Speed Machinery Convertig Paper Tissue.
Laminated towels with colored glue made by our German Italy Design 4800 Piece per Minute Laminated Automatic High Speed Machinery Convertig Paper Tissue.

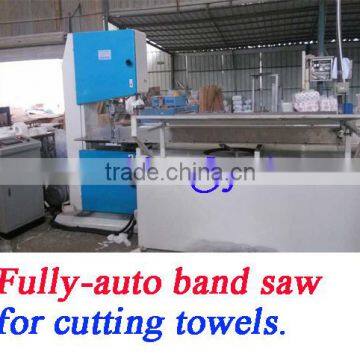

We have Fully-auto Band Saw to connect our German Italy Design 4800 Piece per Minute Laminated Automatic High Speed Machinery Convertig Paper Tissue.
* Machinery Convertig Paper Tissue Machinery Convertig Paper Tissue Machinery Convertig Paper Tissue Machinery Convertig Paper Tissue Machinery Convertig Paper Tissue Machinery Convertig Paper Tissue Machinery Convertig Paper Tissue Machinery Convertig Paper Tissue Machinery Convertig Paper Tissue Machinery Convertig Paper Tissue Machinery Convertig Paper Tissue Machinery Convertig Paper Tissue
