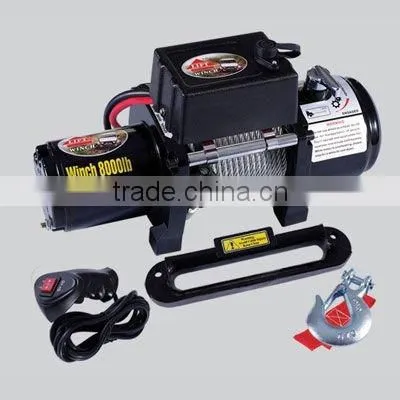

Car Electric Winch

Car Electric Winch photo-1
US$ 130 - 180 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
weknown
Model Number:
P8000
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name weknown
Model Number P8000
Power Source Electric
Application Auto
Capacity 8000LBS

car electric winch

P8000(12/24V)
8000 lbs Electric Winch for car

8000 LBS FEATURES AND SPECIFICATIONS
Rated Line Pull 8000LBS (3629kgs) single line
Motor 4.13hp/3.0kw, Series Wound
Control Remote switch, 12ft(3.7m)lead
Gear train 3 Stage Planetary
Gear train ratio 218:1
Clutch Sliding Ring Gear
Braking Action Automatic In-The-Drum
Drum Size Φ2.6"×8.8" (Φ64×224m)
Cable 94ft of 5/16" diameter (28m of 8.1mm dianeter)
Remote Control Included
Battery Recommended:650CCA minimum for winching
Battery Leads 2 gauge,72"(183mm)
Finish Black powder coat
Overall Dimensions 21.1"×6.3"×8.6"(537mm×160mm×218mm)
Mounting Bolt Pattern 254mm×114.3mm
Weight N.W.34kg    G.W.38Kg
Packing Size 57×19×34.5cm    1PC/CTN


8000LBS LINE SPEED AND AMP DRAW (FIRST LAYER) 12V
Line Pull
lbs
0
2000
4000
6000
8000
kg
0
907
1814
2721
3628
Line Speed
ft/min
22.5
11.48
8.53
8.53
5
m/min
6.85
3.5
2.6
2.6
1.4
Motor
Amps
65
90
120
120
210


8000LBS LINE PULL AND CABLE CAPACITY
Layers of cable 1 2 3 4
Rated line pull per layer lbs 8000 6500 5500 4800
kg 3629 2948 2495 2173
Cumulative cable capacity ft 19.6 42.6 68.9 92
m 6 13 21 28
