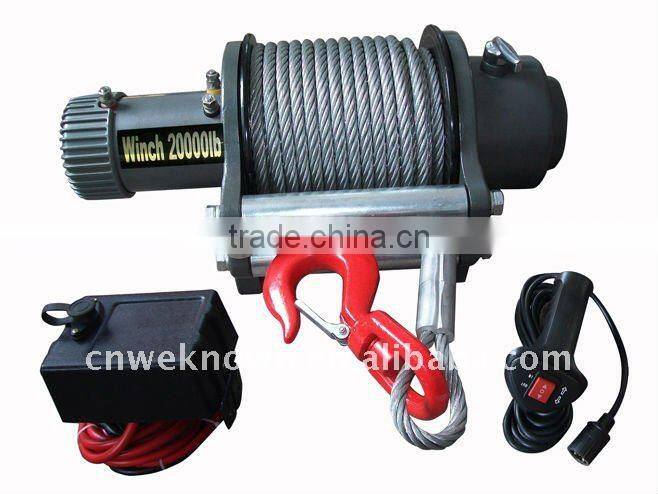

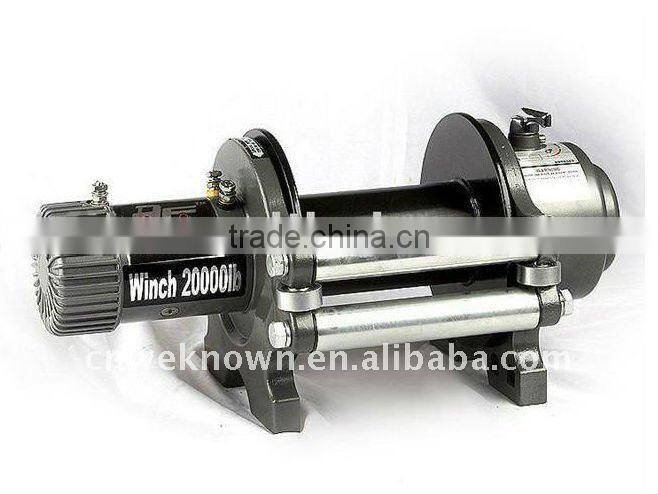

20000 Lbs Heavy Duty Car Electric Winch 12v/24v

20000 Lbs Heavy Duty Car Electric Winch 12v/24v thumbnail-1
20000 Lbs Heavy Duty Car Electric Winch 12v/24v thumbnail-2
20000 Lbs Heavy Duty Car Electric Winch 12v/24v thumbnail-3
20000 Lbs Heavy Duty Car Electric Winch 12v/24v thumbnail-4
20000 Lbs Heavy Duty Car Electric Winch 12v/24v thumbnail-5
20000 Lbs Heavy Duty Car Electric Winch 12v/24v photo-1

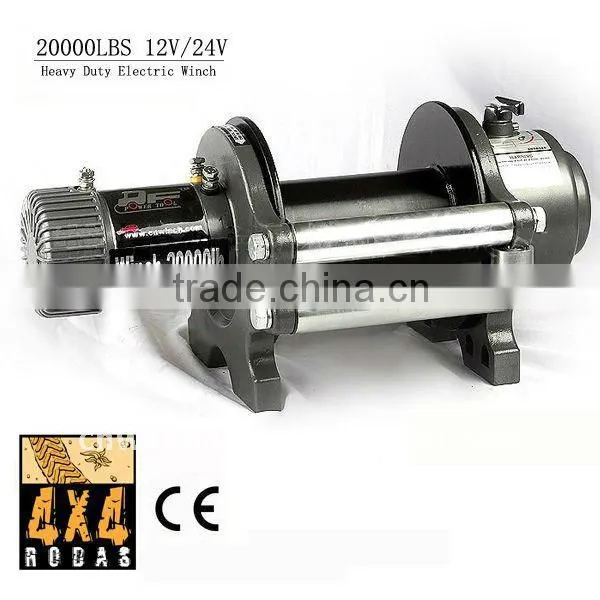

20000 Lbs Heavy Duty Car Electric Winch 12v/24v photo-2

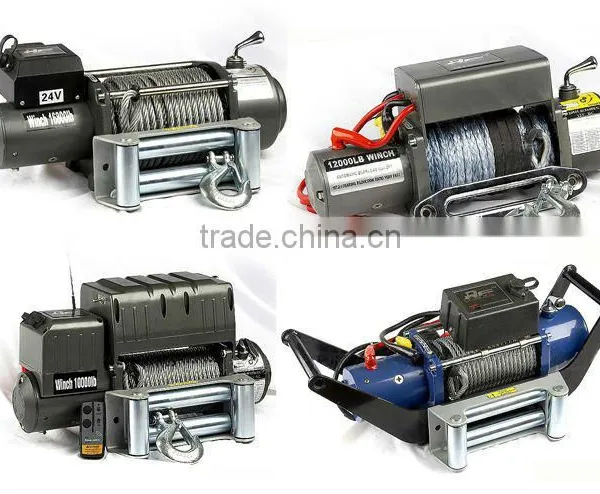

20000 Lbs Heavy Duty Car Electric Winch 12v/24v photo-3
20000 Lbs Heavy Duty Car Electric Winch 12v/24v photo-4
20000 Lbs Heavy Duty Car Electric Winch 12v/24v photo-5
US$ 50 - 500 MOQ: 30 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
weknown
Model Number:
S20000
Contact Supplier Request Quote Chat Now
Shanghai Weknown Auto Parts Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name weknown
Model Number S20000
Power Source Electric
Application Auto
Capacity 20000Ibs





20000 lbs heavy duty car electric winch 12v/24v20000 lbs heavy duty car electric winch 12v/24v20000 lbs heavy duty car electric winch 12v/24v20000 lbs heavy duty car electric winch 12v/24v20000 lbs heavy duty car electric winch 12v/24v





electric winch/waterproof  winch

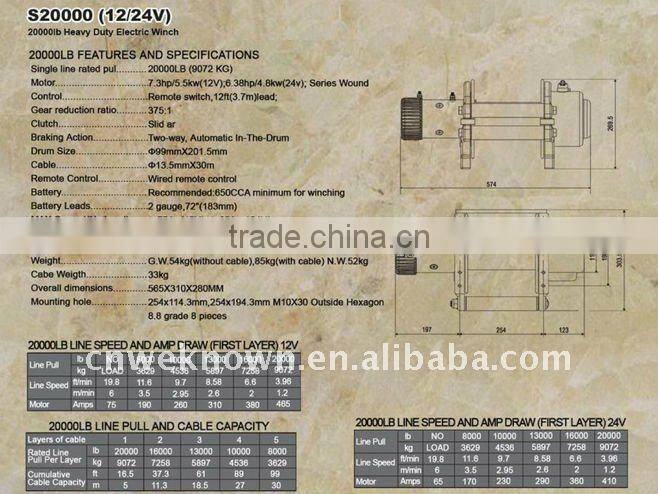

20000LB FEATURES AND SPECIFICATIONS

Single line rated pull 20000LB (9072kg)
Motor 7.3hp/5.5kw(12V),6.38hp/4.8kw(24V), Series Wound
Control Remote switch, 12ft(3.7m)lead
Gear train ratio 375:1
Clutch Slid ar
Braking Action Two-way, Automatic in-the drum
Drum Size Φ99mm×201.5mm
Cable Φ13.5mm×30m
Remote Control Wired remote control
Battery Recommended:650CCA minimum for winching
Battery Leads 2 gauge,72"(183mm)
MAX Current (No load) ≥75A (12V) ≥65A(24V)
MAX Current (load) ≥465A(12V) ≥410A(24V)
Finish Dark gray powder coat
Weight G.W:54kg (without cable), 85kg(with cable) N.W:52Kkg
Cable Weighth 33kg
Overall Dimensions 565×310×280MM
Mounting hole 254×114.3mm, 254×194.3mm M10×30 Outside Hexagon 8.8 grade 8 pieces

20000LB LINE SPEED AND AMP DRAW (FIRST LAYER) 12V

Line Pull
lbs
 NO
8000
10000
13000
 16000 20000
kg
 load 3629 4536 5897 7258 9072
Line Speed
ft/min
 19.8 11.6 9.7 8.58 6.6 3.96
m/min
 6 3.5 2.95 2.6 2 1.2
Motor
Amps
 75 190 260 310 380 465

20000LB LINE SPEED AND AMP DRAW (FIRST LAYER) 24V

Line Pull
lbs
 NO
8000
10000
13000
 16000 20000
kg
 load 3629 4536 5897 7258 9072
Line Speed
ft/min
 19.8 11.6 9.7 8.58 6.6 3.96
m/min
 6 3.5 2.95 2.6 2 1.2
Motor
Amps
 65 170 230 290 360 410

20000LB LINE PULL AND CABLE CAPACITY

Layers of cable 1 2 3 4 5
Rated line pull per layer lbs 20000 16000 13000 10000 8000
kg 9072 7258 5897 4536 3629
Cumulative cable capacity ft 16.5 37.3 61 89 99
m 5 11.3 18.5 27 30





Description:

1.The biggest heavy duty electric winch
2.Waterproofed motor and gearbox.
Specification: Truck Winch 20000lb winch (12V or 24V), the biggest DC electric winch, CE winch.
