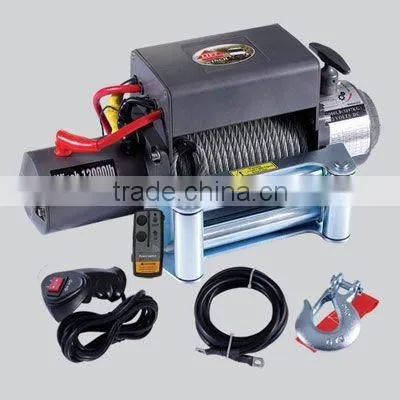

13000 Lbs Heavy Duty Electric Winch
US$ 130 - 180
MOQ: 50 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
weknown
Model Number:
SIC13000W
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shanghai, China
Brand Name
weknown
Model Number
SIC13000W
Power Source
Electric
Application
Auto
Capacity
13000Ibs
Model:SEC13000(12/24V)
Name:13000 lbs Heavy Duty Electric Winch
| Rated Line Pull | 13000LBS (5897kgs) single line |
| Motor | 5.5hp/4.0kw 12V, 6.44hp/4.8kw 24V Series Wound |
| Control | Remote switch, 12ft(3.7m)lead |
| Gear train | 3 Stage Planetary |
| Gear train ratio | 218.4:1 |
| Clutch | Flexible operation,water-resistent |
| Braking Action | Automatic In-The-Drum |
| Drum Size | Φ64mm×L223mm |
| Cable | Φ9.5mm,26m |
| Fairlead | 4-Way Roller Fairlead |
| Remote Control | Included |
| Battery | Recommended:650CCA minimum for winching |
| Battery Leads | 2 gauge,72"(183mm) |
| Finish | Dark gray powder coat |
| Overall Dimensions | 21.3"×6.3"×8.6"(540mm×160mm×218mm) |
| Mounting Bolt Pattern | 254mm×114.3mm |
| Weight | N.W.39kg G.W.41kg |
| Packing Size | 57×19×34.5cm 1PC/CTN |
13000LBS LINE SPEED AND AMP DRAW (FIRST LAYER) 12V
| Line Pull | lbs |
0 | 2000 |
4000 |
6000 |
8000 | 10000 | 13000 |
kg |
0 | 907 |
1814 |
2721 |
3628 | 4536 | 5897 | |
| Line Speed | ft/min |
22.5 | 12.4 | 9.8 | 8.5 | 7.5 | 6.56 | 4.8 |
m/min |
6.85 | 3.8 | 3.0 | 2.6 | 2.3 | 2.0 | 1.48 | |
| Motor | Amps |
65 | 110 | 165 | 220 | 270 | 340 | 430 |
13000LBS LINE SPEED AND AMP DRAW (FIRST LAYER) 24V
| Line Pull | lbs |
0 | 2000 |
4000 |
6000 |
8000 | 10000 | 13000 |
kg |
0 | 907 |
1814 |
2721 |
3628 | 4536 | 5897 | |
| Line Speed | ft/min |
24.86 | 12.79 | 10.23 | 8.79 | 8.04 | 6.89 | 5.12 |
m/min |
7.85 | 3.9 | 3.12 | 2.68 | 2.45 | 2.1 | 1.56 | |
| Motor | Amps |
52 | 107 | 146 | 178 | 205 | 235 | 305 |
13000LBS LINE PULL AND CABLE CAPACITY
| Layers of cable | 1 | 2 | 3 | 4 | |
| Rated line pull per layer | lbs | 13000 | 10010 | 8840 | 7410 |
| kg | 5897 | 4541 | 4010 | 3361 | |
| Cumulative cable capacity | ft | 15 | 34.6 | 58.6 | 85.3 |
| m | 4.58 | 10.54 | 17.87 | 26 | |
