Car Winch

Car Winch thumbnail-1
Car Winch photo-1
US$ 130 - 180 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
weknown
Model Number:
S12000
Contact Supplier Request Quote Chat Now
Shanghai Weknown Auto Parts Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name weknown
Model Number S12000
Power Source Electric
Application Auto
Capacity 12000LB

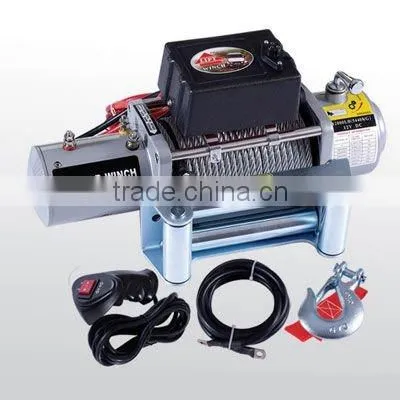

Car Winch



S12000LB(12/24V)  electric winch
12000 lb Heavy Duty Electric Winch

SPECIFICATIONS
Rated Line Pull 12000LB (5443kgs) single line
Motor 6.6hp/4.8kw(12V) 4.0hp/3.0kw(24V) Series Wound
Control Remote switch, 12ft(3.7m)lead
Gear train 3 Stage Planetary
Gear train ratio 187.2:1
Clutch Sliding Ring Gear
Braking Action Automatic In-The-Drum
Drum Size Diameter 2.52"(64mm)Length 8.82"(224mm)
Cable 23/64" of 94ft dianeter (Φ9.1mm*28m)
Fairlead 4-Way Roller Fairlead
Remote Control Optional
Battery Recommended:650CCA minimum for winching
Battery Leads 2 gauge,72"(183mm)
Finish Dark gray powder coat
Overall Dimensions 21.1"×6.3"×8.6"(537mm×160mm×218mm)
Mounting Bolt Pattern 254mm×114.3mm
Weight N.W.40kg    G.W.42kg
Packing Size 57×19×34.5cm    1PC/CTN


12000LB LINE SPEED AND AMP DRAW (FIRST LAYER) 12V
Line Pull
lbs
 0
4000
6000
 8000 10000 12000
kg
 0 1810 2720 3630 4540 5440
Line Speed
ft/min
 33.3 16.8 12.8 10.1 8.8 7.6
m/min
 10.3 5.1 3.9 3.1 2.7 2.3
Motor
Amps
 85 158 231 302 371 450



12000LB LINE PULL AND CABLE CAPACITY

Layers of cable 1 2 3 4
Rated line pull per layer lbs 12000 9210 8030 6894
kg 5443 4170 3640 3125
Cumulative cable capacity ft 17 41 71 82
m 4.8 12 21 25
