Help CenterAuto Winch
US$ 130 - 180
MOQ: 50 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
weknown
Model Number:
SIC10000
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shanghai, China
Brand Name
weknown
Model Number
SIC10000
Power Source
Electric
Application
Auto
Capacity
10000Ibs
Model:SIC10000(12/24V)

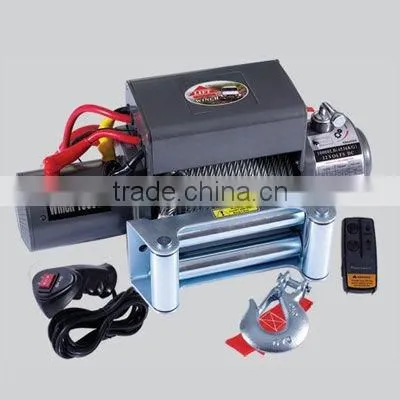

Name:auto electric winch
10000 LBS FEATURES AND SPECIFICATIONS
| Rated Line Pull | 10000LBS (4536kgs) single line |
| Motor | 5.5hp/4.0kw 12V 3.6hp/2.68kw 24V Series Wound |
| Control | Remote switch, 12ft(3.7m)lead |
| Gear train | 3 Stage Planetary |
| Gear train ratio | 148.2:1 |
| Clutch | Sliding Ring Gear |
| Braking Action | Automatic In-The-Drum |
| Drum Size | Φ64mm×L223.5mm |
| Cable | Φ8.3mm,28mm |
| Fairlead | 4-Way Roller Fairlead |
| Remote Control | Included |
| Battery | Recommended:650CCA minimum for winching |
| Battery Leads | 2 gauge,72"(183mm) |
| Finish | Dark gray powder coat |
| Overall Dimensions | 21.1"×6.3"×8.6"(537mm×160mm×218mm) |
| Mounting Bolt Pattern | 254mm×114.3mm |
| Weight | N.W.37kg G.W.39kg |
| Packing Size | 57×19×34.5cm 1PC/CTN |
10000LBS LINE SPEED AND AMP DRAW (FIRST LAYER) 24V
| Line Pull | lbs |
0 | 2000 |
4000 |
6000 |
8000 | 10000 |
kg |
0 | 907 |
1814 |
2721 |
3628 | 4536 | |
| Line Speed | ft/min |
38.9 | 16.3 | 12.3 | 10.4 | 8.6 | 5.8 |
m/min |
11.9 | 4.9 | 3.7 | 3.2 | 2.6 | 1.8 | |
| Motor | Amps |
50 | 100 | 145 | 190 | 230 | 290 |
10000LBS LINE SPEED AND AMP DRAW (FIRST LAYER) 12V
| Line Pull | lbs |
0 | 2000 |
4000 |
6000 |
8000 | 10000 |
kg |
0 | 907 |
1814 |
2721 |
3628 | 4536 | |
| Line Speed | ft/min |
35.4 | 14.8 | 11.2 | 9.5 | 7.87 | 5.25 |
m/min |
10.8 | 4.5 | 3.4 | 2.9 | 2.4 | 1.6 | |
| Motor | Amps |
75 | 180 | 220 | 290 | 360 | 450 |
10000LBS LINE PULL AND CABLE CAPACITY
| Layers of cable | 1 | 2 | 3 | 4 | |
| Rated line pull per layer | lbs | 10000 | 7930 | 6566 | 5604 |
| kg | 4536 | 3596 | 2977 | 2541 | |
| Cumulative cable capacity | ft | 17 | 38.7 | 64.6 | 91.8 |
| m | 5.2 | 11.8 | 19.7 | 28 | |
