Help CenterDPB- 140 Automatic Aluminium-Plastic Blister Packing Machine
Related Products
Specifications
1. Main driving unit;2. Long life;
3. Smooth running;
4. Meet cGMP;
5. Automatically controlled by PLC;

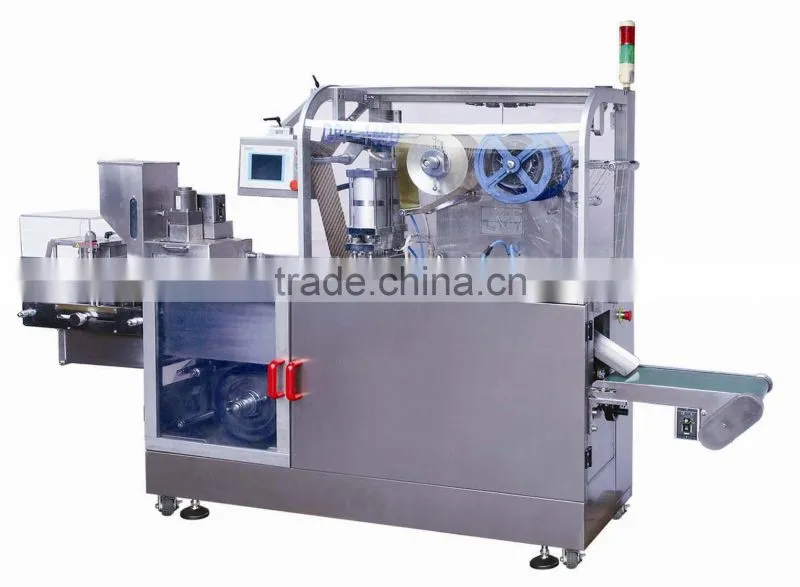

DPB- 140 Automatic Aluminium-Plastic Blister Packing Machine
We can supply a complete set according to the users' requirments.
It is the latest new product specially designed for dosage room of hospital, medium-sized and small sized pharmaceutical plant, health care product plant, with small sized body, ease of operation, full purpose, adjustable stroke, long durability etc with well popularity. It has passed the provincial science and technology appraisal, and obtained the second prize of Science and Technology Progress by Rear-service of PLA.
Feature:
l Main transmission is adopted with imported gear reducer with long life and lower noise.
l Adjustable stroke, plate dimensions can be changed freely, suitable for multiple kinds of specifications.
l Flat-plate structure, any shape of the product can be packed. Such as: ellipse, square, triangle etc.
Note: cursor fixed to track with sealing
Main Technical Data:
Cutting Frequency (times/min) |
6-45 |
Capacity( 10thous pics/h ) |
2-11 |
Max shaping areas and depth (mm) |
130X110X26 |
Stroke (mm) |
40-120(can be manufactured as user's requirements) |
Standard Plate (mm) |
80X57(can be manufactured as user's requirements) |
Air Pressure (kw) |
0.4-0.6 |
Total power |
380V/220V 50Hz 3.2kw |
Pressure (kw) |
1.1 |
PVC hard pieces (mm) |
0.15-0.5X140 |
PTP Aluminum Foil (mm) |
0.02-0.035X140 |
Dialysis Paper (mm) |
50-100gX140 |
Mould Cooling |
Tap water or recycle water |
Overall Dimensions (mm) |
2300X560X1410(LXWXH) |
Weight |
700 |
Customer Service
Our excellent customer service also includes the installation of our machines. To ensure smooth performance, we also provide a one year warranty, and a spare set of wearing parts to our customers. If any difficulty occurs, we will supply free spare parts and even on-site service, upon request.
Please contact us to help you with your particular pharmacy equipment needs.
About SPM
Shanghai Pharmaceutical Machinery Co. Ltd. (SPM) is recognized as a major pharmacy equipment manufacturer and supplier. Our company is founded in Shanghai, China, with a base of 16 years of prior experience in the pharmaceutical industry. This has allowed us to expand our business in a well-planned manner. We now offer a comprehensive line of quality pharmaceutical machines at competitive prices. In addition, we can undertake turnkey projects for conceptual design, process design, water treatment solutions, cleanroom design, etc.
SPM Products
Our products fall into four categories, which are solid preparation machinery,iquid-injection processing machinery, pharmaceutical packaging machinery, and laboratory instruments. Some of our primary products are pulverizers, blenders, granulators, sterilizing machines, blister packing machines, encasing machines, air compressors, and tablet testing instruments. Our solid preparation equipment and liquid processing equipment, which are corrosion resistant, highly effective, safe, and easy to use, are utilized in countless applications. For example, our rotary tablet press presses granular materials into tablets, our capsule filling machine is suitable for filling powdered or granular materials into capsules, and our freeze drying machine is mainly used for the cryo-drying of blood products, vaccines, antibiotics, and biological products. For more product applications, please see our product page to find a complete list of our pharmaceutical machinery.
