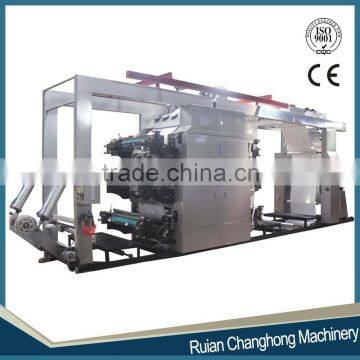

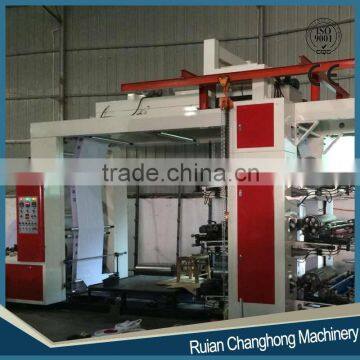

Help CenterChanghong 4/6 Color PP Woven Bag Flexographic Printing Machine
Related Products
-
Changhong 6 Color PP Woven Bag Flexographic Printing MachineUS$ 20,000 - 60,000MOQ: 1 Set -
Changhong 6 Color PP Woven Bag Flexographic Printing MachineUS$ 20,000 - 50,000MOQ: 1 Set
-
6 Color Pp Woven Flexographic Printing MachineUS$ 20,000 - 100,000MOQ: 1 Set
-
6 Color Pp Woven Fabric Flexographic Printing MachineUS$ 20,000 - 100,000MOQ: 1 Set
-
Changhong 4/6 Colors PP Non Woven Printing MachineUS$ 15,000 - 70,000MOQ: 1 Set
6 colors PP Woven Bag Flexographic Printing Machine
Main Features
1. Take it easy, accurate color, long life
2. The use of motors, variable frequency speed control, saving electricity, running small fluctuations
3. Off printing roll automatic stop the ink-running motor, and up-printing roll automatic start running the ink
4. The use of special diagonal-tooth gear, print size is accurate,
5. There are two sets of heating devices, including central heating and constant temperature control system for packet control
6. Low-roller special steel processing, and special process, and plating thickness of 0.1mm protective layer of hard chromium
7 Alloy roll with hard oxidation, treating by dynamic balance, static balanced
8 With a cold wind bellows, and can effectively prevent produce with ink adhesion after printing
9. The Print produce are clear and good arrangement quality
10. Bearing: NSK, Japan brand, Germany ASNU aluminum alloy roll
Main Parts of printing machine
1)Automatic tension control and magnetic power
2)with EPC
3)air shaft
4)cylinder stator
5) Auto Loading
6)Taiwan Inverter
7) Schneider Swtiches
8)Chint Relay
9) Chromed Cylinder
Main Technical Parameter
Model |
CH886-600 |
CH886-800 |
CH886-1000 |
CH886-1200 |
CH886-1400 |
CH886-1600 |
Max. Material width |
650mm |
850mm |
1050mm |
1250mm |
1450mm |
1650mm |
Max. Printing width |
560mm |
760mm |
960mm |
1160mm |
1360mm |
1560mm |
Printing material |
Weave Cloth,Single filter membrance PP Weave Cloth, Double filter membrance PP Weave Cloth |
|||||
Printing color |
6 Color |
|||||
Printing length |
7.5"-50"(190mm-1270mm) |
|||||
Printing plate lifting system |
Hydraulic press control |
|||||
Mechanical speed |
90m/min |
|||||
Printing speed |
10-70m/min |
|||||
Anilox roller |
Metal: 100-300LPI Or Ceramic anilx roller(200-1000LPI), single doctor blade |
|||||
Register precision |
Longitude:±0.2mm Transverse:±0.2mm |
|||||
Rewinder/Unwinder DIA |
ø 1000mm/ø 1200mm/ø 1500mm |
|||||
Master power |
32KW |
34KW |
36 KW |
40 KW |
45KW |
50 KW |
Weight |
5500Kg |
5600 Kg |
5800 Kg |
6000 Kg |
6200 Kg |
6400 Kg |
Dimension (L×W×H) |
7.0m |
7.0m |
7.0m |
7.0m |
7.0m |
7.0m |
1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
