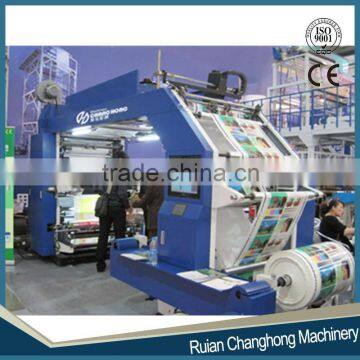

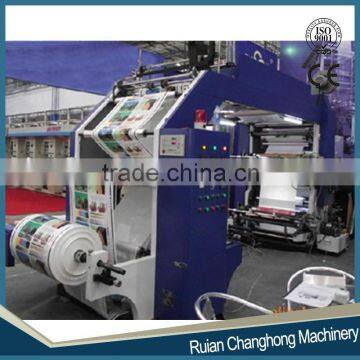

Multicolor Printing Machine for Non woven Bags
The main features :
1. Take it easy, accurate color, long life
2. The use of motors, variable frequency speed control, saving electricity, running small fluctuations
3. Off printing roll automatic stop the ink-running motor, and up-printing roll automatic start running the ink
4. The use of special diagonal-tooth gear, print size is accurate,
5. There are two sets of heating devices, including central heating and constant temperature control system for packet control
6. Low-roller special steel processing, and special process, and plating thickness of 0.1mm protective layer of hard chromium
7 Alloy roll with hard oxidation, treating by dynamic balance, static balanced
8 With a cold wind bellows, and can effectively prevent produce with ink adhesion after printing
9. The Print produce are clear and good arrangement quality
10. Bearing: NSK, Japan brand, Germany ASNU aluminum alloy roll
Main Technical Parameter:
Printing width Item |
800mm |
1000mm |
1200mm |
1400mm |
1600mm |
1800mm |
2000mm |
2200mm |
||
Printing color |
4 color |
|||||||||
Printing length |
7.5"-40"/7.5"-50" |
|||||||||
Printing plate lifting system |
Pneumatic/Hydraulic press control |
|||||||||
Mechanical speed |
80m/min |
|||||||||
Printing speed |
60m/min |
|||||||||
Anilox cylinder |
Metal: 10DK-100DK(Germany) |
|||||||||
Register precision |
Longitude:±0.20mm Transverse:±0.20mm |
|||||||||
Rewinder/Unwinder DIA |
ø 600mm/ ø 800mm/ ø 1000mm |
|||||||||
Master motor |
3KW |
3.7KW |
4KW |
5.5KW |
5.5KW |
7.5KW |
7.5KW |
11KW |
||
Unwinder motor |
1.1 KW |
1.5 KW |
2.2 KW |
3.0 KW |
||||||
Rewinder motor |
1.5 KW |
2.2 KW |
3.0 KW |
3.7KW |
||||||
Electrical header |
21KW |
24KW |
27KW |
30KW |
33KW |
36KW |
40KW |
45KW |
||
Blower of header |
0.75KW×3 |
1.1KW×3 |
1.1KW×3 |
1.5KW×3 |
1.5KW×3 |
1.5KW ×3 |
2.2KW×3 |
2.2KW×3 |
||
Blower of nature wind |
0.75KW |
1.1KW |
1.1KW |
1.5KW |
1.5KW |
1.5KW |
2.2KW |
2.2KW |
||
Inking motor |
370W |
370W |
370W |
370W |
370W |
750W |
750W |
750W |
||
Master frequency converter |
3.7KW |
5.5KW |
5.5KW |
7.5KW |
7.5KW |
11KW |
11KW |
15KW |
||
Weight |
4950Kg |
5150Kg |
5350Kg |
5550Kg |
5800Kg |
6050Kg |
6300Kg |
6800Kg |
||
Master power |
29KW |
34KW |
39KW |
42KW |
47KW |
52KW |
60KW |
65KW |
||
Dimension |
5.0m |
5.0m |
5.0m |
5.0m |
5.0m |
5.0m |
5.0m |
5.0m |
||
1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
