CU conductors power line

Specifications

CU conductors Power line
GB/T 12706-2008
ISO9001-2008
Competive price
short lead time

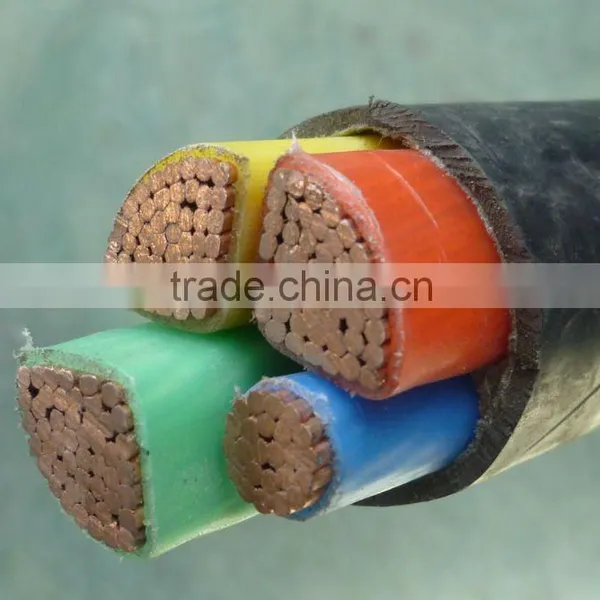

CU/XLPE/Stranded conductors/PVC Sheathed Power cable



1. XLPE insulated PVC sheathed power cable work under 0.6/1KV, with 50Hz AC, can be set in doors, in tunnels and conduits, underground, pipeline, building site etc.
2. Conductor: Copper or aluminium
3. Section area: 1mm2---- 500mm2
4. Core No.: 1, 2, 3, 4, 5, Three core +E core, three core +2 core, Four core +E core;
5. Insulation: XLPE
6. Sheath: PVC
7. Armour: Steel tape or  steel wire
8. Working temperature: 70oC
9. Installation temperature: 0oC
10. Bending radius: A, Common bending radius:
A. 20D (1 and 2cores)
B. 15D (3 cores)
C. 15D (2 cores with armour)
D.  12D (4, 5, 3+1, 4+1, 3+2 cores with armour)
D= outer diameter
B, Bending radius for the section which near the junction and connector:
A.  15D (1 and 2 cores)
B.  12D (3, 4, 5, 3+1, 4+1, 3+2 cores)
C. 12D (2 cores with armour)
D.  10D (3, 4, 5, 3+1, 4+1, 3+2 cores with armour)
11. A single-core armoured cable is only applied to D.C transmission system. If it is required to use in A.S transimission system, no-magnetic material shhoud be applied as armoured tayer.
12. They can be made into flame retardant and fireproof type.
13. OEM is acceptable.
