CU/XLPE/STA/High Votage Power CablePVC or XLPE insulation
copper conductor
PVC sheathed
CE & ISO Certificate

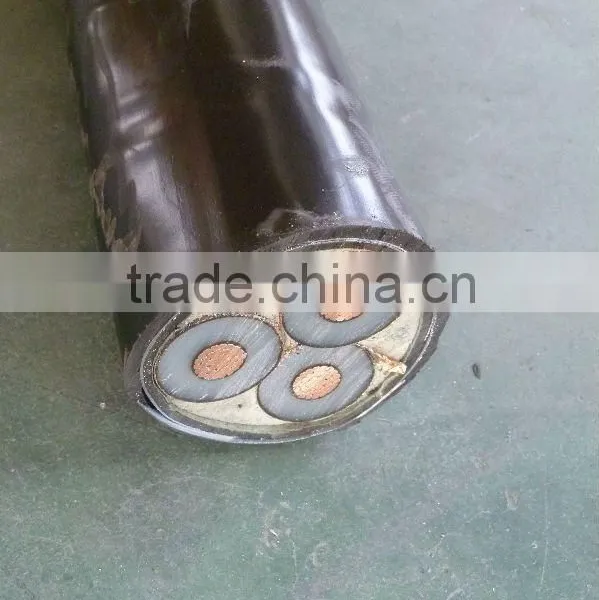

CU/XLPE/STA/High Votage Power Cable
1. XLPE power cable work under 8.7/15kv, with 50Hz AC, can be set in tunnels, underground, pipeline ,building site etc.
2. Conductor: copper or aluminium
3. Section area: 1mm2---- 400mm2
4. Core No.: 1,3
5. Insulation: XLPE
6. Sheath: PVC
7. Armour: Stainless steel tape/wire armoured
8. Operation temperature: ≤90oC
9. Installation temperature: ≥0oC
10. Bending radius: A, Common bending radius:
a. ≥20D (1core)
b. ≥15D (3 cores)
D= outer diameter
B, Bending radius for the section which near the junction and connector:
a. ≥15D (1 core)
b. ≥12D (3,cores)
11. For the armouring of single-core cables, non-magnetic materials shall be adopted.
12. They can be made into flame retardant and fireproof type.
13. They can be made according to customers' requirements.
