Help CenterCU/PVC/OS/STA Power Cable
Related Products
Specifications
CU/PVC/OS/STA power cableISO9001-2008;
GB/T12706-2008
competitive price
Short lead time

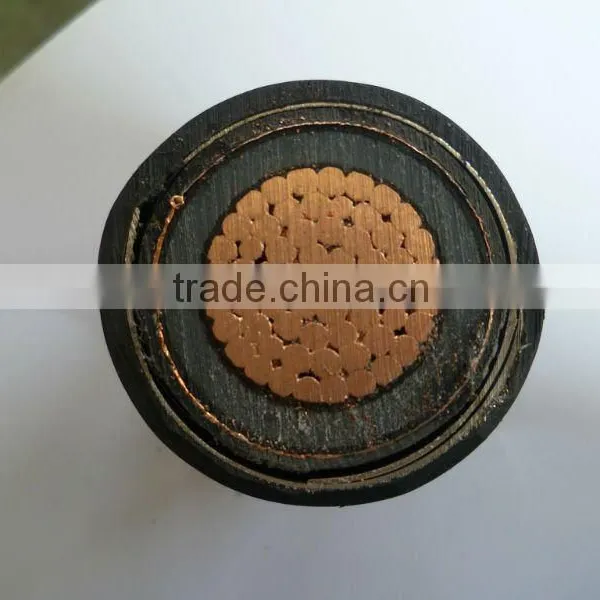

CU/PVC/OS/STA power cable
1.Specification: Copper Conductor PVC Insulated Copper tape shielded Steel tape armoured PVC sheathed Power Cable
2.Standard: GB12706-2008, IEC60502
3.Voltage: 0.6/1KV
4.Conductor: copper or aluminum conductor
5.Conductor screen: Copper tape
6.Insulation: PVC
7.Outer sheath: PVC
8.Package: Steel-wooden drum
9. Bending radius: A, Common bending radius:
a. ≥20D (1and 2cores)
b. ≥15D (3 cores)
c. ≥15D (2 cores with armour)
d. ≥12D (4,5,3+1,4+1,3+2 cores with armour)
D= outer diameter
B, Bending radius for the section which near the junction and connector:
a. ≥15D (1 and 2 cores)
b. ≥12D (3, 4,5,3+1,4+1,3+2 cores)
c. ≥12D (2 cores with armour)
d. ≥10D (3, 4, 5, 3+1,4+1,3+2 cores with armour)
10. OEM is acceptable
