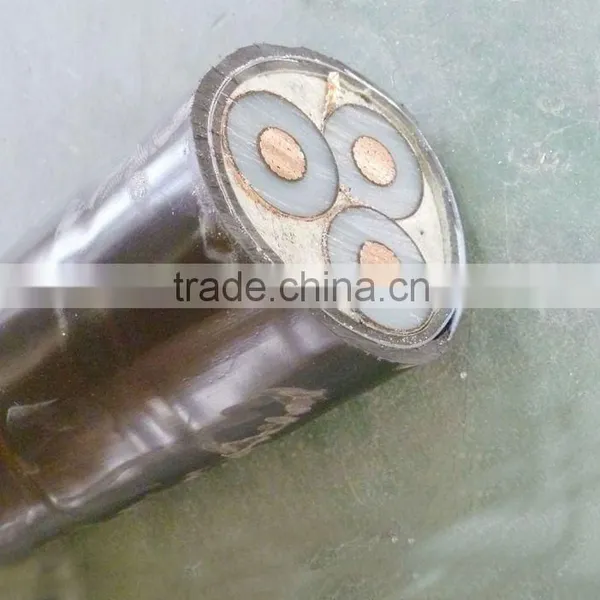

3 Core Medium Voltage Cable

Name: 3 Core Medium Voltage Cable
Brand: Yojin
SKU: 130259097

Negotiable MOQ: 100 Meters (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Yojin

Model Number:

3 core medium voltage cable

Contact Supplier Request Quote Chat Now

Shanghai Yongjin Cable Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Yojin

Model Number 3 core medium voltage cable

Insulation Material XLPE

Type High Voltage

Application Industrial

Conductor Material Copper

Jacket PVC

Specifications

3 core medium voltage cable
1. Copper
2. XLPE insulated
3.Steel tape armoured
4. Rated voltage: 26/35KV

3 core medium voltage cable

1. Copper
2. XLPE insulated
3.Steel tape armoured
4. Rated voltage: 26/35KV

5. Application: For laying in doors, in treches and in ducsts for fixed installation with capability of screening.

The product is suitable for use in power transmission and distribution lines with rated high voltage power frequency.

6. Standard According to GB/T12706-2008

7. XLPE insulated PVC sheathed power cable for medium voltage 8.7/15KV,

8. Conductor: Copper or aluminium
9. Section area: 25mm2---- 1200mm2
10. Core No.: one core, Three core
11. Insulation: XLPE or PVC
12. Sheath: PVC
13. Armour: Steel tape or steel wire
14. Working temperature: 90oC
15. Installation temperature: 0oC
16. Bending radius: A, Common bending radius:
A. 20D (1 and 2cores)
B. 15D (3 cores)
D= outer diameter
17. A single-core armoured cable is only applied to D.C transmission system. If it is required to use in A.S transimission system, no-magnetic material shhoud be applied as armoured tayer.
18. They can be made into flame retardant and fireproof type.
19. OEM is acceptable.
