Help CenterCHINA SUPPLYER High Voltage Power Cable
Related Products
Specifications
CHINA SUPPLYER high voltage power cableConductor:Copper Aluminium
Insulation:XLPE
Sheath:PVC
Standard:IEC,ISO9001-2000

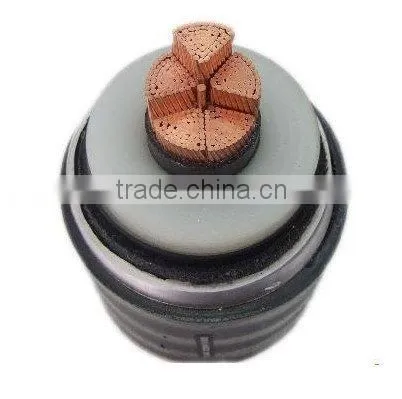

CHINA SUPPLYER high voltage power cable
1. XLPE power cable work rated voltage 8.7/15kv, 12/26KV, 26/35KV with 50Hz AC, can be set in tunnels, underground, pipeline ,building site etc.
2. Conductor: copper or aluminium
3. Section area: 1mm2---- 500mm2
4. Core No.: 1 or 3
5. Insulation: XLPE
6. Sheath: PVC
7. Armour: steel tape for 3 core Stainless steel tape for 3 core or not
8. Operation temperature: ≤90oC
9. Installation temperature: ≥0oC
10. Bending radius: A, Common bending radius:
a. ≥20D (1core)
b. ≥15D (3 cores)
D= outer diameter
B, Bending radius for the section which near the junction and connector:
a. ≥15D (1 core)
b. ≥12D (3 cores)
D= outer diameter
11. For the armouring of single-core cables, non-magnetic materials shall be adopted.
12. They can be made into flame retardant and fireproof type.
13. They can be made according to customers' requirements.
