Help CenterHigh Votage Power Cable
Related Products
Specifications
XLPE Power CableConductor:Copper
Insulation:XLPE
Sheath:PVC
Standard:IEC,ISO9001-2000

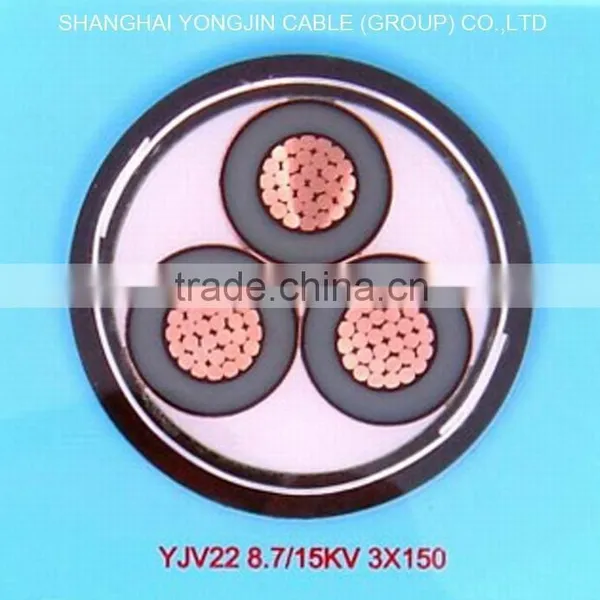

Hige Votage Power Cable
1. XLPE power cable work under 8.7/15kv, with 50Hz AC, can be set in tunnels, underground, pipeline ,building site etc.
2. Conductor: copper or aluminium
3. Section area: 1mm2---- 400mm2
4. Core No.: 1,3
5. Insulation: XLPE
6. Sheath: PVC
7. Armour: Stainless steel tape or not
8. Operation temperature: ≤90oC
9. Installation temperature: ≥0oC
10. Bending radius: A, Common bending radius:
a. ≥20D (1core)
b. ≥15D (3 cores)
D= outer diameter
B, Bending radius for the section which near the junction and connector:
a. ≥15D (1 core)
b. ≥12D (3,cores)
11. For the armouring of single-core cables, non-magnetic materials shall be adopted.
12. They can be made into flame retardant and fireproof type.
13. They can be made according to customers' requirements.
Shanghai Yongjin Cable (Group) Co., Ltd.
