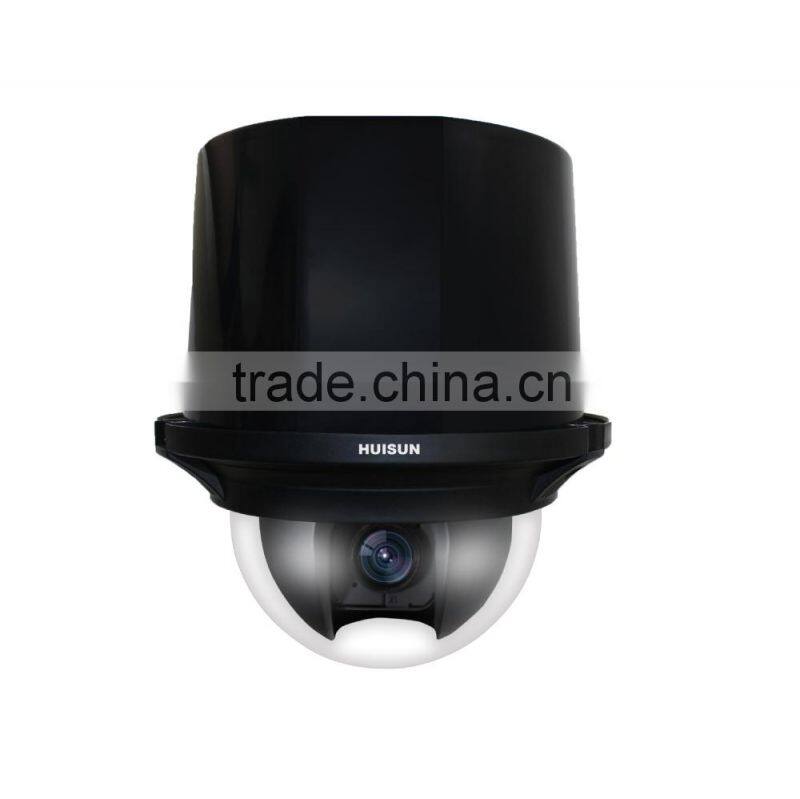

waterproof mini live camera with auto tracking
- 10000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
You May Like
-
Mini Indoor Embedded High Speed CCD Dome Security PTZ Camera
-
2 Megapixel High Speed Dome Indoor Ceiling-mounted Embedded PTZ IP Camera
-
2 Megapixel Indoor Ceiling-mounted Embedded PTZ IP Camera with auto motion tracking ptz camera
-
360 degree auto tracking PTZ laser speed dome analog camera
-
Auto tracking 1/3 sony 700tvl ir vandalproof capture dome camera
-
650TVL 30x opticaal zoom cctv ptz ir embedded speed dome
Product Details
Place of Origin | Guangdong, China | Brand Name | china-HUISUN | |
Model Number | DE226-W30D-W1 | Type | Analog Camera | |
Style | Dome Camera | Sensor | Other, CMOS, 1/3" SONY Exview HAD CCD | |
Technology | Infrared | Special Features | Waterproof / Weatherproof |
Product Description
Specifications
waterproof mini live camera with auto trackingIP66 Protection level
256 preset numbers
waterproof mini live camera with auto tracking
Product name | waterproof mini live camera with auto tracking |
Model | DE226-W30D-W1 |
Sensor | 1/3" SONY Exview HAD CCD |
Effective pixels | 650 tvl |
Zoom | 30xOptical zoom |
Focus length | F=3.9~117mm |
communication protocol | VISCA,:9600bps PELCO-D, |
Day/night mode | Automatic/multicolour/monochroma |
Focus mode | Automatic/manual |
S/N | > 52dB |
BLC | Off/ON |
White banlance | Automatic/manual |
Electronic shutter | no |
AGC | Auto/manual |
Min illumination | Multi-color:0.1lux/monochtome0.1lux |
Wide dynamic range | no |
Camera | |
Pan speed | Pan speed 0.01°/s~360 °/S ,speed is settable, pan preset speed360 °/S |
Tilt speed | Tilt speed 0.01°/s~120°/s,speed is settable,pan preset speed120 °/S |
Rotation | Pan :0~120° continuous rotation tilt:-10~90° auto flip |
Preset | 256 preset (chinese tilt) |
Auto scan | 8 groups, settable boundaries and scan speed |
Auto cruise | 8 groups each with 32 presets with settable time interval |
Pattern tour | 4 groups each with 500 instructions |
Video analysis | support |
Auto track | no |
Packaged structure with | no |
OSD menu | Chinese and English |
Wiper | yes |
Power box | optional |
Heat dispersion | Out Cool Air Circulation to Sink the Heat Technology |
Supply voltage | DC12V±10% |
Levels of protection | IP66/Level2 lightness protection,4000w prvent thunderbolt surges design |
Working temperature | -35°C - + 55 °C |
Working humidity | <90% No condensation |
Consumption | Max 35W |
Weight | 4.8 kg |
Accessory | Wall -mount bracket DC 12 Power |
l First Patent of Video Analysis Light-adjustment Technology .(Patent No.201110089768.7)
l First Patent of Builtin Heat Sinking (Patent No.201120332664.X). Water and dust proof with high reliability.
l Wipers equipped to ensure a clear and crispy video image(Optional configuration)
l Intelligent video analysis capabilities to detect the designated area.
l 5 inch alloy aluminum construction design for housing. (patent).
l OSD menu in Chinese and English.
l Modular circuit design ,support the self-testing of the core module.
l Support 3D positioning function(with the specified master device).
l Built-in precision RTC clock for timing function.
l The dome program can be upgraded online remotely.
How to intall

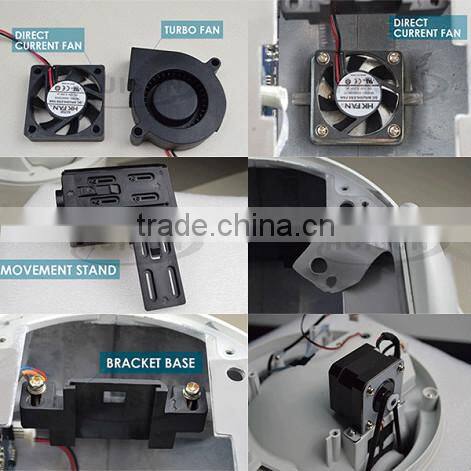

Inner detail
Core feature
Shipping
.We have strong cooperation with UPS, DHL, FEDEX, TNT, EMS , China Air Post.
2.You can also choose your own shipping forwarder.
We have rich OEM experience. If you are our customers, you will be offered
1. Free repair within one year after the shipment of products from us.
2. Replacement within 30 days after the shipment of products from us due to products' problems.
3. We can print your logo and stick your model No.on the cameras.
4. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
5. Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
6.All goods will be inspected and tested before shipment.
7Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Trademanager or Email.It will be responded within 24 hours.
