Home > Products > Embedded speed dome > Infrared 100 m IP66 Auto Tracking HD Mini Dome Camera

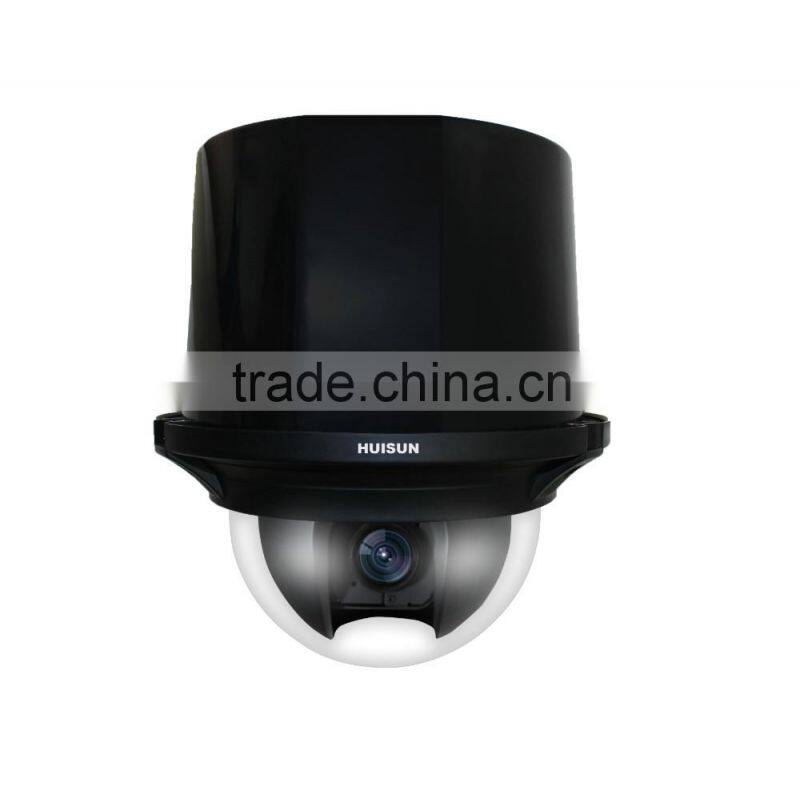

Infrared 100 m IP66 Auto Tracking HD Mini Dome Camera
- shenzhen
- T/T Credit Card
You May Like
-
Waterproof Auto Tracking New Design Cctv Mini Dome Camera Housing ,bus, Car
-
Auto Tracking 1080P Water Proof Camera 360 ip Camera
-
Full hd Sdi Ptz Panasonic Camera Mini Video Camera in CCTV CAMERA
-
256 Preset Numbers Mini Camera ip hd High Quality PTZ Camera
-
2 Megapixel 1080p Indoor Embedded PTZ IP Camera
-
Indoor Embedded Auto Tracing PTZ IP Camera
Product Details
| Place of Origin | Guangdong, China | Brand Name | China-HUISUN | |
| Model Number | DE226NT-WN20IA-W1 | Type | Digital Camera | |
| Style | Dome Camera | Sensor | CMOS | |
| Technology | NetWork | Special Features | Waterproof / Weatherproof |
Product Description
Specifications
Infrared 100 m IP66 auto tracking HD mini dome cameraIP66 Protection level
256 preset numbers
with auto track
Infrared 100 m IP66 auto tracking HD mini dome camera
Main funcation Infrared 100 m IP66 auto tracking HD mini dome camera
1First patent of built in heat sinking (Patent No.201120332664.X). Water and dust proof with high reliability.
2.First patent of video Analysis Light-adjustment Technology.
3.The Highly power array LEDs .
4.Intelligent video analysis capabilities to detect the designated area.
5.5 inch alloy aluminum construction design for housing. (patent).
6.OSD menu in Chinese and English
7.Modular circuit design ,support the selftesting of the core module.
8.Support 3D positioning functionwith the specified master device)
9.The dome program can be upgraded online remotely.
Specification:
Product name | Infrared 100 m IP66 auto tracking HD mini dome camera |
Model | DE226NT-WN20IA-W1 |
Sensor | 1/3" Panasonic CMOS |
Effective pixels | 2 Mega Pixel |
Zoom | Optical zoom x20 Digital zoomx32 Zoom |
Focus length | f = 4.7 mm ~ 94.0 mm |
Communication protocol | VISCA / Pelco-D / Pelco- P / Update |
Day/night mode | Auto / Day / Night / Ext |
Focus mode | Mode / Distance / Lens Refresh / E.Zoom |
S/N | > 50dB |
BLC | OFF / WDR / BLC |
White banlance | AUTO / One Push / Manual / Indoor / Outdoor |
Electronic shutter | Off / Max x2 ~ x4 |
AGC | Off / On |
Video input | Connector |
Pow | 9V to 15V DC |
| |
Dome | |
Pan speed | Pan speed 0.01°/s~360°/s,speed is settable, pan preset speed360°/S |
Tilt speed | Tilt speed 0.01°/s~120,speed is settable,pan preset speed120 °/S |
Rotation | Pan :0~360 ° continuous rotation tilt:-10~90° auto flip |
Preset | 256 preset (chinese tilt) |
Auto scan | 8 groups, settable boundaries and scan speed |
Auto cruise | 8 groups each with 32 presets with settable time interval |
Pattern tour | 4 groups each with 500 instructions |
Video analysis | support |
Auto track | yes |
Packaged structure with | no |
OSD menu | Chinese and English |
Wiper | yes |
Power box | optional |
Heat dispersion | Out Cool Air Circulation to Sink the Heat Technology |
Supply voltage | DC12V±10% |
Levels of protection | IP66/Level2 lightness protection,4000w prvent thunderbolt surges design |
Working temperature | -35°C - + 55 °C |
Working humidity | <90% No condensation |
Consumption | Max 35W |
Weight | 4.8 kg |
Accessory | Wall -mount bracket DC 12 Power |
Appearance Design Detail :

How to install
Inner detail
Core feature
Shipping of Infrared 100 m IP66 auto tracking HD mini dome camera
1.We have strong cooperation with UPS, DHL, FEDEX, TNT, EMS , China Air Post.
2.You can also choose your own shipping forwarder
We have rich OEM experience. If you are our customers, you will be offered:
1. Free repair within one year after the shipment of products from us.
2. Replacement within 30 days after the shipment of products from us due to products' problems.
3. We can print your logo and stick your model No.on the cameras.
4. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
5. Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
6.All goods will be inspected and tested before shipment.
7Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Trademanager or Email.It will be responded within 24 hours.
Contact Us
- Shenzhen HUISUN Technology Co., Ltd.
- Contact nameLucy Zhai Chat Now
- Phone86-755-28462266
- Address4F. No.8 yuxiang industrial park ,jixia,buji town,longgang, Shenzhen, Guangdong
