2015 CCD Sensor Ptz Cctv Embeded High Speed Dome Camera Ptz
- Shenzhen
- T/T Credit Card
You May Like
-
650 TVL 30x Optical Zoom Cctv Camera Waterpoof Auto Tracking Ptz Camera
-
Best Price Mini Embedded Security PTZ Cctv Analog Camera
-
1080p 2 Megapixel Full HD Ceiling-mounted Embedded PTZ hd Sdi Camera
-
30X 650TVL 100m ir Night Vision Auto Tracking PTZ Laser Speed Dome Analog Camera
-
20X 2 Megapixel 1080p Indoor Embedded PTZ hd Sdi Camera
-
20X 1080P Waterproof Embedded Auto Tracing PTZ hd Sdi Camera
Product Details
| Place of Origin | Guangdong, China | Brand Name | Huisun | |
| Model Number | DE226-W30D-W1 | Type | Digital Camera | |
| Style | Dome Camera | Sensor | CCD | |
| Technology | Infrared | Special Features | Waterproof / Weatherproof |
Product Description

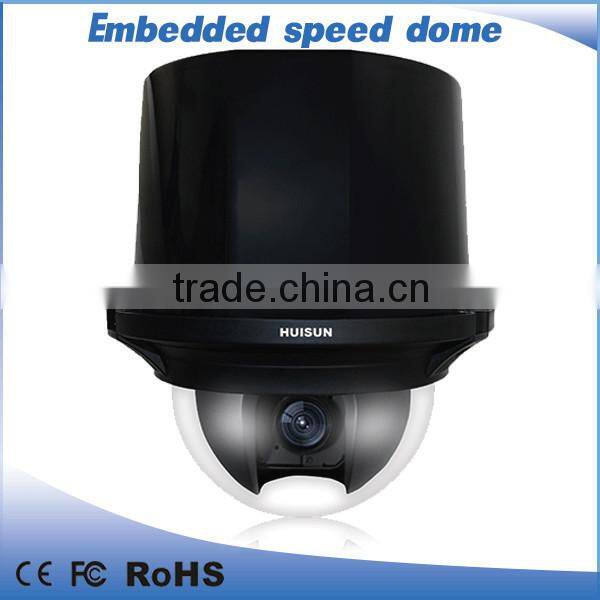

2015 CCD Sensor ptz cctv embeded high speed dome camera ptz
Application area
Basic parameters
Sensor | 1/3” CCD |
Effective pixels | 650TVL |
Zoom | 30xOptical zoom |
Focus length | F=3.9~117mm |
communication protocol | VISCA,:9600bps PELCO-D, |
Day/night mode | Automatic/multicolour/monochroma |
Focus mode | Automatic/manual |
S/N | > 52dB |
BLC | Off/ON |
White banlance | Automatic/manual |
Electronic shutter | no |
AGC | Auto/manual |
Min illumination | Multi-color:0.1lux/monochtome0.1lux |
Wide dynamic range | no |
Camera |
|
Pan speed | Pan speed 0.01°/s~360°/s,speed is settable, pan preset speed360°/S |
Tilt speed | Tilt speed 0.01°/s~120°/s,speed is settable,pan preset speed120°/S |
Rotation | Pan :0~120° continuous rotation tilt:-10~90° auto flip |
Preset | 256 preset (chinese tilt) |
Auto scan | 8 groups, settable boundaries and scan speed |
Auto cruise | 8 groups each with 32 presets with settable time interval |
Pattern tour | 4 groups each with 500 instructions |
Video analysis | support |
Auto track | no |
OSD menu | Chinese and English |
Wiper | yes |
Power box | optional |
Heat dispersion | Out Cool Air Circulation to Sink the Heat Technology |
Supply voltage | DC12V±10% |
Levels of protection | IP66/Level2 lightness protection,4000w prvent thunderbolt surges design |
Working temperature | -35°C - + 55 °C |
Working humidity | <90% No condensation |
Consumption | Max 35W |
Weight | 4.8 kg |
Accessory | Wall -mount bracket DC 12 Power |
Function show
Factory show
Exhibition
Shippment
Dear My friends:
Shenzhen Huisun Technology Co.,Ltd, as a high-techenterprise, is based in the Zao Hekeng Industrial Park, Buji district. Engaging in R&D, production and marketing of high-quality
andsurveillance product, Huisun specialized in intelligent IR Speed Dome.
Our business principle is:No service,No order,no customer success,no we success.we will be good partner with each other for a long-term relationship
If you are interests,Pls feel free kindly add my skype: co1
Best Regards.
Coco
Mobile:0086 13267182460
