700TVL 20x Optical Zoom Motorized Auto Track Embedded PTZ Camera
- ShenZhen
- T/T Credit Card
You May Like
-
2015 CCD Sensor Ptz Cctv Embeded High Speed Dome Camera Ptz
-
650 TVL 30x Optical Zoom Cctv Camera Waterpoof Auto Tracking Ptz Camera
-
Best Price Mini Embedded Security PTZ Cctv Analog Camera
-
1080p 2 Megapixel Full HD Ceiling-mounted Embedded PTZ hd Sdi Camera
-
30X 650TVL 100m ir Night Vision Auto Tracking PTZ Laser Speed Dome Analog Camera
-
20X 2 Megapixel 1080p Indoor Embedded PTZ hd Sdi Camera
Product Details
| Place of Origin | Guangdong, China | Brand Name | Huisun | |
| Model Number | DE226T-W30D-W1 | Type | Analog Camera | |
| Style | Dome Camera | Sensor | CCD | |
| Technology | Pan / Tilt / Zoom | Special Features | Waterproof / Weatherproof |
Product Description

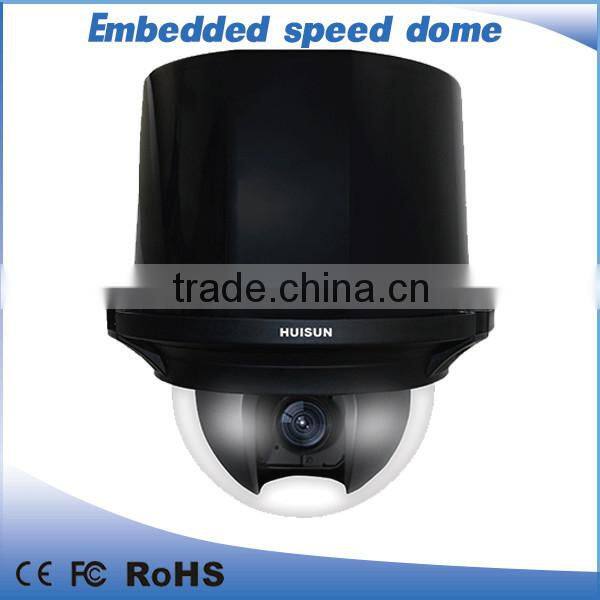

700TVL 20x Optical Zoom Motorized Auto Track Embedded PTZ Camera
Features
•1/3" SONY Exview HAD CCD Sensor 20x Optical Zoom 700TVL Embedded PTZ Camera
• Motion detection and Auto Tracking Technology
• Stable Operation Vertical &Horizonal Rotation Motors
• Popular Plastic Upper Cover Design
• IP66 Certified ensures the maximum dust and water protection
Model | DE226FT-W30D-W1 |
Camera |
|
Image Sensor | 1/3" SONY Exview HAD CCD |
Resolution | 700TVL |
Lens | F/1.4 f=3.9-117mm |
Optical Zoom | 30x |
Minimum Illumination | Color:0.2lux B/W:0.02lux |
White Balance | Auto/Manual |
Focus | Auto/Manual |
Day/Night | ICR(Auto/Day/Night) |
Signal/Noise Ratio | >52dB |
Video Output | 1.0V [p-p] /75 , NTSC (or PAL) Composite, BNC |
Dome | |
Pan Range | 0~360° Continuous |
Pan Speed | 0.01º~360º/s |
Tilt Speed | 0.01º~120º/s |
Tilt Range | -10~90º |
Preset Number | 256 |
Auto Cruise | 8 Routes |
Pattern | 4 Routes |
Auto Track | YES |
Auto Scan | 8 Routes, Settable Boundaries and Speed |
Video Analysis | YES |
OSD Menu | PTZ, Temp and Status Information Display |
Privacy Zone | On / Off Selectable (Up to 8 areas Settings) |
Protocol | Pelco-D |
General |
|
Power Consumption | <38W |
Power Supply | DC 12V |
Ingress Protection | IP66 |
Working Temperature | Outdoor:-35º~ +55º |
Operation Humidity | <95% Non Condensing |
Mount Type | Ceiling |
Inner Details
Core Features
Company Information
Certificate
Huisun Exhibition

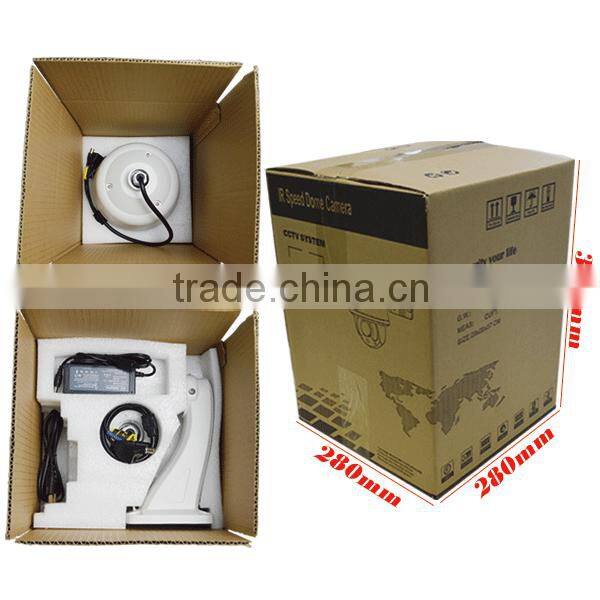

Packaging:Two Inner Pieces in One Carton
Payment terms
We accept T/T by bank transfer, PayPal, Escrow, Western Union.
Shipping
We have strong cooperation with DHL, FedEx, UPS, TNT, EMS, China post office.
You can also choose your own forwarder
Shipping:Generally 5 Working Days
Our Service
1. All goods will be inspected and tested before shipment.One Year Quality Guarantee .
2. 24/7 Technical Support .Any question, please kindly contact Andy.
3. 5 Years OEM and ODM Service to meet your needs.
