China High Speed Metal Coil Slitting Machine Line
- Qingdao
- T/T Credit Card
You May Like
-
Cold and Hot Rolled Steel Strip Slitting Machine Line
-
High Speed Steel Coil Cutting to Length And Slitting Line
-
Thick Plate Hot Rolled Steel Coil Slitting And Shearing Line
-
China Mulfi-functional Steel Coil Slitting Line And Cut To Length Line
-
China Factory Price Widely Used Steel Coil Slitting Machines
-
HR/CR Steel Sheet Coil Slitting Machine Line
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Jisheng | Model Number | HJX series | |
| Voltage | 380V | Rated Power | upon actual model | |
| Dimension(L*W*H) | upon actual model | Weight | upon actual model | |
| Certification | ISO9001,CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
china high speed Metal coil Slitting Machine line
china high speed Metal coil Slitting Machine line is for material 3mm thick,max.1600mm width of coil, with speed 180m/min,cutting strips 30 pieces.This line is the best choice for coil procssing center user .The machine consists of coil car ,uncoiler ,straightener ,loop Ⅰ,slitting machine,scrap winder, loop Ⅱ,belt bridlle ,recoiler ,asisting support ,exit coil car ,hydraulic system ,electrical system and so on.
The whole line is controlled by PLC with computer display. We mainly apply computer-control system of brands Mitsubishi, Yaskawa, Siemens, Baumueller, Delta, and Schneider. The information of order amount, cutting strips and speed can be input to the PLC systems. KJS180 series use belt briddle ,it is higher cost performance for customer with precision surface requirement.
Technical Process:
Coil car—double-head uncoiling—coil-head leading, shoveling, feeding—coil-head cutting— rectify deviation—slitting—side scrap winding—loop—material pre-dividing, tension—uncoiling— unloading car—hydraulic control—electrical control
Main Technical Parameters:
model | SL-6 | SL-8 | SL-12 | SL-16 | SL-20 |
plate thickness(mm) | 0.15-6.0 | 2.0-8.0 | 3.0-12 | 4.0-16 | 5.0-20 |
coil width(mm) | 500-2000 | 500-2000 | 500-2500 | 500-2500 | 500-2500 |
working speed(m/min) | 60 | 48 | 40 | 30 | 25 |
coil weight(T) | 15/20/35 | 15/20/35 | 20/35 | 20/35 | 20/35 |
slitting quantity | 20 | 15 | 12 | 10 | 8 |
slitting precision(mm) | <±0.3 | <±0.3 | <±0.5 | <±0.5 | <±0.5 |
slitting | <5% | <5% | <5% | <5% | <5% |
recoiling staggered-floor(mm) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
recoiling turriform(mm) | ≤2 | ≤2 | ≤2 | ≤2 | ≤2 |
Main Components:
1. coil car
2. decoiler
3. peeler entry table
4. Straightener.
5. Shearing machine
6. loop table
7. coil guide and pinch roll
8. Slitting machine
9. scrap winder (both sides)
10. Loop table
11. separator and tension table
12. Deflector roll and exit threading table
13. Recoiler
14. Over arm separator in the recoiler.
15. Exit coil car for recoiler
16. Hydraulic system
17. pneumatic system
18. electrical control system

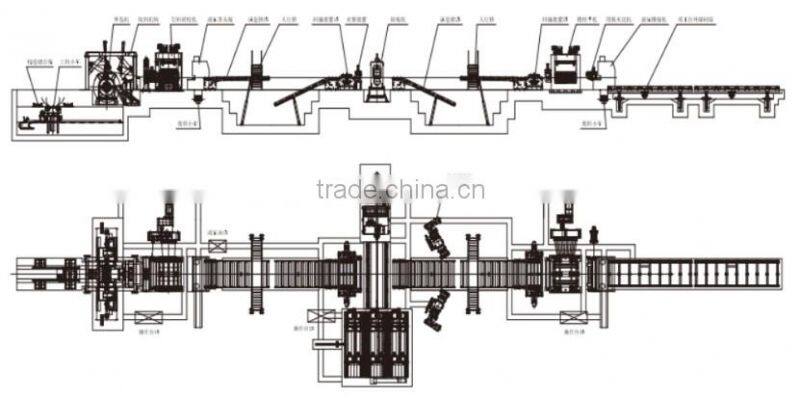

Layout Drawing:
Working Videos:
Steel coil cut to length line:
/watch?v=tuBvJV_K3Yg
/watch?v=D0z2REqOglw
Steel coil slitting line:
/watch?v=wz-QEdJ1nuI
/watch?v=d5qv3z3Greo
/watch?v=w67ofWSjqGQ
Steel coil cutting to length and slitting combined line:
/watch?v=qedPWxbnj-Q
/watch?v=u2sHTzGwf6o
Technical Achievements:
1.patent number:ZL 2011 2 0158833.2,Leveling mechanism of leveling machine
2.patent number:ZL 2011 2 0158753.7,quick change set for slitting machine
3.patent number:ZL 2010 2 0148106.3,In situ switching device for double slitting machine
4.patent number:ZL 2010 2 0148090.6,the guidance device for striping discharge of slitting machine
5.patent number:ZL 2012 2 0217074.7,double location shear plate for lifting pallet device
6. patent number:ZL 2012 2 0217069.6,pressure separation security agencies of recoiling machine
7.patent number:ZL 2012 2 0217323.2,Plate shear curving device for slitting machine
Packaging:china high speed Metal coil Slitting Machine line packaged in standard export plywood case
Delivery:china high speed Metal coil Slitting Machine line delivered in 100 working days after payment.
Warranty:
china high speed Metal coil Slitting Machine line One year warranty for the whole machine;
After-sales Service
1.Free operation video for installation,any technical problems can be well settled via email,telphone and other online communication tools.
2.Oversea service by our engineers can be provided,foreign customers are welcome to our factory for free on-site traning on installation and operation.
3.Free upgradion of machine technical support.
4.Free technical recommendation and solution by experienced engineers
We,Jinan Jisheng CNC Equipment Co.,Ltd,are professional manufacturer and exporter specializing in R&D,production and sales of steel coil processing machines.Our products include steel coil cut to legnth line,aluminum coil slitting line,cutting to length & slitting combined line,leveling machine,etc.
Dedicated to the principle of quality always comes first,now we can provide high quality CNC machines for customers home and abroad,which have been exported to more than 20 countries worldwide.
Certificates:
Sakes Network:
Contact Detail:
Eric Cha
Tel:+86-531-88773434
Mobile:+86-13046001147
eric5161 at
Skype:chatong0531
whatsapp: +86-13046001147
