WL- UVL Series BUS Wheelchair Lift Load 250kg With CE Certificate
US$ 20 - 4,000
/ Set
1 Set(Min. Order)
- Shanghai
- T/T Credit Card
You May Like
-
Vehicle Scissor Wheelchair Lifts Power Wheelchair Lifts for Bus With CE Certificate
-
WL-STEP-800 Bus Wheelchair Lift for the Disabled With CE Certificate
-
WL-STEP Series Power Wheelchair Lift for Bus
-
WL-STEP Series Powerful Wheelchair Lifting Hoist for Bus
-
CE Vehicle Wheelchair Lifts Power Wheelchair Lifts
-
Xinder Brand Wheelchair Lifts Power Wheelchair Lifts for Bus and Tour Bus
Product Details
| Design | Two Post | Type | One Cylinder Hydraulic Lift | |
| Certification | CE | Lifting Capacity | 350kg | |
| Lifting Height(mm) | 600-1100mm | Overall Width(mm) | 760mm | |
| Place of Origin | Jiangsu, China | Brand Name | xinder | |
| Model Number | WL-UVL (under floor), WL-UVL (under floor) | Warranty | 12 Months |
Product Description

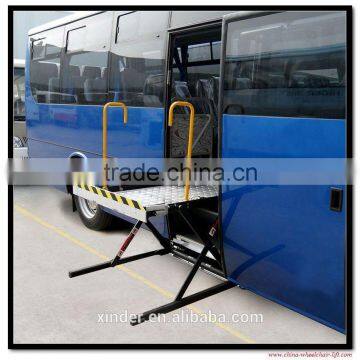

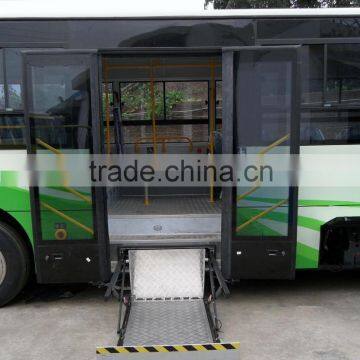

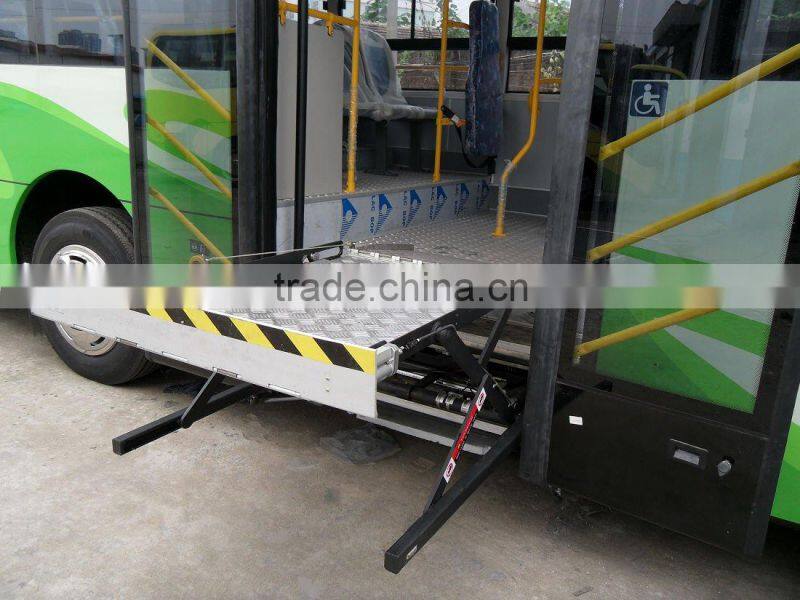

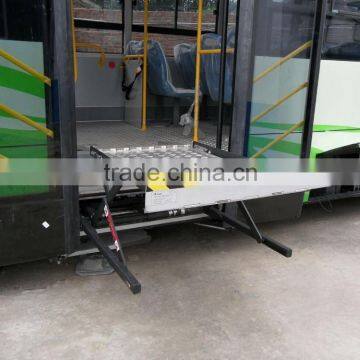

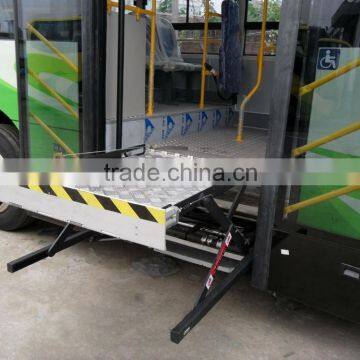

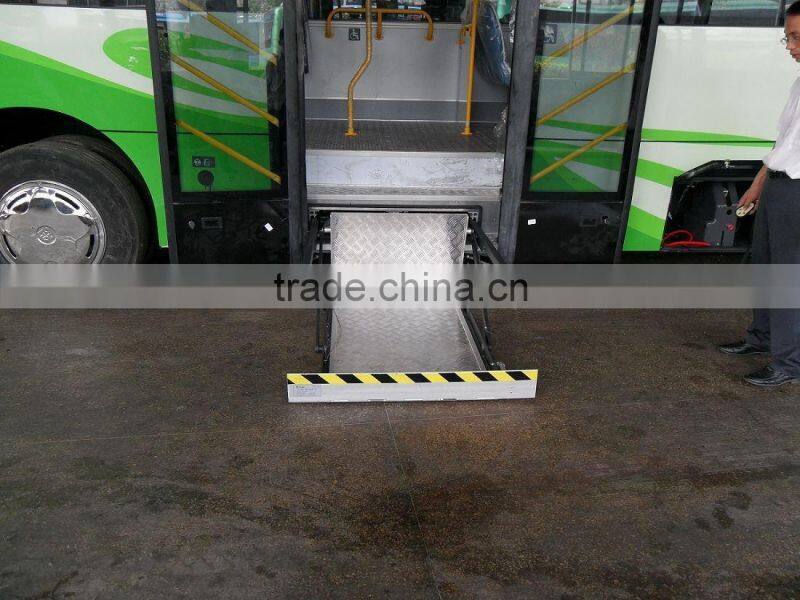

WL- UVL Series Wheelchair Lift for bus offers an innovative solution to your mobility. With the lift mounted underneath the vehicle, it remains out of sight and out of your way until needed. This means easy access, a clear side view and maximum interior space.
The UVL Series lifts are electric in operation for both the in/out cycle and the outboard roll stop. The up/down cycle is hydraulic in operation. All functions are controlled by the standard hand-held control or the optional remote control.
The UVL Series is designed for installation at the side door of domestic full-size vans, buses and coaches. Installation of the UVL requires modification of the vehicle - consult your Dealer for details.
Advantages:
1.Super thin compact design
2.Electric outboard rollstop and automatic inboard rollstop
3.No-skid aluminum honeycomb platform
4.Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs
5.Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.
6.Side handrails (Option), for increased comfort and security
7.Sound and flash light alarm during operation of platform
8.Built in manual backup system
Technical specification
Max lifting load : 350 Kg
Max lifting height: 700 -1600mm
Voltage: 12 / 24 V
Length & width of platform: 1220 * 751 mm
Main dimension parameter
Model | WL-UVL-700 | WL-UVL-700-S | WL-UVL-700(II) |
Platform size | 751*1220 | 751*1220 | 751*1220 |
Max. up stroke | 505 | 505 | 430 |
Max. down stroke | 500 | 500 | 540 |
Length required to install lift | 1940 | 1812 | 1867 |
Height of lift rear end | 133 | 133 | 133 |
Height of lift front end | 167 | 167 | 167 |
Distance between guide frame and up fitting surface | 53 | 53 | 53 |
Distance between front fitting surface and spindle of main arm | 347 | 75 | 145 |

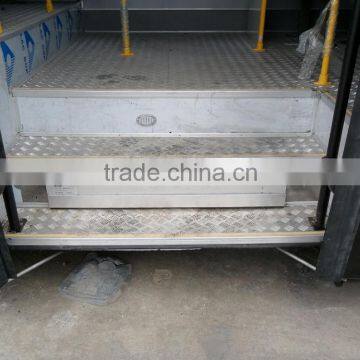

Installation position | for the bus with three steps; installed in step | for the bus with two steps; installed under chassis | for coach or tourist bus; installed in the luggage |
