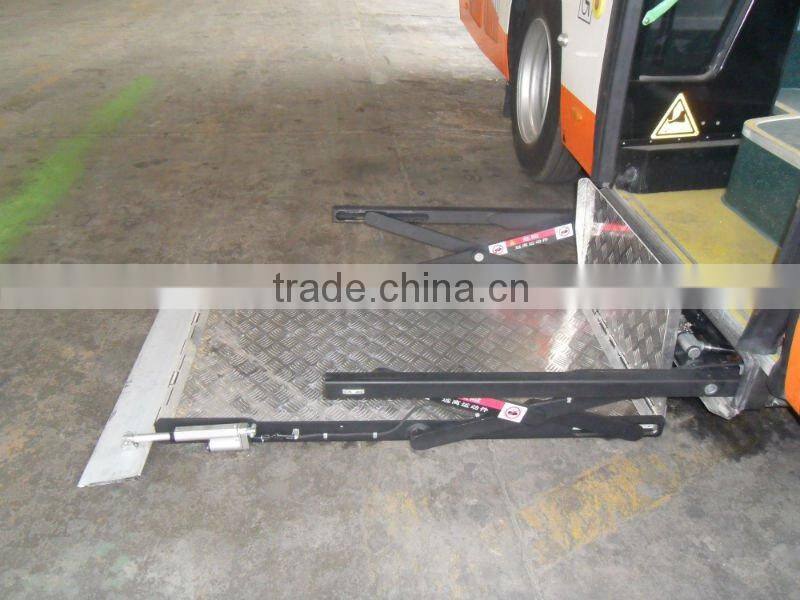

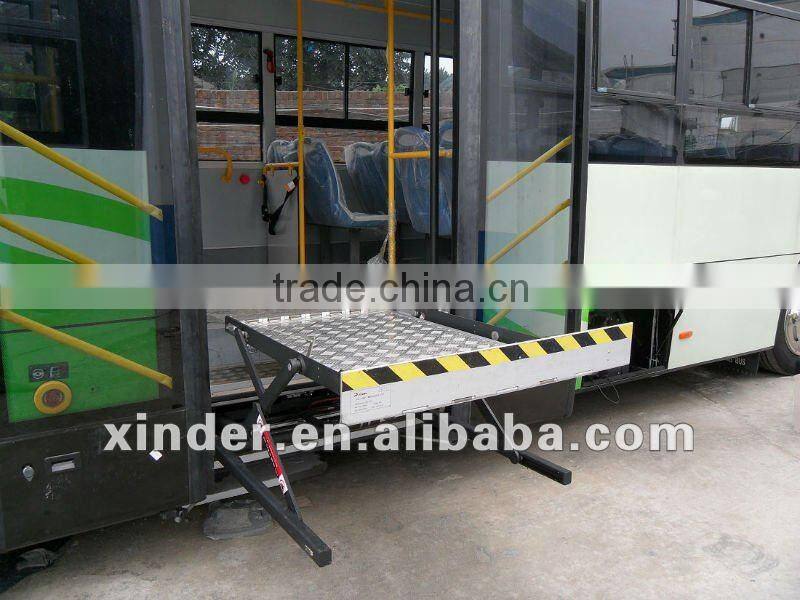

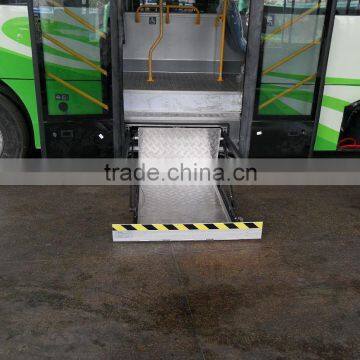

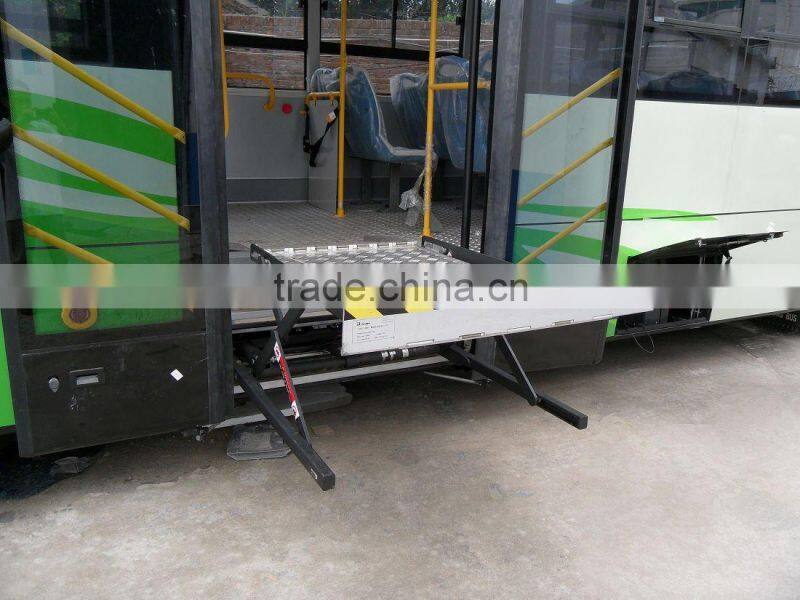

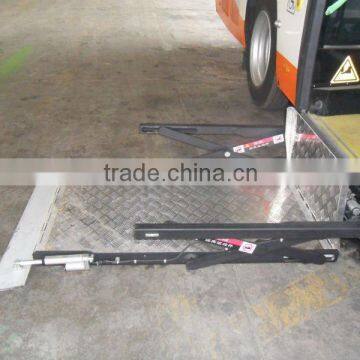

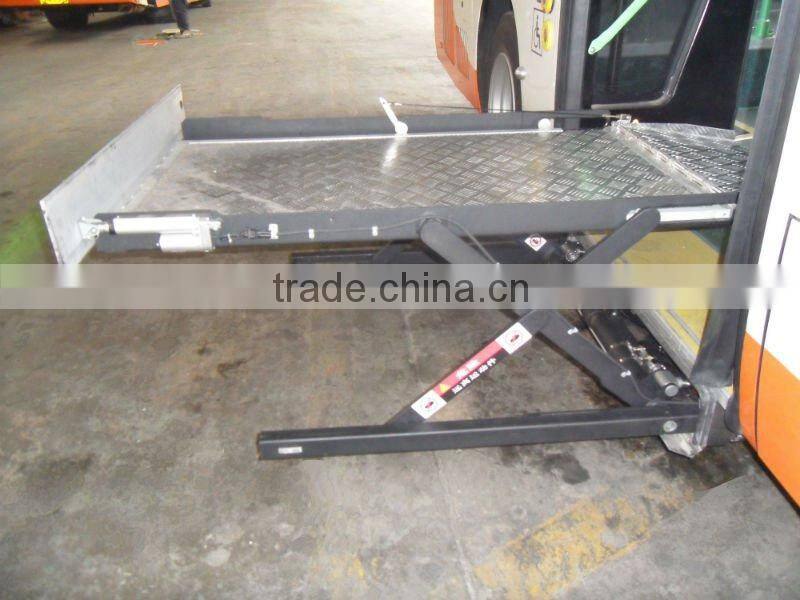

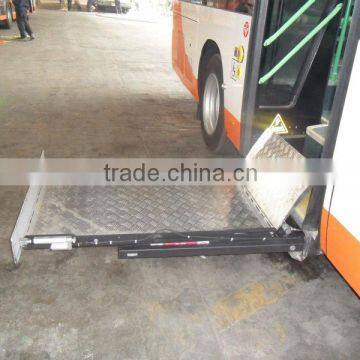

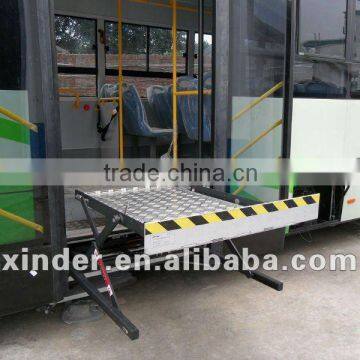

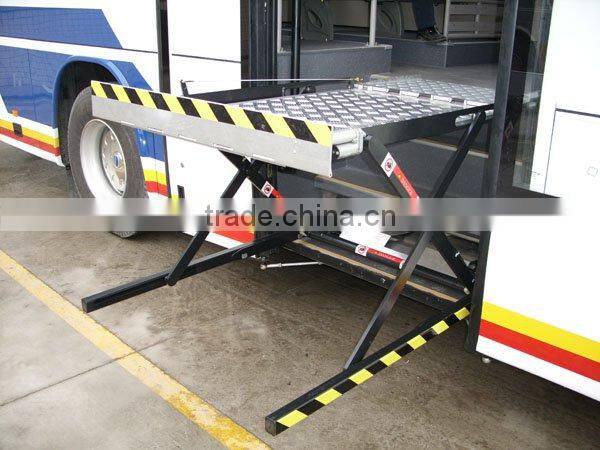

Power Wheelchair Lift for Bus
- Shanghai
- Credit Card
You May Like
Product Details
| Design | Scissor | Type | One Cylinder Hydraulic Lift | |
| Certification | CE | Lifting Capacity | 350KG | |
| Lifting Height(mm) | MAX 1600m | Overall Width(mm) | 760mm | |
| Place of Origin | Jiangsu, China | Brand Name | XINDER | |
| Model Number | WL-UVL-700 | Warranty | 12 Months |
Product Description
- Super thin compact design
- Electric outboard rollstop and automatic inboard rollstop
- No-skid aluminum honeycomb platform
- Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs
- Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.
- Side handrails (Option), for increased comfort and security
- Sound and flash light alarm during operation of platform
- Built in manual backup system
- Main dimension parameter
- Technical specification
- Max lifting load 350 Kg
- Max lifting height 700 -1400mm
- Voltage 12 / 24 V
- Length & width of platform: 1220 * 751 mm
Model | WL-UVL-700 | WL-UVL-700-S | WL-UVL-700(II) |
Platform size | 751*1220 | 751*1220 | 751*1220 |
Max. up stroke | 505 | 505 | 430 |
Max. down stroke | 500 | 500 | 540 |
Length required to install lift | 1940 | 1812 | 1867 |
Height of lift rear end | 133 | 133 | 133 |
Height of lift front end | 167 | 167 | 167 |
Distance between guide frame and up fitting surface | 53 | 53 | 53 |
Distance between front fitting surface and spindle of main arm | 347 | 75 | 145 |
Installation position | for the bus with three steps; installed in step | for the bus with two steps; installed under chassis | for coach or tourist bus; installed in the luggage |
