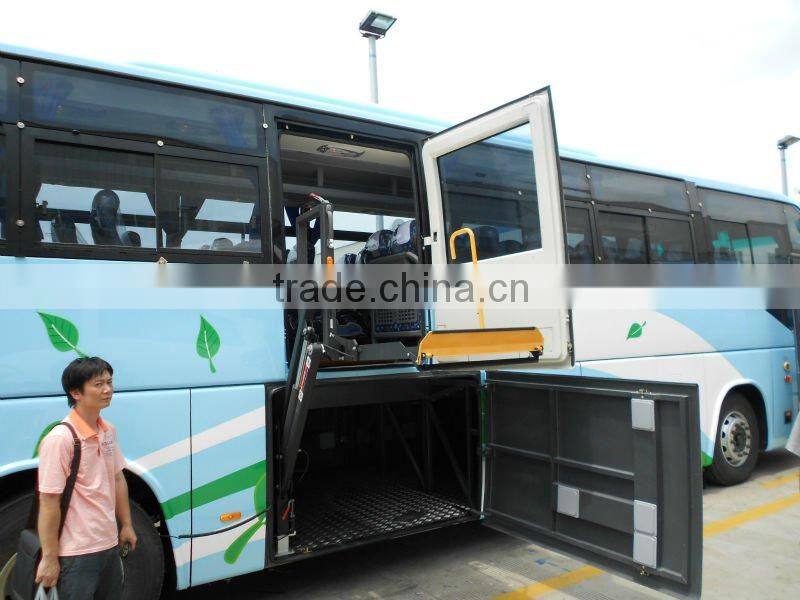

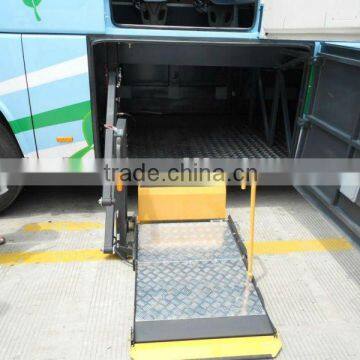

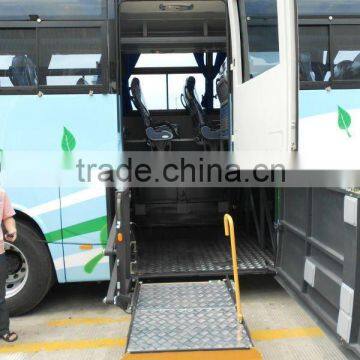

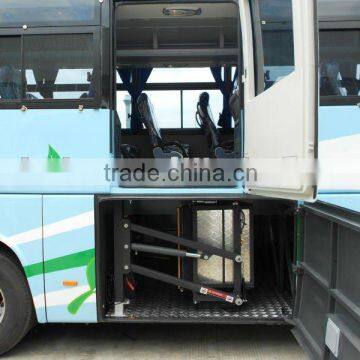

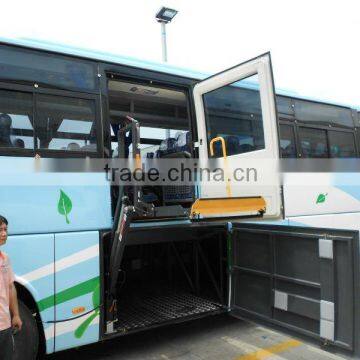

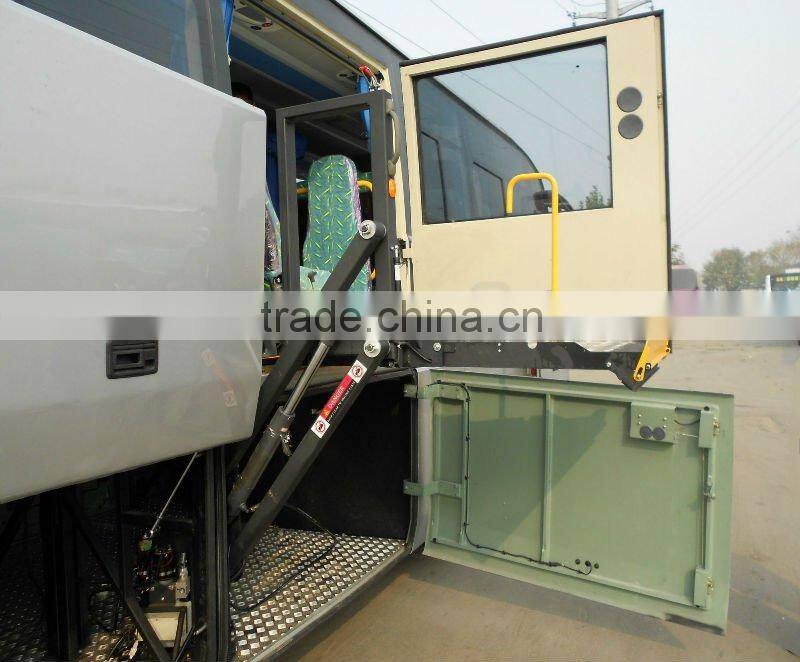

WL-T Rotating Wheelchair Lift for Tourist Bus

WL-T series rotating wheelchair lift is developed on the basis of our existiing UVL wheelchair lift, mainly take the limited luggage space into consideration, save space to adopt rotating device to achieve it.

WL-T rotating series wheelchair lfit is composing of rotating device, hydraulic raising mechanism, and platform.

Rotating device is used to control the rotation of the wheelchair lift. It rotates the wheelchair lift vertical to the door so as to let the passenger in and out and also maintain parallel to the door when the wheelchair is stowed and rotated to the door.

Hydraulic raising device adopt hydro cylinder and USA hydraulic station to achieve the liberation of the arm of the wheelchair lift in vertical, so as to make the lifting device to come to the lifting height of the platform.

There is inboard and outboard roll stop, and the wheelchair is placed on the platform. Make the wheelchair on the platform with front and rear roll stop, then enter the inside of the vehicle. Meanwhile, the front and rear roll stop can protect the wheelchair when the platform is up and down.

It must be operated by trained sever and driver.

This manual contains main technical specifications of wheelchair lift, installation instructions; maintenance and repair instructions; troubleshooting guide; list of easy damaged part. It is important to user safety that lift operator(s) be completely familiar with the operating instructions. Once the lift is installed, it is very important that the lift be properly maintained by following the Xinder recommended cleaning, lubrication, and inspection instructions.

If there are questions about this manual, or additional copies are needed, please contact Xinde-Tech.
