Help CenterMulti Gas Monitor
Related Products
Specifications
1)Multi gas monitor:2)Easy Gas Leak Detection/Monitoring
3).Multi point Sensors Utility.
4)Audio Visual Alarm And Indication
multi gas monitor
FEATURES:
- Simple Design For Easy Gas Leak Detection / Monitoring.
- Multipoint Sensors Utility
- Audio Visual Alarm And Indication
- Reset, Accept And Test Function
- Flashing Bright LED Legend Indication With Identification Of Sensor Location By As User Specification
- External Alarm Relay Contact For Each Point
- Very Easy To Install And Operate
- Suitable For Hazardous / Safe Area CCOE, CMRI & IP- 65 Approved
APPLICATIONS:
- Building Management System
- Hotel Industries
- Kitchen & Canteen Area
- Cylinder Bank area / yard
- Car Parking Area
- Storage Area
- Laboratory Room
- Chemical Plants
- Chemical Storage Area
- Ambient Monitoring
- Automotive Industries
- Paint Shops
- Fertilizers Plants
- Power & Industrial Plants
- Gas Metering Station
- Bullet Yard / Storage Yard
- Coal Mine and Confined Area
- Gas Pipeline Project
- Gas Cylinder Bank
- Heat Treatment Plants
- Burner / Furnace Areas
TECHNICAL SPECIFICATION | ||
Input |
Digital Output Signal from Gas Transmitters |
|
Display |
Flashing Backlit Bright Red LED display (Name plate Legend will be provided as specify by user) |
|
Channel Capacity |
Available 2 Ch. / 4 Ch. / 6 Ch. / 8 Ch. (Optional 16 Ch.) |
|
Key Function |
Test, Accept & Reset ( External Test, Accept & Reset) |
|
Standard Relay Output |
One Common Relay contact (NO / C / NC) 230 VAC / 250 mA OR 24VDC / 1 A |
|
Optional Relay Output |
Additional Relay O/P for each channel for external use (Each relay contact (NO/C/NC) 230 VAC/5A OR 24VDC/ 3A) |
|
Alarm Set Point |
Preset Alarm Set point as per Gas & Range Specify by user |
|
Operating Temperature |
0 to 50°C ±5%, Relative Humidity: Below 95% non Condensing |
|
Supply Voltage |
230VAC ± 10% OR 110VAC ± 10% OR 24 VDC |
|
Cable |
1.5 sq. mm 3 Core OR 4 Core, Flexible OR Armored shielded cable from Gas transmitter |
|
Enclosure Detail |

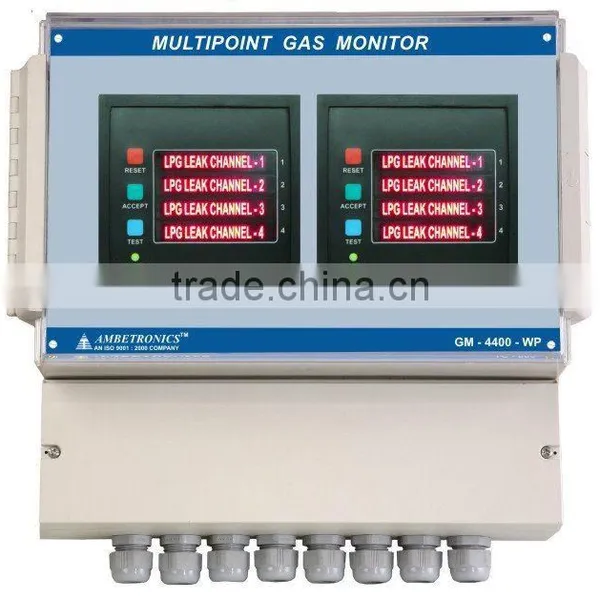

GM - 4400 - WP (Weatherproof ) |
GM - 4400 - FLP(Flameproof ) |
Protection Class |
IP-65 |
IP-65 for Gas Gr. IIA & IIB, CCOE & CMRI Approved |
Cabinet Material |
Polycarbonate, gray colour |
Cast Aluminum alloy, LM-6 / C.I. Enclosure |
Cable Entry |
Thermoplastic cable gland (IP 68)with clamping range of 2.5 to 6.5mm |
Double compression cable gland (Ex-Proof), ¾ ET type |
Dimension |
305 (H) x 325 (W) x 170 (D) in mm |
350 (H) x 290 (W) x 170 (D) in mm |
Mounting |
Wall Mounting / Stand Mounting |
Wall Mounting / Stand Mounting |
Weight |
Approx 2.5 kg |
Approx 6 kg |
Optional |
a) Individual relay O/P can be given for each channel or with grouping output b) Flame Proof or Non Flame Proof Industrial Hooter, Hooter cum Flasher, chart recorder, Cables, Gas Transmitters, 24VDC power supply, Gas calibration kit c) Mounting stand, Canopy and Splash Guard |
|
