Home > Products > New Products > G4S electronic prepaid gas flow meter

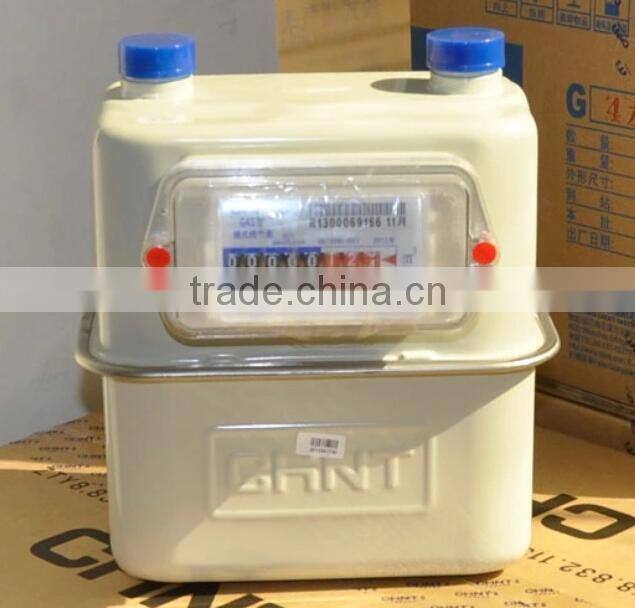

G4S electronic prepaid gas flow meter
- 10000 Piece / Pieces per Month
- shenzhen shanghai beijing erlian
- T/T L/C D/P D/A Credit Card
Product Details
Place of Origin: | Shanghai, China | Brand Name: | Yunyi | Model Number: | G4S |
Packaging Details
G4S electronic prepaid gas flow meter
Corrugated cardboard boxes outer and foam paper inner
Product Description
G4S electronic prepaid gas flow meter
Technical Features of electronic prepaid gas flow meter :
1. Die-cast aluminum case, ease of installation and maintenance.
2. Gear-drive core to ensure smooth driving and good repeated measurement performance.
3. Redundancy sealing at driving output section to ensure gas tightness.
4. Stainless shafts to maintain excellent corrosive resistance.
5. Engineering plastics components to meet strength requirements.
Technical Parameters of electronic prepaid gas flow meter :
Item | G4S gas meter |
Model | G4S |
Material | Aluminum shell |
Nominal flowrate | 4 m³/H |
Max flowrate | 6 m³/H |
Min flowrate | 0.04 m³/H |
Working pressure | 5-500mbar |
Max Error | 0.1Qmax≤Q≤Qmax ±1.5% |
Qmin<Q<0.1Qmax ±3.0% | |
Total Pressure Loss | ≤200Pa |
Max.Reading | 99999.999 |
Min.Reading | 0.0002 |
Rotational volume | 1.2dm³ |
Weight | 2kg |
Delivery time | 7 days |
Company Profile
Xian Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer, Mr Tian has more than 30 years experience on this area, and he is one of the engineers who introduced the Rosemount technology.
We are specialized in developing pressure transmitter, etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
