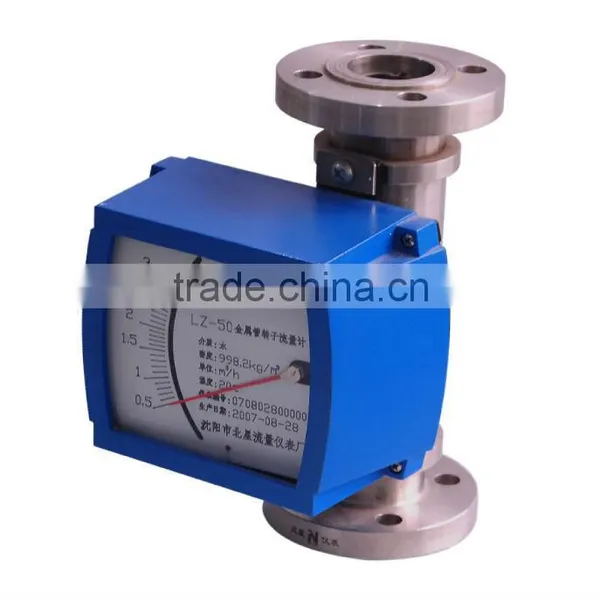

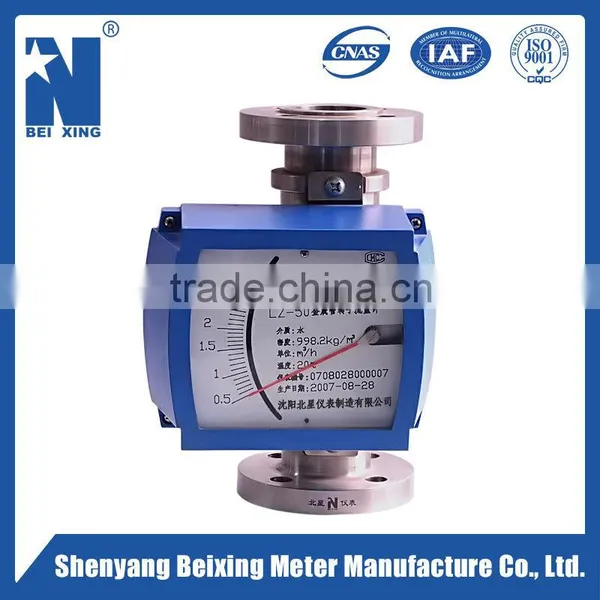

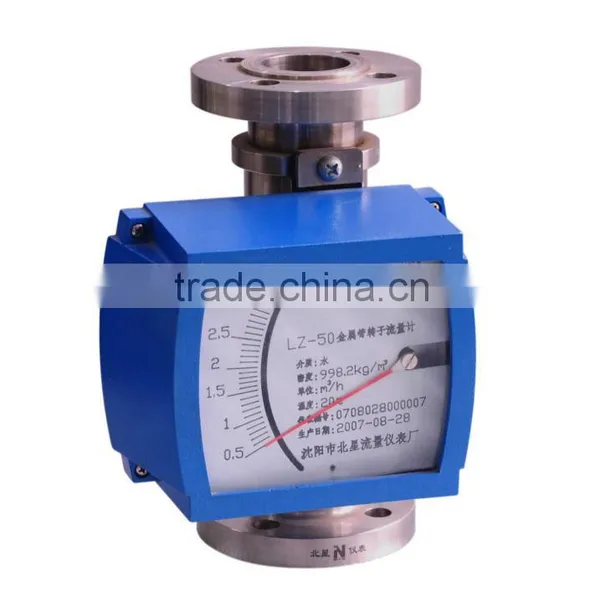

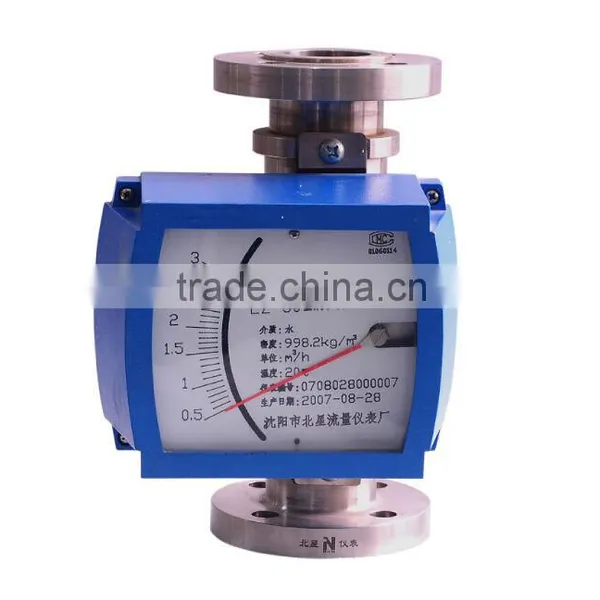

LZ metal tube water rotameter/flow meter with output signal
Introduction
LZ steel rotor pipeline flow meter is reliable equipment which has simple structure, wild using range, high accuracy and low cost. The flow meter is available in local visual reading, data transmissible, anti-corrosion and explosive-proof types. It is wildly used for liquid & gas measuring and control in national security, chemical, petroleum, pharmaceutical, and light industrial.
The sensors of the equipment are available in stainless steel (1Cr18Ni9Ti), MoTi II (0Cr18Ni12Mo2Ti, 1Cr18Ni12Mo2Ti) and PTFE. Other special materials are available for order, in order to measure corrosive fluid, i.e. Chlorine, Salt, Hydrochloric Acid, Nitric Acid and Sulfuric Acid.
Data output in standard signal, it can be fitted with DDZ-III electrical unit for computer control, implement comprehensive control.
Specification
Measuring range:
Water: 2.5 ~ 63,000L/h; Air: 0.07 ~ 2,000 m3/h (0.1013MPa, 20°C)
Measuring ratio:
10:1 (other special ratio equipment can be made by order)
Accuracy level: 1.5; 2.5
Maximum working pressure:
1.6MPa, 2.5MPa, 4.0MPa, 6.4MPa
(Please quote individually for pressure greater than 6.4MPa)
Application temperature: -80 ~ +300°C (For anti-corrosion PTFE: 0 ~ +80°C)
Working environment temperature: -20 ~ +50°C
Application viscosity:
φ15 <5mpa·s; φ25 ~φ100 <250mpa·s
Connection: flange:
Flange standard: 1.6, 2.5, 4.0, 6.4MPa, according to GB/T17241.6-68
(Other special order available, please quote individually)
Product type:
LZZ: standard;
LZD: data transmissible.
Measuring range
Bore(mm) |
Measuring range(20°C) |
Maximum pressure loss(kpa) |
|||
Anti-Corrosion |
Standard |
Air (0.1013MPa)m3/h |
Water L/h |
Air |
Water |
15 |
15 |
0.07-0.7 |
2.5-25 |
7.1 |
6.5 |
0.11-1.1 |
4.0-40 |
7.2 |
6.5 |
||
0.18-1.8 |
6.3-63 |
7.3 |
6.6 |
||
0.28-2.8 |
10-100 |
7.5 |
6.6 |
||
0.4-4.0 |
16-160 |
8.0 |
6.8 |
||
0.7-7.0 |
25-250 |
10.8 |
7.2 |
||
1.0-10 |
40-400 |
10 |
8.6 |
||
25 |
1.6-16 |
63-630 |
14 |
11.1 |
|
25 |
3.0-30 |
100-1,000 |
7.7 |
7 |
|
4.5-45 |
160-1,600 |
8.8 |
8 |
||
7.0-70 |
250-2,500 |
12 |
10.8 |
||
50 |
11-110 |
400-4,000 |
19 |
15.8 |
|
50 |
18-180 |
630-6,300 |
8.6 |
8.1 |
|
80 |
25-250 |
1,000-10,000 |
10.4 |
11 |
|
40-400 |
1,600-16,000 |
15.5 |
17 |
||
80 |
60-600 |
2,500-25,000 |
8.0 |
8.1 |
|
100 |
100-1,000 |
4,000-40,000 |
13.0 |
9.5 |
|
100 |
200-2,000 |
6,300-63,000 |
11.0 |
10 |
|

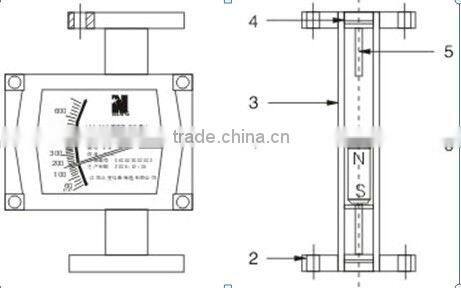

Main structure
1, Needle indicator
2, Connection flange
3, Measuring pipeline
4, Collar
5, Float stop
6, Float

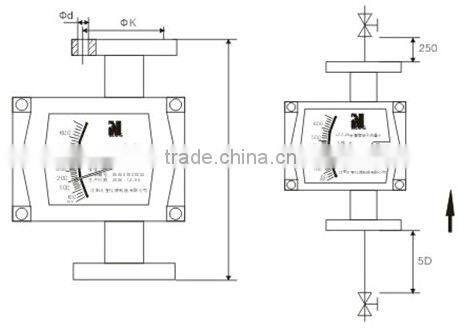

Installation parameter

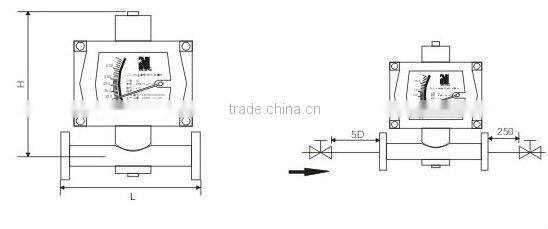

Vertical installation
Horizontal installation

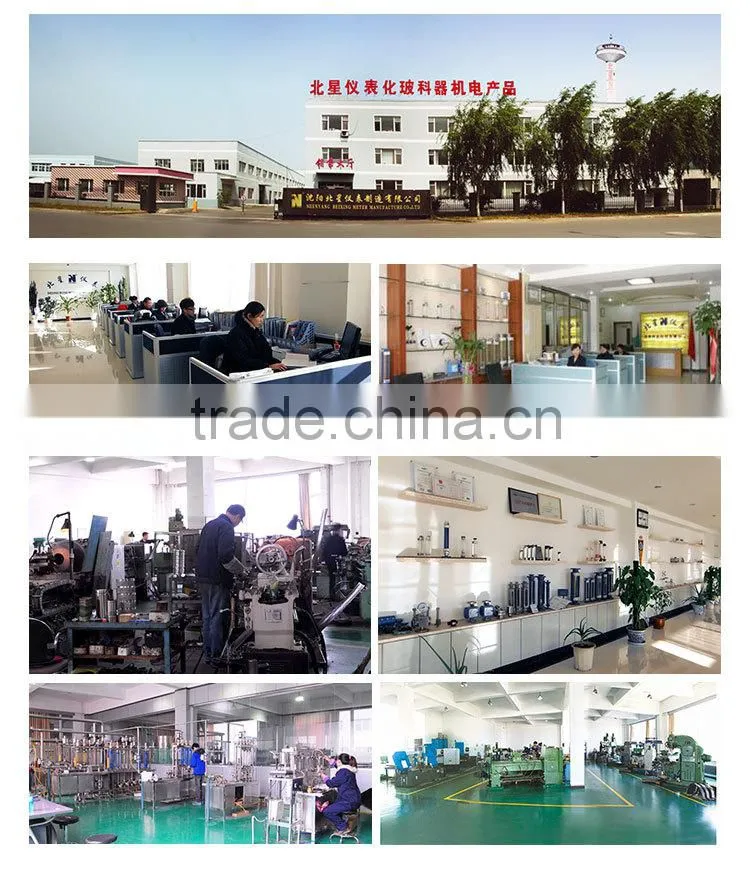

Shenyang Beixing Meter Manufacture Co., Ltd. was founded in August of 1995. We are located at Shenyang Economic & Technological Development Area and our company covers an area of 18,000sqm. Our company is specialized in manufacturing flow & level measuring instruments, chemical glass products, chemical glass pipes and special glass apparatus. Meanwhile, we also act as an agent of mechanical & electrical products, pressure instruments, chemical reagents, chemical materials, laboratory apparatus & science equipment, contract to design the instrument and meter engineering, chemical industry pipeline & laboratory auxiliary projects, process on given materials and take mechanical manufacturing.
