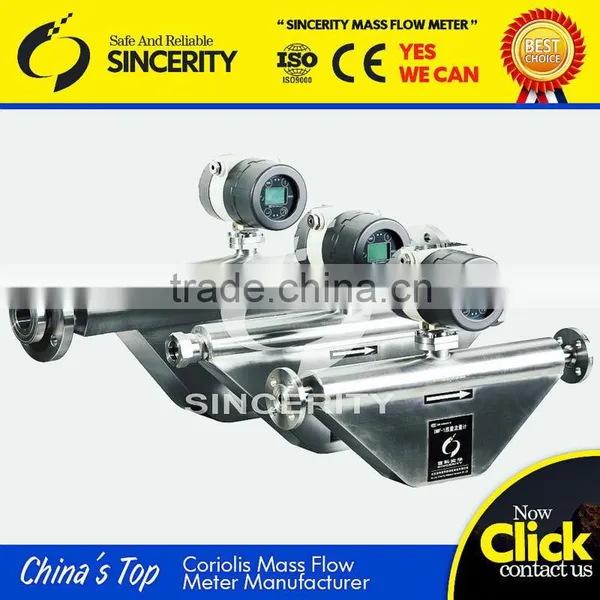

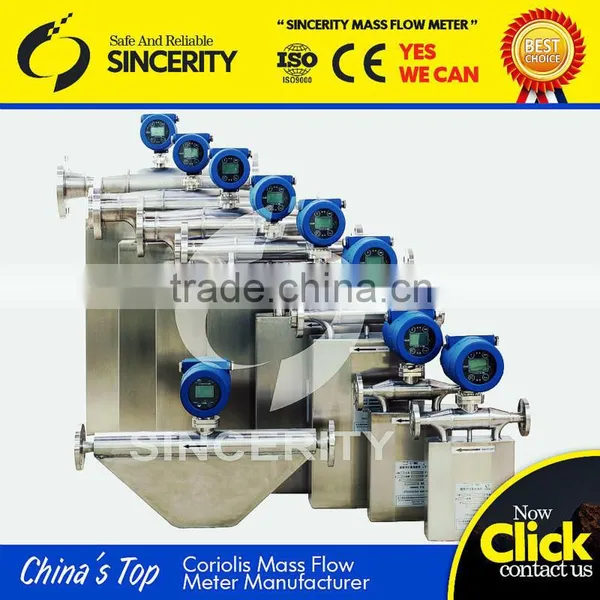

China's Top Coriolis Mass Hydrogen Gas Flow Meter
- 500 Unit / Units per Month
- Shanghai Port
- T/T Credit Card
Product Details
| Place of Origin: | Beijing, China | Brand Name: | Sincerity | Model Number: | DMF-Series |
Packaging Details
wooden boxes
Product Description
Technical Parameters:
| Applications | Suitable for Liquid, Gas, Liquid- Solid, Gas- Solid, Liquid- Gas Mass Measurement or volume measurement |
| Material of the Measurement Pipeline | SS 316L/ HC Hastelloy |
| Pressure | Please refer to the chart shown below. Special orders would be placed for high pressure. |
| Medium Temperature | -50℃~+150℃:-50℃~250℃;-50℃~ 350℃;-100℃~ 350℃ |
| Environment Temperature | Sensor:-40℃~+150℃; Transmitter:-20℃~+70℃ |
| Flow Rate Measurement Accuracy | ± 0.2% ,± 0.1% optional |
| Density Measurement Accuracy | ±0.002g/cm³,±0.001g/cm³ optional |
| Repeatability | ±0.10% Flow Rate ±[½(Zero Point Stability/Flow Rate)×100]% Flow Rate |
| Output Signal | 4~20mA Load Resistance <500Ω(Instantaneous or Density optional); 0~10kHz Instantaneous Flow Rate Pulse Signal; Standard RS 485 RTU protocol |
| Explosion- Proof Symbol | EX d ib II C T5 Gb |
Micro Coriolis Mass Flow Meters:
DMF-1-1; DMF-1-2
Model | DN | Measurement scope(kg/h) | Work Pressure (MPa) | Connection type (mm) |
DMF-1-1-AB | 1.5 | 0~4 | 0~32 | Weld Joints Φ6×1.5 |
DMF-1-1-A | 3 | 0~40 | 0~32 | Weld Joints Φ6×1.5 |
DMF-1-1-B | 6 | 0~100 | 0~25 | Weld Joints Φ10×2 |
DMF-1-2-A | 8 | 0~200 | 0~20 | Weld Joints Φ10×1 |
High Pressure Medium Scale Coriolis Mass Flow Meters:
DMF-1-3; DMF-1-4; DMF-1-5-A
Model | DN | Measurement scope (kg/h) | Work Pressure(MPa) | Connection Type(mm) |
DMF-1-3-A | 12 | 0~500 | 0~25 | Weld Joints Φ20×4 |
DMF-1-3-B | 14 | 0~1000 | 0~25 | Weld Joints Φ20×3 |
DMF-1-4 | 16 | 0~3000 | 0~25 | Weld Joints Φ20×2 |
DMF-1-5-A | 25 | 0~10000 | 0~25 | Weld Joints Φ31×3 |
Normal Pressure Large Scale Coriolis Mass Flow Meters:
DMF-1-3; DMF-1-4; DMF-1-5; DMF-1-6
High pressure could be special ordered. (4~70MPa)
Model | DN | Measurement scope (t/h) | Work Pressure (MPa) | Connection Type (mm) |
DMF-1-3-A | 10 | 0-0.5 | 0~4 | Flange 10 |
DMF-1-3-B | 15 | 0-1.0 | 0~4 | Flange 15 |
DMF-1-4 | 20 | 0-3.0 | 0~4 | Flange 20 |
DMF-1-5-A | 25 | 0-10 | 0~1.6 | Flange 25 |
DMF-1-5-B | 40 | 0-20 | 0~1.6 | Flange 40 |
DMF-1-6-A | 50 | 0-30 | 0~1.6 | Flange 50 |
DMF-1-6-AB | 65 | 0-50 | 0~1.6 | Flange 65 |
DMF-1-6-B | 80 | 0-100 | 0~1.6 | Flange 80 |
DMF-1-6-C | 100 | 0-150 | 0~1.6 | Flange 100 |
DMF-1-6-CD | 125 | 0-200 | 0~1.6 | Flange 125 |
DMF-1-6-D | 150 | 0-300 | 0~1.6 | Flange 150 |
DMF-1-6-E | 200 | 0-500 | 0~1.6 | Flange 150 |
Typical cased of different fields:

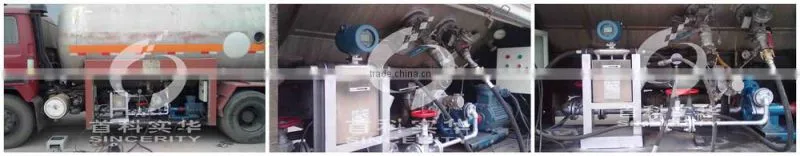

1. CNG Used in Cars:
2. Chemical Field:
3. Uncart. Oil Depot:

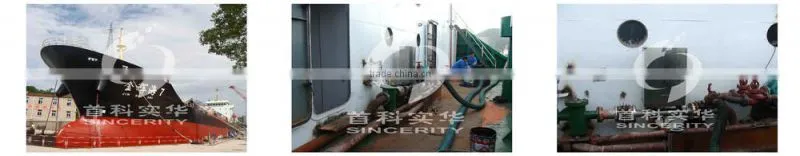

4. Used in Ships:
5. Cases in Bangladesh:
Beijing Sincerity Automatic Equipment Co,. Ltd is the manufacturer of producing Coriolis Mass Flow Meters. Our company was reformed from the China Petroleum &Chemical Corporation's Beijing Research Institute of Chemical Industries in 2006.
We have particular professional formula to produce the measuring pipeline compared to the other producing factories. Zeropoint Stability is good. Medium with tiny flow rate could be measured precisely, which reaches a minimum of 0- 1kg/h. Gas with either low pressure or with high pressure could be measured as well. Give us your problems, and you will never be disappointed!
Product Line:
Q: Why choosing Coriolis Mass Flow Meters but not the other flow meters?
A:
Coriolis mass flow meters has huge difference with the volumetric flow meters.
All the other flow meters except the Coriolis mass flow meters could be called as volumetric flow meters, including, turbine flow meters, thermal mass flow meters, vortex flow meters, electromagnetic flow meters, etc.
For the Coriolis Mass Flow meters:
- The measurement of the Coriolis Mass Flow meters will NOT be influenced by the factors of temperature, pressure, density, viscosity, etc. And the compensation calculation is NOT required.
- The accuracy of the Coriolis Mass Flow Meters is ±0.1%, ±0.2% . The accuracy will NOT be influenced by the factors mentioned above.
Compared to this,
For the Volumetric Flow Meters:
- The measurement of the volumetric flow meters WILL BE influenced by the factors of temperature, pressure, density, viscosity, etc. And the compensation calculation IS REQUIRED.
- The accuracy of the volumetric flow meters is said to be reached by ±0.5%. While, the actual accuracy is hard to reach this level of ±1%. The accuracy will be influenced by factors as mentioned above.
Company Profile
Beijing Sincerity Automatic Equipment Co,. Ltd is a professional manufacturing factory particularly producing mass flow meters and density meters. Our company was reformed from the China Petroleum and Chemical Corporation's Beijing Research Institute of Chemical Industry in 2006. The Coriolis theory based mass flow meter is capable of flowing liquid, gas, and liquid-solid measurement. And measurement data of flow rate, temperature and density can be displayed or transmitted to connected device. Certainly, our mass flow meters also possess the function of controllable flowing quantity setting.
Beijing Sincerity Automatic Equipment Co,. Ltd is specialized in designing, machinery installing, preferences adjusting and creating comprehensive analyses for the problems in manufacturing process, especially in the manufacturing industries associated with food, metal, chemical and medical. Suitable advices can be delivered to customers with requests as guaranty.
Extreme conditions of measuring object like High/low temperature, high pressure, high viscosity, micro flow, fluctuated temperature and pressure , rapid responding time, and high preference of accuracy will no longer be unsolvable issues to our mass flow meter users. In addition, the Coriolis mass flow meter can be also functioning as a general density meter which does not necessarily require further preference of temperature, viscosity, density, and pressure re-adjustment. The built-in technology of our mass flow meter could be represented as the representative of the 21st centaury mass flow meter.
Except the title of expert of fluid measurement, we are also recognized as the expert of automatic control devices. Please do no hesitate to contact us for further info requests, it will be our honor to provide customers the most suitable advices. We are gladful to guarantee our users deserving the most satisfied service.
