Help CenterWGH-IV-50KW hf IGBT Steel Rods Induction Forging Machine
Related Products
-
ISO9001 High-tech 160 KW Steel Rods Induction Forging MachineUS$ 1,500 - 15,000MOQ: 1 Set -
Output Current 90A High Efficiency Steel Bars Induction Heating MachineUS$ 1,200 - 13,500MOQ: 1 Set
-
Factory Price High Frequency 45KW IGBT Induction Heating Rod ForgingUS$ 1,200 - 4,800MOQ: 1 Set
-
China Competitive High Frequeny Hot Forging Machine PriceUS$ 3,000 - 9,800MOQ: 1 Set
-
Low Consumption Cost High Frequency Induction Metal Forging EquipmentUS$ 1,500 - 13,500MOQ: 1 Set
Specifications
steel rods induction forging machine1. ISO 9001 Certification
2. Siemens IGBT technology
3. induction coils customized

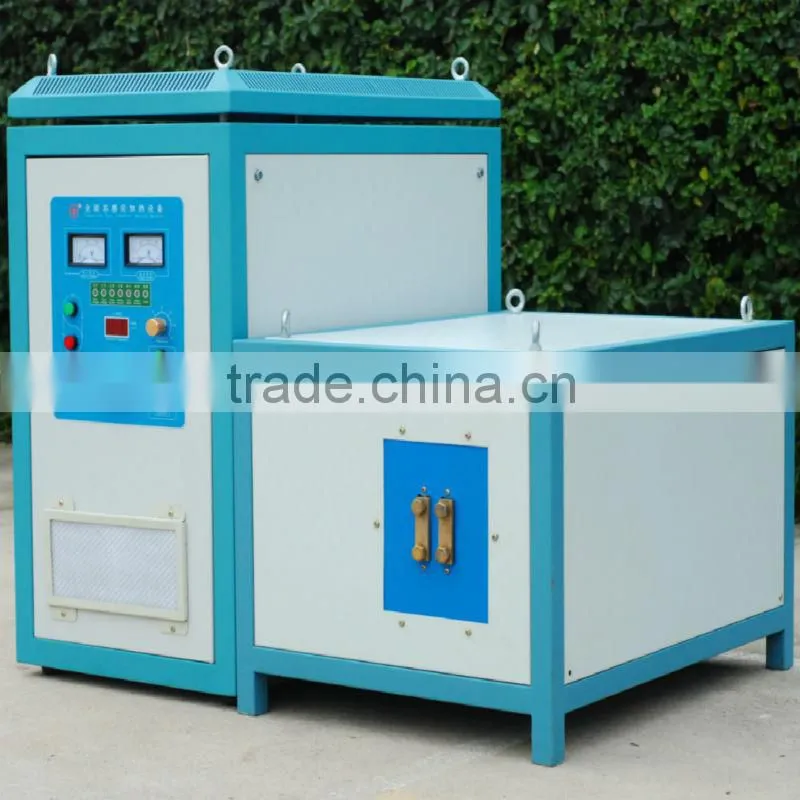

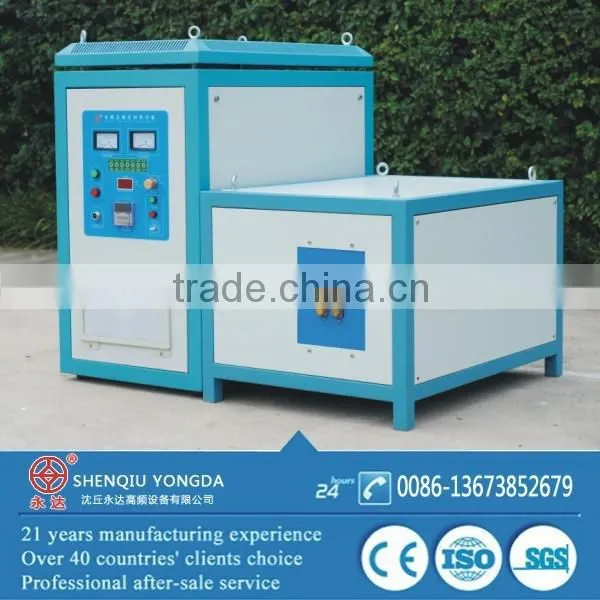

WGH-IV-50KW steel rods induction forging machine
High frequency induction forging machine
Accessories of each machine: induction coils, foot switch, installing and operating instructions
Advantage of IGBT steel rods induction forging machine
1, my company transistor (IGBT) high frequency power-saving than vacuum tube up to 40-60%, saving 60%, external support facilities to reduce investment by 75%.
2, a unique cooling circulation system, ensure that the equipment 24 hours of continuous work.
3, small size, light weight, easy to move, no million-volt high-voltage danger, safe operation.
4, high reliability, easy to maintain and improve the over voltage, over current, overheating, lack of, water and other self-protection.
5, use large scale integrated circuit digital automatic control, with manual, automatic, semi-automatic, and the lack of heat insulation of cold sub-time control functions.
6, automatic frequency tracking, stepless power adjustment, easy to use, 10 minutes to learn to use.
7, the company has a complete sales service system and the treatment of professional engineers, to ensure that you have no worry about technology or service.
Technial parameters of high frequency steel rods induction forging machine
Model |
Input voltage (Customized) |
Input current |
Oscillation frequency |
Cooling water pressure (MPA) |
WGH-IV-16 |
Single phase 220V |
3-30A |
30-50Khz |
0.1-0.3 |
WGH-IV-36 |
Three phase 380V |
3-36A |
30-40Khz |
0.1-0.3 |
WGH-IV-50 |
Three phase 380V |
3-50A |
30-35Khz |
0.1-0.3 |
WGH-IV-60 |
Three phase 380V |
6-60A |
30-35Khz |
0.1-0.3 |
WGH-IV-80 |
Three phase 380V |
6-80A |
25-35Khz |
0.1-0.3 |
WGH-IV-120 |
Three phase 380V |
6-120A |
20-30Khz |
0.1-0.3 |
WGH-IV-160 |
Three phase 380V |
6-160A |
20-30Khz |
0.1-0.3 |

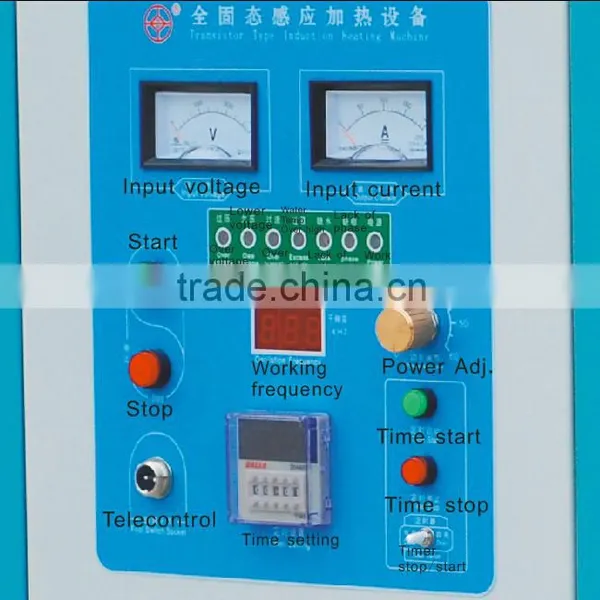

Control panle of induction forging machine
Applications of high frequency induction forging machine
1. Forging, rolling class
1.1 The variety of hot-rolled twist drill.
1.2 standard parts, hot forging fasteners, such as high strength bolts, nuts and so on.
1.3 drill steel, tempering brazing, forging, extrusion heating

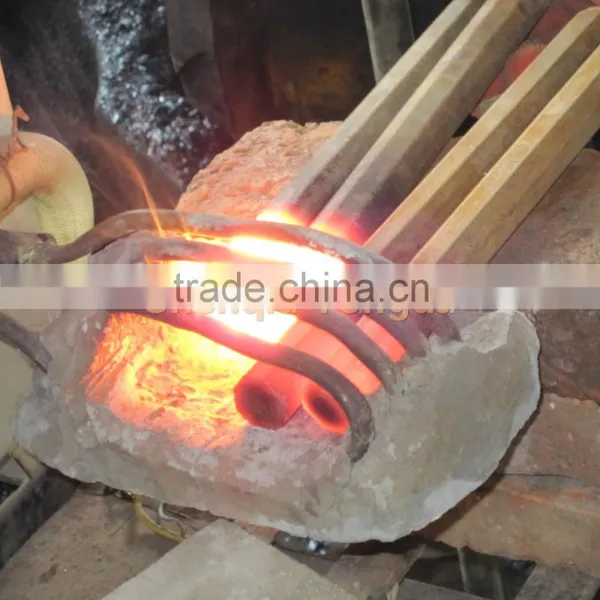

Bolts ends induction forging
Product quality certification: ISO9001:2000
Packing steel rods induction forging machine:
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to R&D,production of HF,SSF,MF induction heating equipment,adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions.
Products applications:
Metal forging,hardening,brazing, annealing, melting,shrink fit, thermal compound,plastic machine screw cylinder heating etc. other fields.
Our company's honor:
What’s your MOQ? |
Any quantity of machine will be accepted. MOQ:1 Set |
Which place your factory is located? |
We are located in Shenqiu County, Zhoukou city, Henan Province ,China |
How far from Beijing? I think it is more closer to Shanghai |
Our factory is near both and Shanghai. We have office in Zhengzhou, we can pick up you at Zhengzhou CGO airport,and then to our factory via expressway about two hours. |
We need to see some more videos for production line and also pictures of your factory, water drawing and panel drawing |
Well, we have many videos show our customer’s machine working scene(Various of applications: forging,hardening, brazing, shrink fitting, melting and hot coating etc. According to your work piece processing requirements,) send you the corresponding video link or send by email. 2. Yes, we can provide you factory pictures and machine water connection and control panel details. |
Do you have quality certifications? |
Yes, we got the ISO9001:2000 International quality management system certification in August,2001, |
How do you packing the machines? |
Standard export wooden cases(plywood) Usually every set machine will be used two wooden cases: one for packing induction heating generator, one for packing transformer. Inside will be filled with plastic foam for waterproof and shockproof |
More questions….? |
Updating… |
Thanks for your reading ! Welcome to contact us !
