Factory Price High Frequency 45KW IGBT Induction Heating Rod Forging
- Shanghai Qingdao Tianjin Guangzhou or as you request
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
China Competitive High Frequeny Hot Forging Machine Price
-
Low Consumption Cost High Frequency Induction Metal Forging Equipment
-
Big Power High Output 120KW Induction Heating Equipment
-
Induction Machine 90kw Bolts Induction Forging
-
21 Years Experience Industrial Induction Forging Iron Machine
-
Low Price Induction Forging Heater for Bolts
Product Details
| Condition | New | Type | Other, induction heater | |
| Power Source | Electric | Place of Origin | Henan, China | |
| Brand Name | Yongda | Model Number | WZP-45 | |
| Dimension(L*W*H) | 665*400*830MM | Weight | 130KGS | |
| Voltage | 320V-420V | Power(W) | 45KW | |
| Certification | ISO9001:2008 | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
induction heating rod forging1. adopts igbt modules
2. power adjustable 3-45KW
3. no pollution
4. work perfect
Factory price high frequency 45KW IGBT induction heating rod forging

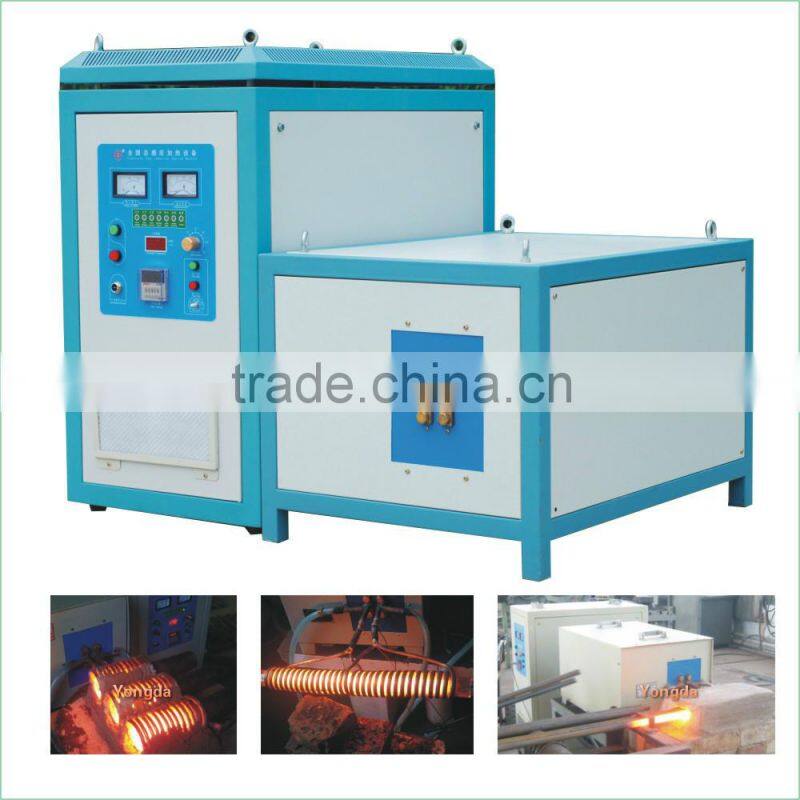

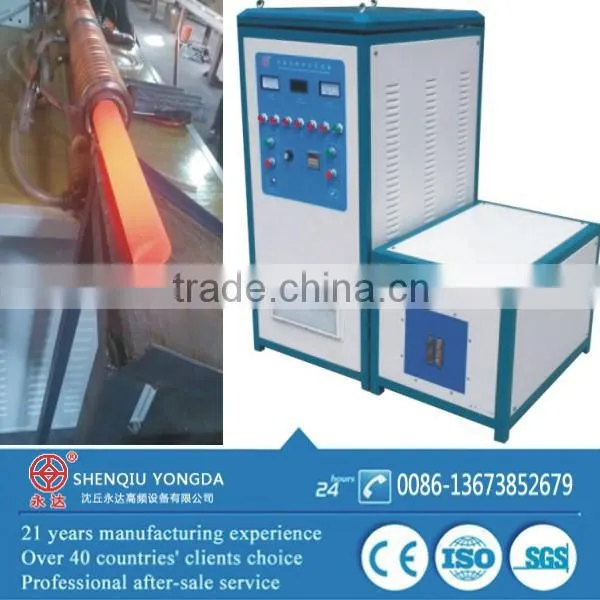

Yongda WZP-45 high frequency induction heating rod forging machine
Technial parameters of Yongda WZP Sereis induction heating machine
Model | Input voltage | Input current | Oscillation frequency | Cooling water pressure |
WZP-15 | 320-420V | 2-40A | 15-30KHZ | 0.1MPA |
WZP-35 | 320-420V | 3-60A | 15-30KHZ | 0.2MPA |
WZP-45 | 320-420V | 4-90A | 15-30KHZ | 0.3MPA |
WZP-65 | 320-420V | 6-120A | 15-30KHZ | 0.3MPA |
WZP-85 | 320-420V | 6-160A | 15-30KHZ | 0.3MPA |
WZP-120 | 320-420V | 6-200A | 15-30KHZ | 0.3MPA |
WZP-160 | 320-420V | 6-300A | 15-30KHZ | 0.3MPA |
WZP-200 | 320-420V | 6-400A | 8-15KHZ | 0.3MPA |
WZP-260 | 320-420V | 6-500A | 8-15KHZ | 0.3MPA |
Usage cases of high frequency induction heating machine
1. all kinds of shaft hardening, hardened layer 1.5-3mm, diameter Φ10mm-250mm, all types in the hole quenching.
2. Φ5-Φ12 wire annealing.
3. all kinds of brazing welding head.
4. Φ25 bar through the following heat, the speed much faster than the SCR. Φ60mm-Φ100mm bar diathermy
5. all kinds of chains, sprockets treatment
6. Angang weight of 80 tons 3 meters in diameter hardened gears
7. Hanjiang River Bridge with a thickness of 17.5mm Φ1016mm steel heated to 1,000 degrees bent shape.
8. necking forming various types of steel heat
9. copper bar annealing, wire annealing
10. Machine Tool Gears, Sprockets quenching
11. all kinds of heating elbow flared necking.
12. Φ50mm 3mm thick stainless steel annealing
Applications range
Induction heating for forging, hot forming, bending
A, all kinds of standard parts, fasteners, machinery parts, hardware tools, straight shank twist hot upsetting, hot.
B, metal heat annealing. Such as: tensile steel tube, pipe, smashed head; wire, heating wire nail; stainless steel annealed, rose type.

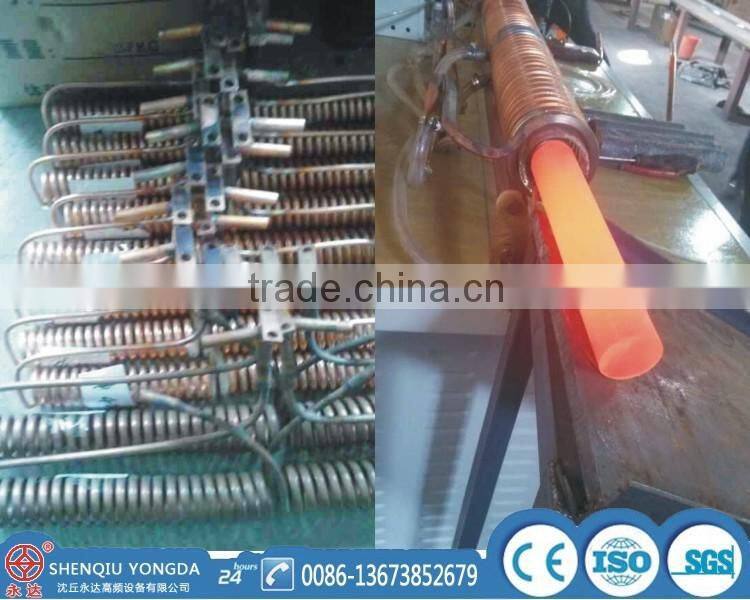

Induction heating rod forging and induction coils

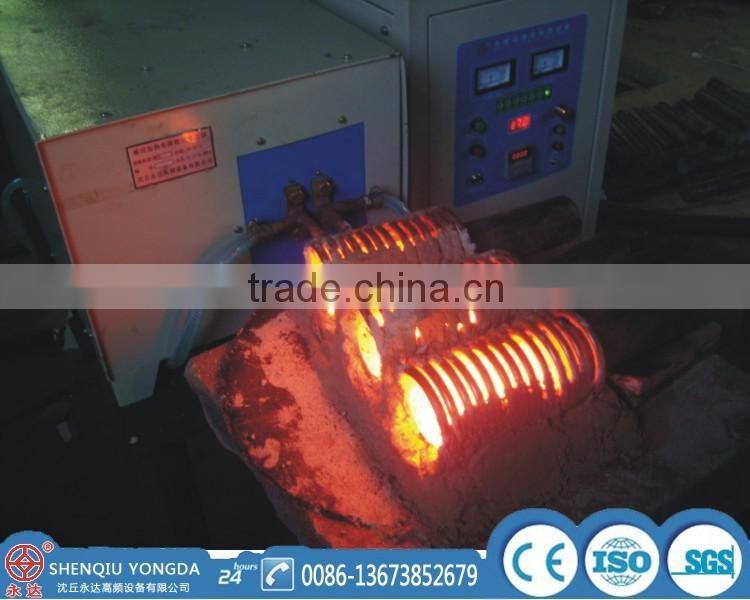

Induction heating bolts end forging

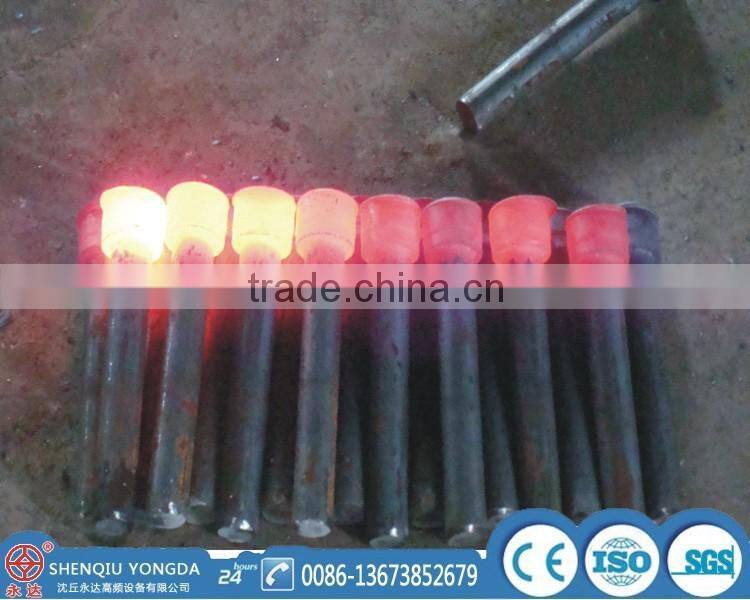

Standard parts hot forging
Induction coils and work pieces showroom:
All these work pieces manufacturer bought Shenqiu Yongda induction heating equipment .
Packing for induction heating forging machine:
1.Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
2. Accessories: induction coils,foot switch and installing and operating instructions
3. Size : generator 830*500*880mm transformer 830*600*550mm
4. Weight: generator 47kgs , transformer 62kgs
Shipping: by sea LCL(less than container load) or by air.
Pre-sale service:
We will recommend the most applicable equipment for customers according to your work piece processing demands.
In-sale service:
(1) We will strictly produce the equipment according to relevant technical standards.
(2) We will take run test according to relevant equipment test run regulations.
(3) We will strictly inspect the equipment before delivery,only good machine will be sent to customers.
(4) We will send goods as scheduled in the contract.
After-sale service:
(1) We will freely guide installation, commissioning and test run,by sending intall drawings, sometimes calling or send email.
(2) We will execute one-year guarantee period (ex. not include normal wear, damages of wearing parts and parts damages caused by improper operation).
(3) Once there is a trouble during quality guarantee period, our company promises that we will promptly appoint engineer and sales to help, make our efforts to remove troubles and guarantee the normal operation of customers.
(4) We will freely replace all equipment parts during guarantee period. After-sale products archives and life-long repair solve the potential problems of customers.
(5) Provide long-terms technical support. Also for different work pieces , give instructions and help about how to produce inductors.
(6) According to customer’s need, can arrange engineer to install ,test machine and training operators.
(7) After guarantee period, customer can buy machine parts from us with very low cost.
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to R&D,production of HF,SSF,MF induction heating equipment,adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions.
What’s your MOQ? | Any quantity of machine will be accepted. MOQ:1 Set |
Which place your factory is located? | We are located in Shenqiu County, Zhoukou city, Henan Province ,China |
How far from Beijing? I think it is more closer to Shanghai | Our factory is near both and Shanghai. We have office in Zhengzhou, we can pick up you at Zhengzhou CGO airport,and then to our factory via expressway about two hours. |
We need to see some more videos for production line and also pictures of your factory, water drawing and panel drawing | Well, we have many videos show our customer’s machine working scene(Various of applications: forging,hardening, brazing, shrink fitting, melting and hot coating etc. According to your work piece processing requirements,) send you the corresponding video link or send by email. 2. Yes, we can provide you factory pictures and machine water connection and control panel details. |
Do you have quality certifications? | Yes, we got the ISO9001:2000 International quality management system certification in August,2001, |
How do you packing the machines? | Standard export wooden cases(plywood) Usually every set machine will be used two wooden cases: one for packing induction heating generator, one for packing transformer. Inside will be filled with plastic foam for waterproof and shockproof |
More questions….? | Updating… |
Are you still hesitate? Over 20 years induction heating machine manufactruer.-SHENQIU YONGDA HIGH FREQUENCY EQUIPMENT CO.,LTD
Please contact us now !
