Specifications
induction forging machine1. 20 years experience
2. Siemens IGBT technology
3. forging steel billet,rods,plate
4. 18kg/min
ISO9001 High-tech 160 KW steel rods induction forging machine
Advantages of induction forging machine
Heating fast: this is the heating rate of less than 1 second (speed adjustable speed control)
Heating wide: wide range of metal parts can be heated (according to the different shape of the workpiece replacement of removable induction loop)
Easy installation: connect the power, induction loop and out of the water can be used; small size, light weight, easy to use
Simple operation: a few minutes to learn
Start fast: you can start with water after the heating power
Low power consumption: high-frequency device than the old-fashioned tube about 70% energy saving, the smaller the power consumption of the smaller parts
Good effect: the heating is very uniform (also by regulating the induction coil density, so that all parts of the workpiece to obtain their desired temperature), heating up fast, less oxide layer after annealing without waste
Adjustable power: The Promise adjust the output power
Protection all: with over voltage, over current, overheating, lack of water and other alarm indicator, and automatic control and protection
Technial parameters of induction forging machine
Model |
Input voltage |
Input current |
Oscillation frequency |
Cooling water pressure |
WZP-40 |
320-420V |
2-40A |
15-30KHZ |
0.1MPA |
WZP-60 |
320-420V |
3-60A |
15-30KHZ |
0.2MPA |
WZP-90 |
320-420V |
4-90A |
15-30KHZ |
0.3MPA |
WZP-120 |
320-420V |
6-120A |
15-30KHZ |
0.3MPA |
WZP-160 |
320-420V |
6-160A |
15-30KHZ |
0.3MPA |
WZP-200 |
320-420V |
6-200A |
15-30KHZ |
0.3MPA |
WZP-300 |
320-420V |
6-300A |
15-30KHZ |
0.3MPA |
WZP-400 |
320-420V |
6-400A |
8-15KHZ |
0.3MPA |
WZP-500 |
320-420V |
6-500A |
8-15KHZ |
0.3MPA |

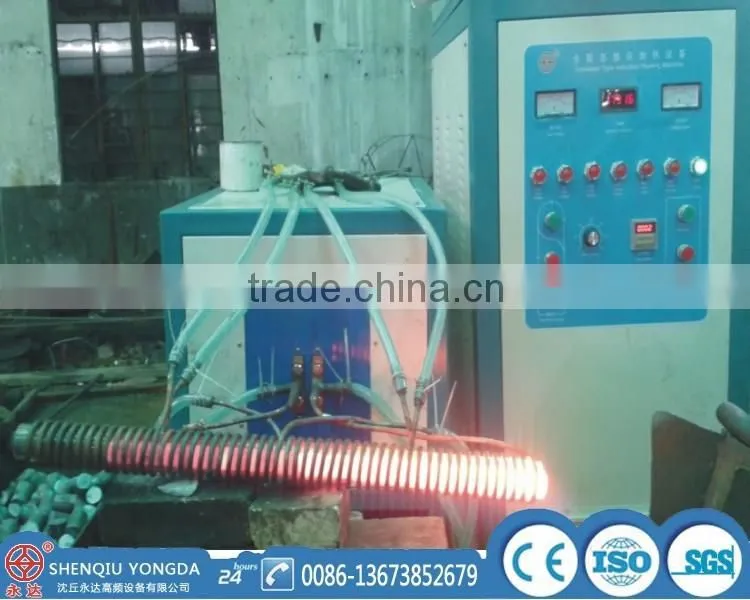

Photo of 160KW induction forging machine and ISO 9001:2000 Certification
Our induction forging machine ,high frequency induction heating machine has complete protect itself functions: such as over current,over voltage,lack of water,lack of phase, water temperature is over high, etc near ten alarming lamps. When any of the lamps light, machine will be noisy, and stop heating.This prevent the machine further damaged, until troubleshooting, start machine again.
Application of induction forging machine
1. Forging the following metal work pieces
(1) Round steel categories:
A. bolts, nuts, drill head hot forge, the car U-bolts, anchor bolt, connecting rod, non-standard parts processing, conductive rod
B. stainless steel tableware, stainless steel bolts and nuts
C. tools: pliers, bolt cutters, pipe clamp, water pump pliers, pliers, wrenches, ratchet wrenches, masonry chisel,
D. Other: sewing gadgets, jack head, boss chair, shackles, hand rings, flowers Lancashire body, feet kidnapper, tricycle axle, briquettes machine Chong-pin, roll gate axis, articulated manifolds, hot-rolled twist drill, Hot-rolled rebar, hot-rolled woodworking drill, bearing
(2) sheet/plate categories:
A. forged stainless steel cutlery, automotive steel plate.
B. sheet folding: folding iron hand jack, metal folding channel, automotive steel, hot rolled construction steel buckle, automotive leaf spring
C. embossed: Iron Works embossing, embossing motorcycle brake pedal heating, sanitary ware.
D. Forming: bending, upsetting head, punching, flatten, step by step tight angle iron molding, from nails, rasp, sanitary ware
(3) pipe deformation: pipe heat distortion, fire extinguishers stretching, stretching cylinders, fans rose shaped brackets bend, pipe up hole, bicycle fork shrinkage, food machinery punching
(4) other categories:
Electric Vehicle wrist, drill rod, drill bits, copper pieces (communication, air conditioning parts), trains pin, watch cases, railway rail pressure ring.

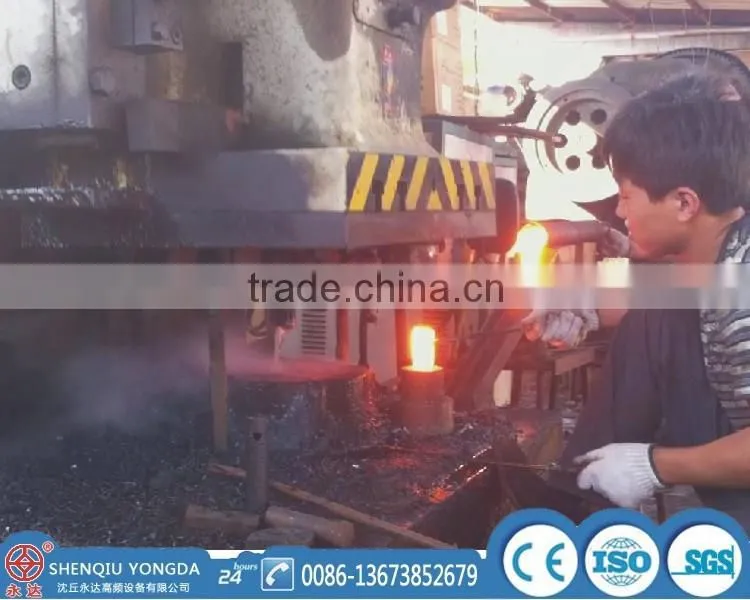

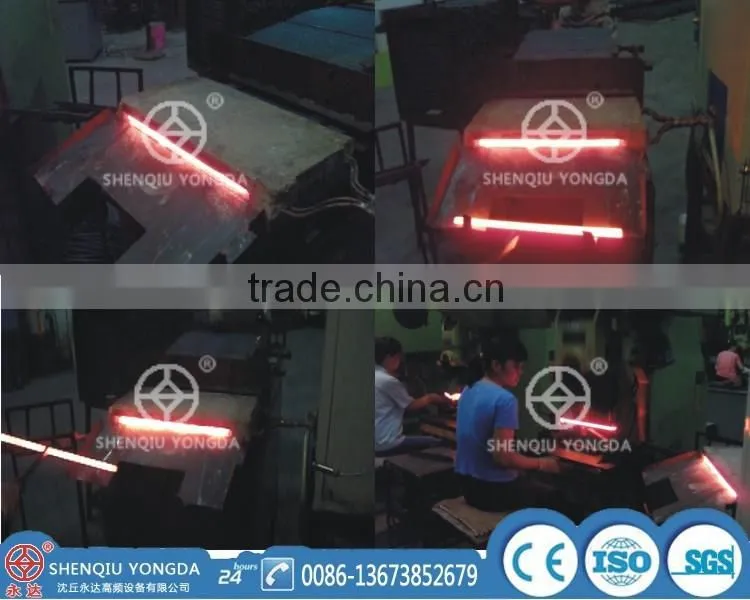

Steel bars induction forging
Casing coupling induction forging machine
Railway elastic bar fasteners induction forging machine
Other applications of induction heating machine
Metal work pieces and induction coils showroom.
Induction forging round steel bar heating coils
Packing for induction forging machine:
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support

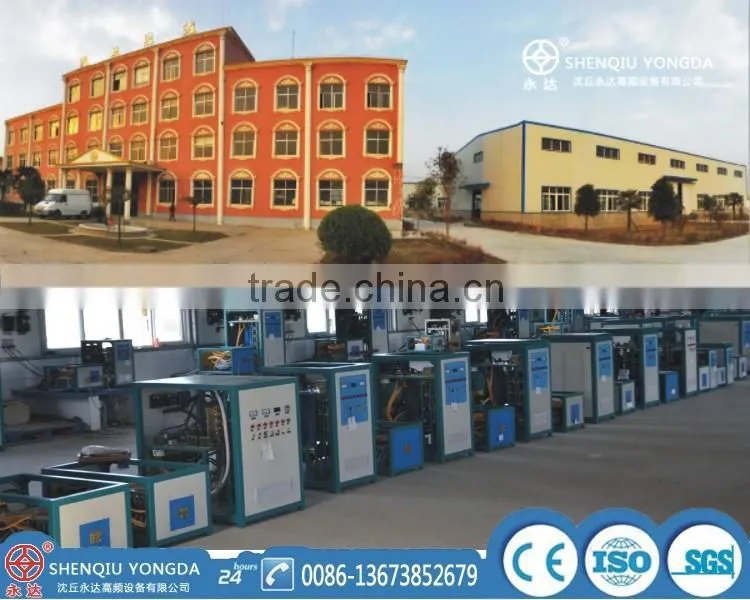

Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to R&D,production of HF,SSF,MF induction heating equipment,adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions.
We are in induction heating industrial exhibitions
Our minimum quanity is 1 set
2.How many induction coils you provide?
Usually we equipped with machine 2 piece induction coils.
3.Can we have extra induction coils ?
Yes, of course. For extra coils, we can tailor-made induction coils, as your required, low cost
4.We have not cooperated with you....and your are 1st member of ALibaba.
Well , although we are Alibaba member 1st year, but our product has been sold to many countries, such as Asia, Europe, South America , UAE etc. We have very big market in domestic, and our prouducts has been sold home and abroad from our Guangzhou,Shanghai, Chongqing etc. offices. And now you also can buy induction heating machine with very low cost from our factory , which is located in SHenqiu,Henan province.
5.Do you have quality certifications?
Yes, we have ISO9001:2000 Certifications.
6.I am new , about this product
No matter, let our professional sales to guide you. Finally, to recommend you the suitable machine power and competitive price.You just need tell us your work pieces' specifications and heating requrirements.
More questions and answers, are updating...
First-class quality, competitive price, considerate service !
Thinking induction forging machine, please thinking Shenqiu Yongda !
Thanks for your reading ! Welcome to contact us !
