Induction Heating Stress Relieving Equipment
US$ 896 - 12,500
/ Set
1 Set(Min. Order)
- Shanghai Qingdao Tianjin Guangzhou or as you request
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
Induction Heating Device Stainless Steel Tableware Annealing Machine
-
Induction Anneal Machine Stainless Steel
-
120KW Stainless Steel Disc Stretch Induction Heating Machine
-
HIgh Frequency Induction Steel Pipe Anneal Machine
-
Super Audio Frequency Bearing Induction Heating Equipment
-
Saving Power Induction Heating for Auto
Product Details
| Place of Origin | Henan, China | Brand Name | yongda | |
| Model Number | WZP-120 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Induction heating stress relieving equipment
Product Description
Technical parameters of stress relieving equipment
Model | WZP-120 |
Work power: | 3 phase 380V+/-10%, 50-60HZ |
Input voltage: | 320V-420V can be changed, depend on your country's electric power |
Input current: | 6-120A |
Oscillation frequency: | 15-30khz |
Cooling water pressure | 0.3 MPA |
Size of generator: | 665*400*830mm |
Size of transformer | 660*490*435mm |
Weight of generator | 48kgs |
Weight of transformer | 66kgs |
Annealing: stress relieving.
Annealing → the workpiece is heated to a suitable temperature,with different incubation times,depending on the material and size of the workpiece , and then slow cooling (the cooling speed is the slowest),so as to make the internal organization of the metal achieve equal or at the equilibrium state, to obtain a good process properties and performance, or prepare for further hardening.
Common workpieces require annealing
(1) Stainless steel: stainless steel cups, stainless steel sink, stainless steel boxes, pans, pots, buckets, cutlery, forks, spoons,
(2), other types:
Metal strap flange, exhaust pipe flange, chain annealing, punching, the fans rivet heating, mine screen annealing.
Pumping gas pipe
(2), other types:
Metal strap flange, exhaust pipe flange, chain annealing, punching, the fans rivet heating, mine screen annealing.
Pumping gas pipe
Lathe tool stress relieving , to remove carbide cutters
More machine model recommendation
Model | Input voltage | Input current | Oscillation frequency | Cooling water pressure |
WZP-40 | 320-420V | 2-40A | 15-30KHZ | 0.1MPA |
WZP-60 | 320-420V | 3-60A | 15-30KHZ | 0.2MPA |
WZP-90 | 320-420V | 4-90A | 15-30KHZ | 0.3MPA |
WZP-120 | 320-420V | 6-120A | 15-30KHZ | 0.3MPA |
WZP-160 | 320-420V | 6-160A | 15-30KHZ | 0.3MPA |
WZP-200 | 320-420V | 6-200A | 15-30KHZ | 0.3MPA |
WZP-300 | 320-420V | 6-300A | 15-30KHZ | 0.3MPA |
WZP-400 | 320-420V | 6-400A | 8-15KHZ | 0.3MPA |
WZP-500 | 320-420V | 6-500A | 8-15KHZ | 0.3MPA |
Copper/ brass annealing machine, please thinking Shenqiu yongda high frequency equipment Co.,Ltd . We professionally manufacture annealing machine, high frequency induction heating machine.

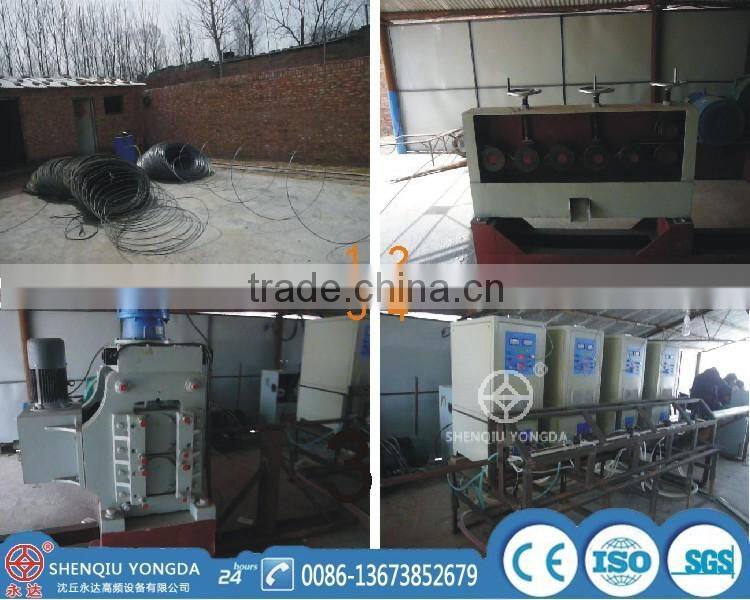

Wire stress relieving
More information about stress relieving machine, annealing machine, please contact Ms. Jessie
