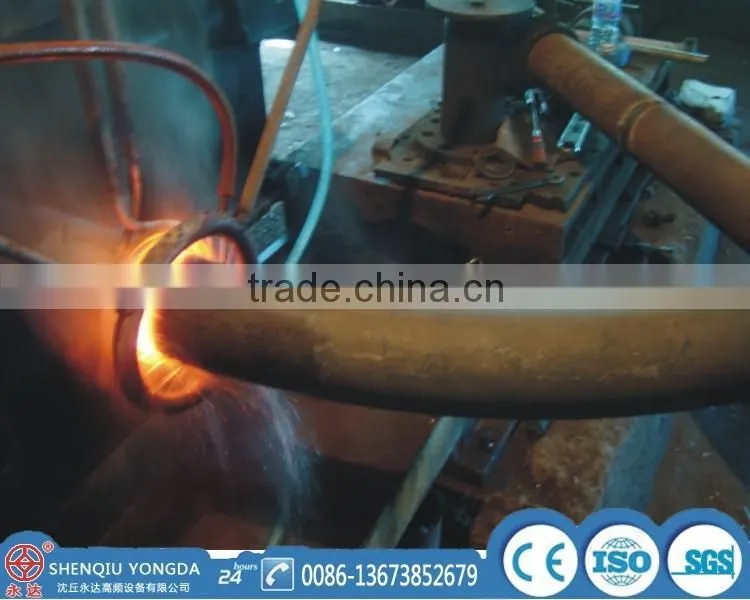

Bottom price high frequency steel pipe anneal machine
What is annealing ?
the workpiece is heated to a suitable temperature,with different incubation times,depending on the material and size of the workpiece , and then slow cooling (the cooling speed is the slowest),so as to make the internal organization of the metal achieve equal or at the equilibrium state, to obtain a good process properties and performance, or prepare for further hardening.

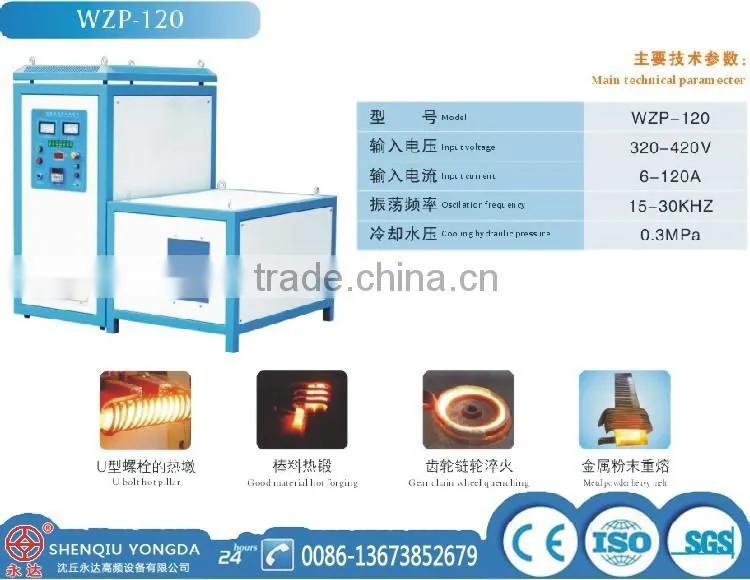

| Model | WZP-120 |
| Work power | 3 phase 380V+/-10%, 50-60HZ |
| Input voltage | 320V-420V can be changed, depend on your country's electric power |
| Input current | 6-120A |
| Input power | 3-65KW adjustable stepless |
| Oscillation frequency | 15-30KHZ also can be changed, depend on your work pieces size |
| Size of generator | 665*400*730mm |
| Size of transformer | 660*490*435mm |
| Weight of generator | 48kgs |
| Weight of transformer | 66kgs |
| Cooling water pressure | 0.3 MPA |
Advantages of pipe anneal machine
1)Heating fast
this is the heating rate of less than 1 second (speed adjustable speed control)
2)Heating wide
wide range of metal parts can be heated (according to the different shape of the workpiece replacement of removable induction loop)
3)Easy installation
connect the power, induction loop and out of the water can be used; small size, light weight, easy to use
4)Simple operation
a few minutes to learn
5)Start fast
you can start with water after the heating power
6)Low power consumption
high-frequency device than the old-fashioned tube about 70% energy saving, the smaller the power consumption of the smaller parts
7)Good effect
the heating is very uniform (also by regulating the induction coil density, so that all parts of the workpiece to obtain their desired temperature), heating up fast, less oxide layer after annealing without waste
8)Adjustable power
The Promise adjust the output power
9)Protection all
with over voltage, over current, overheating, lack of water and other alarm indicator, and automatic control and protection
Applications of pipe anneal machine
1, annealed stainless steel industry. Such as stainless steel pots, pot annealing stretching, curling, and annealing annealing sink, stainless steel pipe, stainless steel tableware, stainless steel cup;
2, other metal parts of the annealing. Such as golf heads, clubs, Tongsuo head, brass hardware fittings, kitchen knife, blade, aluminum pot, aluminum barrel, aluminum radiator and a variety of aluminum products
How to choose our pipe anneal machine ?
Work piece: steel pipe
| Specifications | Φ32 | Φ40 | Φ60 | Φ60 |
| Model | WZP-120 | WZP-160 | WZP-200 | WZP-200 |
| Heating speed(second) | 7-9s | 10-15s |
Applications fields
Metal work pieces and induction coils showroom.
We are in induction heating industry exhibition
Packing for pipe anneal machine
1.Wooden cases (plywood) or carton,as you request.
2.Inside,will be filled with plastic foam,for waterproof and shockproof.
3.Accessories: induction coils,foot switch and installing and operating instructions
4.Shipping: by sea LCL(less than container load) or by air.
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support
What’s your MOQ? |
Any quantity of machine will be accepted. MOQ:1 Set |
Which place your factory is located? |
We are located in Shenqiu County, Zhoukou city, Henan Province ,China |
How far from Beijing? I think it is more closer to Shanghai |
Our factory is near both and Shanghai. We have office in Zhengzhou, we can pick up you at Zhengzhou CGO airport,and then to our factory via expressway about two hours. |
We need to see some more videos for production line and also pictures of your factory, water drawing and panel drawing |
Well, we have many videos show our customer’s machine working scene(Various of applications: forging,hardening, brazing, shrink fitting, melting and hot coating etc. According to your work piece processing requirements,) send you the corresponding video link or send by email. 2. Yes, we can provide you factory pictures and machine water connection and control panel details. |
Do you have quality certifications? |
Yes, we got the ISO9001:2000 International quality management system certification in August,2001, |
How do you packing the machines? |
Standard export wooden cases(plywood) Usually every set machine will be used two wooden cases: one for packing induction heating generator, one for packing transformer. Inside will be filled with plastic foam for waterproof and shockproof |
More questions….? |
Updating… |
Thanks for your reading ! Welcome to contact us !
