2015 hot sell price of us annealing furnace
The advantage of annealing furnace
2) fast heating, enhances the processing in a very short period of time to achieve the required temperature, or even 1 second. So that the workpiece surface oxidation and decarbonization are lighter, most of the artifacts are not gas.
3) the equipment needed by adjusting the operating frequency and power, the surface hardened layer of regulation. So that the hardened layer of fine martensite, hardness, strength and toughness are high.
4) after heat treatment by induction heating of the workpiece, the surface under a thick layer of hard toughness region, with better compression stress, fatigue and the workpiece are higher breaking capacity.
5) heating equipment on the production line is easy to install, easy to implement mechanization and automation, ease of management, can effectively reduce the transport, saving manpower, increase production efficiency.
6) multi-usage. Complete quenching, annealing, tempering, normalizing, quenching and other heat treatment process, but also complete welding, melting, hot assembly, disassembly and heat through hot forming and so on.
7) easy to use, simple, open or stopped at any time. And without preheating.
8) can be manually operated, but also semi-automatic and fully automatic operation; you can even continue working long hours can also be used to stop the random use. Equipment in power in favor of the use of low discount price.
9), high power utilization, environmental protection and energy saving, safe, reliable, good working conditions for workers.

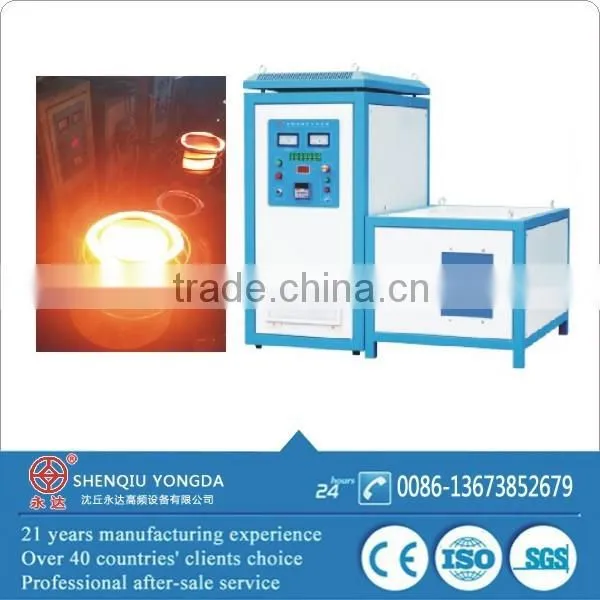

The induction annealing machine
The induction coils
The main technical parameters of the annealing machine
Model |
WZP-160 |
Work Power |
Three phase 380v/50hz |
Oscillation Frequency |
15-30Khz |
Cooling Water Flow (host) |
25L/Min(0.1MPa) |
Voltage Range |
320-420v |
Cooling Water Pressure |
0.1-0.3MPa |
Max. Input Current |
160A |
Water Temperature Protection |
50°C |
Max. Output Power |
90kw |
Size of generator |
850*600*1330mm |
Size of transformer |
780*540*525mm |
Weight of generator |
147kg |
Weight of transformer |
108kg |
Applications
1. Annealing of various stainless steel products, such as stainless steel basin, annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup.
2. Annealing of various other metal work pieces, such as golf ball head, cue, brass lock, hardware copper fitting, kitchen knife handle, blade, aluminum pan, aluminum pail, aluminum radiator and various aluminum products.
1. Check material and specifications of your work pieces
2. Recommend suitable machine model
3. Send quotation
4. Communication about price, transport and other details
5. Order machine
6. Production machine
7. Delivery goods
8.Tracking goods unitil customers get the machine, help install and instruct operating machine.
Packing for annealing machine
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to R&D,production of HF,SSF,MF induction heating equipment,induction heater machine,adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions
Contact: Dean Guo
Mobile :0086 137 8367 0175
Tel : 0086 371 5501 6296
QQ : 3238426110
Thanks for your visit ! Welcome to cooperate with us!
