China popular Spring rolls induction heater for annealing

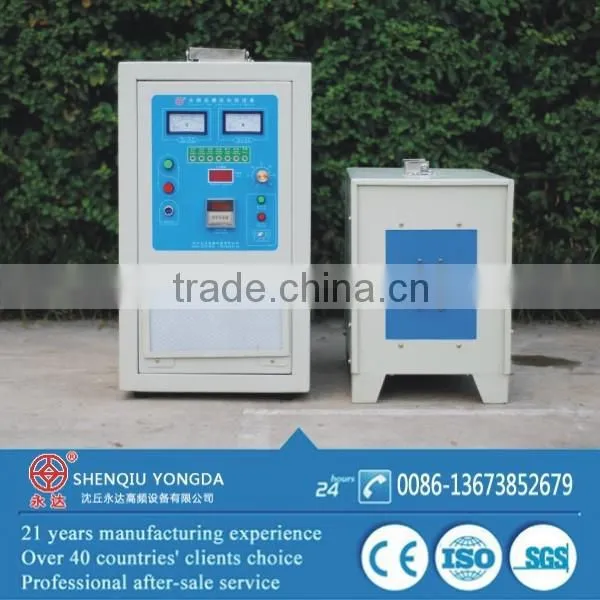

Induction heater for annealing
Technial parameters of induction heater for annealing
Model |
Input voltage |
Input current |
Oscillation frequency |
Cooling water pressure |
WZP-40 |
320-420V |
2-40A |
15-30KHZ |
0.1MPA |
WZP-60 |
320-420V |
3-60A |
15-30KHZ |
0.2MPA |
WZP-90 |
320-420V |
4-90A |
15-30KHZ |
0.3MPA |
WZP-120 |
320-420V |
6-120A |
15-30KHZ |
0.3MPA |
WZP-160 |
320-420V |
6-160A |
15-30KHZ |
0.3MPA |
WZP-200 |
320-420V |
6-200A |
15-30KHZ |
0.3MPA |
WZP-300 |
320-420V |
6-300A |
15-30KHZ |
0.3MPA |
WZP-400 |
320-420V |
6-400A |
8-15KHZ |
0.3MPA |
WZP-500 |
320-420V |
6-500A |
8-15KHZ |
0.3MPA |
Application of induction heater for annealing:
1, annealed stainless steel industry. Such as stainless steel pots, pot annealing stretching, curling, and annealing annealing sink, stainless steel pipe, stainless steel tableware, stainless steel cup;
2, other metal parts of the annealing. Such as golf heads, clubs, Tongsuo head, brass hardware fittings, kitchen knife, blade, aluminum pot, aluminum barrel, aluminum radiator and a variety of aluminum products

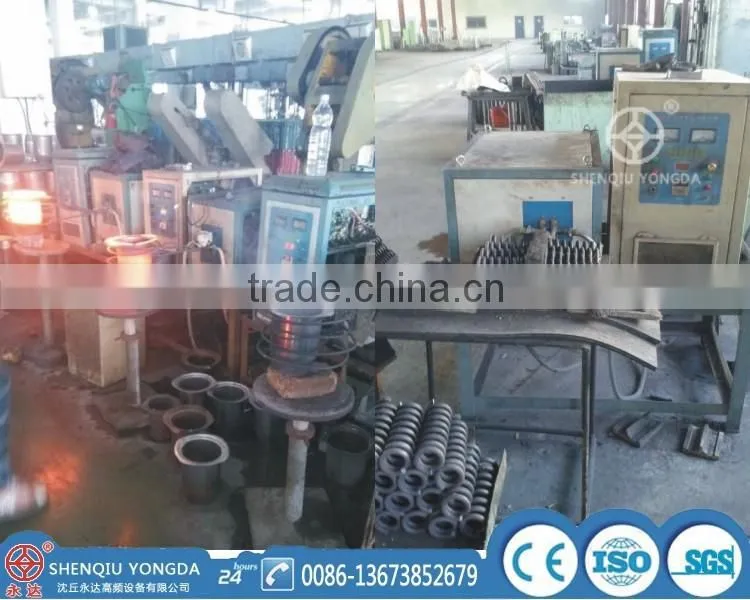

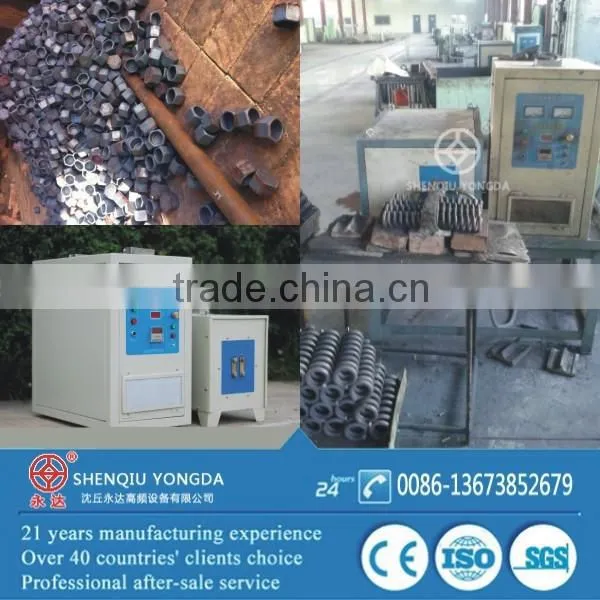

Debugging machine work shop(induction heater for annealing)
Less than one second ,fastest heating rate (speed adjustable ).
2. Protection all:
With over voltage, over current, overheating, lack of water and other alarm indicator, and automatic control and protection.
3. Safe and reliable:
no million-volt high-pressure, very safe for the operator:
Connect the power supply, the use of induction loop and out of the water, small size, light weight, learn to operate a few minutes.
4. High efficiency:
energy saving is very obvious, high-frequency devices than the traditional 60% saving Very even heating.
5.warming up quickly:
after annealing without waste. oxide reduction (sensor density, by adjusting, so that all parts of the workpiece, the coil temperature they need.)
6. Small size, light weight:
Only a few dozen kilograms, small footprint, saving plant. Business environment, protecting the environment, security is no noise, dust and other emissions.
7. Eliminate high pressure:
Eliminating the generation of nearly ten thousand high-voltage step-up changes, security is very high.
8. frequency bandwidth :
to meet the different parts of brazing, heat treatment, heating before forging
9.unique cooling circulation system:
ensure that the equipment 24 hours of continuous work.
We are in exhibition of induction heating
Packing for induction heater for annealing:
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support.
If you have metal wire, rebar need annealing,welcome to inquiry us,we will guidance and recommend you a suitable machine model and give you best price.
