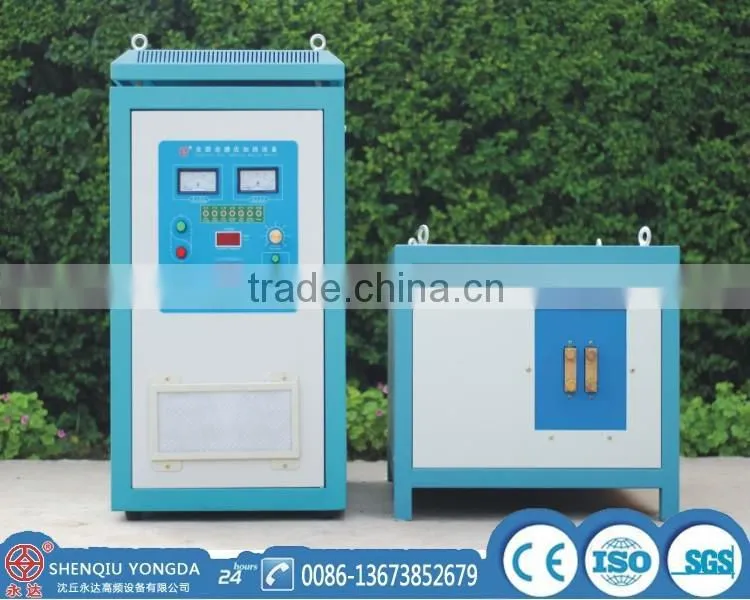

Stainless steel tube induction annealing equipment
- 500 Set / Sets per Month
- Shanghai Qingdao Tianjin Guangzhou or as you request
- T/T L/C D/P D/A Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- four-axis welding machine for commercial sink panel and bowl
- Double Platform Stainless Steel Kitchen Equipment Polishing Machine
- Photovoltaic solar panels recycling plant
- Solar panel recycling machine with high efficiency
- Micro wire mesh weaving machine from LANYING wire mesh weaving machine
Product Details
Place of Origin: | Henan, China | Brand Name: | Yongda | Model Number: | WZP-65KW |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
induction annealing equipment1. igbt, solid sate
2. water cooling
3. stress relieve
4. durable, safe
Stainless steel tube induction annealing equipment
1, annealed stainless steel industry. Such as stainless steel pots, pot annealing stretching, curling, and annealing annealing sink, stainless steel pipe, stainless steel tableware, stainless steel cup;
2, other metal parts of the annealing. Such as golf heads, clubs, Tongsuo head, brass hardware fittings, kitchen knife, blade, aluminum pot, aluminum barrel, aluminum radiator and a variety of aluminum products
2,full range, high frequency, super audio frequency series, Type 40,60,90,120,160,200,300,400,500.
3, small size, light weight, simple installation, easy to operate;
4, high efficiency, energy saving is very obvious, saving 60% energy than traditional high frequency tube equipment, and saving 20% energy compared with SCR-IF induction furnace.
5, safe, reliable, no million-volt high-pressure, very safe for the operator;
6, almost no oxide layer, produced no exhaust, no wastewater is generated.
7, the frequency bandwidth to meet the different parts of the heating before forging, heat treatment, brazing and so on.
Model | WZP-65 |
Work power | 3 phase 380V+/-10%, 50-60HZ |
Input voltage | 320V-420V can be changed, depend on your country's electric power |
Input current | 6-120A |
Input power | 3-65KW adjustable stepless |
Oscillation frequency | 15-30KHZ also can be changed, depend on your work pieces size |
Size of generator | 665*400*730mm |
Size of transformer | 660*490*435mm |
Weight of generator | 48kgs |
Weight of transformer | 66kgs |
Cooling water pressure | 0.3 MPA |
1 Shaft hardened, hardened layer of 1.5-3mm, diameter Φ10mm-250mm, bore all kinds of quenching.
2. Φ5-Φ12 wire annealing.
3 Drill head welding.
4. Φ25 bar through the following heat, the speed is much faster than the SCR. Φ60mm-Φ100mm bar diathermy
5 kinds of chains, sprockets heat treatment
6. Angang 3 meters in diameter hardened gear weight 80 tons
7. Hanjiang River Bridge with Φ1016mm thickness 17.5mm steel heated to 1,000 degrees bending shape.
8. Necking forming various types of pipe heating
9. Copper annealing, wire annealing
10. Machine Tool Gears, Sprockets quenching
11. kinds of heat flared elbow necking.
12. Φ50mm 3mm thick stainless steel annealing

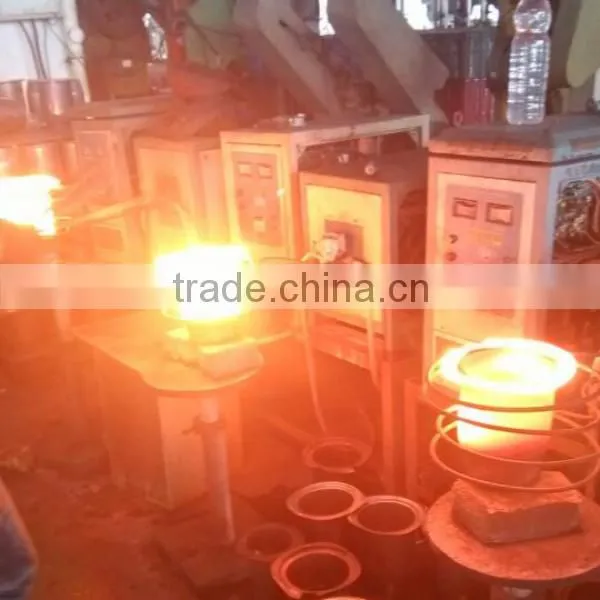

Our machine workshop: only good induction heater will be sent to our customer
Warranty: one year free replacement spare parts.
Excess warranty period, you also can buy the spare parts with discount price.
After-sale servcie: Provide long-terms technical support.
Packing for induction annealing equipment
1.Wooden cases (plywood) or carton,as you request.
2. Inside,will be filled with plastic foam,for waterproof and shockproof.
3.Accessories: induction coils,foot switch and installing and operating instructions
4. Packing size: generator 830*500*880 transformer 830*600*550mm
Shipping: by sea LCL(less than container load) or by air.
Shenqiu Yongda High Frequency Equipment Co.,Ltd was establish in 1996 .
Our product are hot sell in domestic market, also becomming more and more popular in all over the world. Welcome oversea customers to visit us or order machine online.
We are in induction heating industry exhibition
Thanks for your reading ! Welcome to contact us !
