Cold rolled steel wire induction annealing equipment
- 500 Set / Sets per Month
- Shanghai Qingdao Tianjin Guangzhou or as you request
- T/T L/C D/P D/A Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Stainless Steel Double Kitchen Sink Middle Weld Seam Rolling Machine
- Stainless steel handmade sink hydraulic power of light direct press
- Stainless steel handmade sink R corner press machine Electrical box R corner press machine
- DOING supply photovoltaic solar panels recycling machine
- four-axis welding machine for commercial sink panel and bowl
Product Details
Place of Origin: | Henan, China | Brand Name: | yongda | Model Number: | WZP-45 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
induction annealing equipment1. igbt system,save energy
2. power adjustable
3.no pollution
4.stress relieve
Cold rolled steel wire induction annealing equipment
Technical parameters of induction annealing equipment
Model(KW) | Input voltage | Input current | Oscillation frequency | Cooling water pressure |
WZP-16 | 320-420V | 2-40A | 15-30KHZ | 0.1MPA |
WZP-36 | 320-420V | 3-60A | 15-30KHZ | 0.2MPA |
WZP-50 | 320-420V | 4-90A | 15-30KHZ | 0.3MPA |
WZP-65 | 320-420V | 6-120A | 15-30KHZ | 0.3MPA |
WZP-85 | 320-420V | 6-160A | 15-30KHZ | 0.3MPA |
WZP-120 | 320-420V | 6-200A | 15-30KHZ | 0.3MPA |
WZP-160 | 320-420V | 6-300A | 15-30KHZ | 0.3MPA |
WZP-200 | 320-420V | 6-400A | 8-15KHZ | 0.3MPA |
WZP-260 | 320-420V | 6-500A | 8-15KHZ | 0.3MPA |

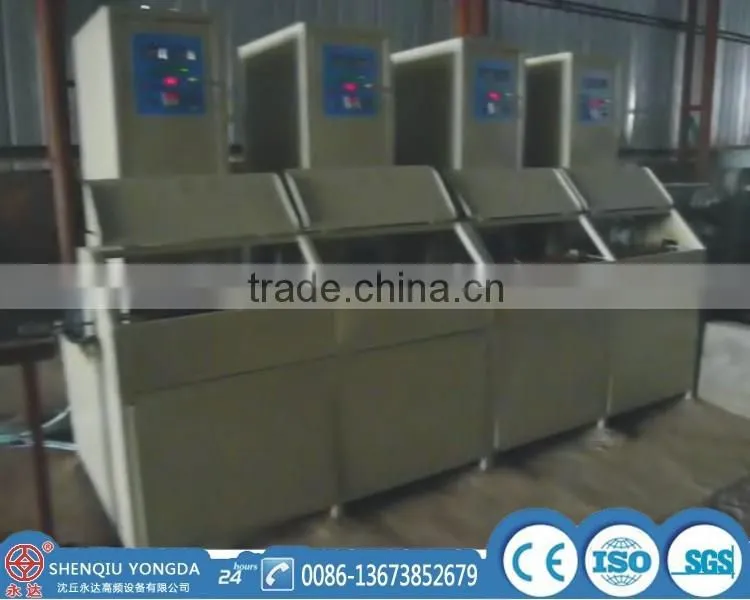

New high-frequency cold-rolled ribbed steel bar production line.
Rational layout, stable, adjustable speed, easy operation, so the entire production line automation, continuous, high-speed operation. Not only significantly improve the cold-rolled ribbed bar elongation, while making technology, product quality, industrial scale to achieve a breakthrough. Chinese construction steel products by the Quality Supervision and Testing Center, the yield strength of 545-565Mpa, tensile strength 630-680Mpa, elongation A5.65. To reach 18.5% ~ 22.0%, high strength, good elongation, fully meet the 500Mpa The mechanical properties of steel.
New technology has the following characteristics:
(1) through the tempering temperature control technology to significantly improve product elongation, good mechanical properties, to overcome the low ductility of cold-rolled ribbed steel industry problems.
(2) cold rolling and tempering treatment combine to make the sum of two strengthening effect, grain refinement to improve the internal organization to improve the strength of steel, and to ensure the accuracy of the dimensions to become a science of cold rolling deformation heat treatment technology, to promote large-scale industrial development of products to achieve cold-rolled ribbed steel bar in the optimization of a major breakthrough in technology products.
(3) ordinary carbon steel as raw material, through cold and tempering treatment, the condition of yield strength to 500Mpa level, which means reduction using steel, mechanical properties, according to industry experts, each increase of steel strength level of 100MPa, Steel can save 10% to 20%. Way for the use of cold-rolled steel production of high-saving building opens up a new path. This is to improve cold-rolled ribbed steel production process and product optimization is about.
High-frequency sides of ribbed steel production line
Outstanding advantages: the layout is reasonable, stable, adjustable speed, easy operation, so the whole production line automation, continuous, high-speed operation.
Technical process:
1, with the following Φ 12 million hot-rolled steel plate machined threaded through the cold-rolled steel product size: Φ5, Φ7, Φ9, Φ11, Φ12
2, then by high-frequency electric heating equipment to make steel in the wear process of rapid water level increases from 850 down to 400 degrees, steel shiny black color rendering.
Features of steel after high frequency heat-treated :
1, the yield strength of 545-565Mpa, tensile strength 630-680Mpa, elongation A5.65. 18.5% 22.0%
2, high strength, good elongation, fully meet the 500Mpa mechanical properties of steel.
3, reinforced by the State Bureau of Quality Supervision testing over three steel standards.
2,full range, high frequency, super audio frequency series, Type 40,60,90,120,160,200,300,400,500.
3, small size, light weight, simple installation, easy to operate;
4, high efficiency, energy saving is very obvious, saving 60% energy than traditional high frequency tube equipment, and saving 20% energy compared with SCR-IF induction furnace.
5, safe, reliable, no million-volt high-pressure, very safe for the operator;
6, almost no oxide layer, produced no exhaust, no wastewater is generated.
7, the frequency bandwidth to meet the different parts of the heating before forging, heat treatment, brazing and so on.
1. Reply your inquiry within 24 hours
2. Recommend suitable machine model,according to your work piece specifications and heating requirements.
3. Send detailed product parameters, photos and price.
4. Solve all the problem , such as shipping cost, shipping time,delivery time, warranty etc,what you concerned.
5. Reach an agreements, sign proforma invoice or contract.
6. Produce induction heating equipment strictly based on the PI/contract.
7. Arrange goods shipment
8.Tracking goods and help you install and operating machines.
9. Email or Call visit.
10.Provide long-terms technical support.
If you have wire require annealing,please kindly tell us specifications of wire, heating speed, annealing temperature, these help us to recommend you a suitable machine model and give you best price.
Thanks for your reading our products !
