Kithen ware Induction annealing heating machine
- 500 Set / Sets per Month
- Shanghai Qingdao Tianjin Guangzhou or as you request
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Other, annealing inductoin machine | Usage: | Other, annealing |
Place of Origin: | Henan, China | Brand Name: | Yongda | Model Number: | WZP-45KW |
Voltage: | 380V+/-10% | Power(W): | 45KW | Dimension(L*W*H): | generator 6650*400*730mm transformer 660*490*435mm |
Weight: | 110KGS | Certification: | ISO9001 | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
annealing heating machine1. igbt induction system
2. small size,light weight
3. 24 hours work
4. heating fast
Kithen ware Induction annealing heating machine
Annealing (annealing, quenching):
1, annealed stainless steel industry. Such as stainless steel pots, pot annealing stretching, curling, and annealing annealing sink, stainless steel pipe, stainless steel tableware, stainless steel cup;
2, other metal parts of the annealing. Such as golf heads, clubs, Tongsuo head, brass hardware fittings, kitchen knife, blade, aluminum pot, aluminum barrel, aluminum radiator and a variety of aluminum products
Technical parameters of WZP-45KW annealing heating machine
Model | Work power | Output power | Oscillation frequency | Output current | Cooling water pressure | Size | Weight |
WZP-45 | three phase 380V+/-10% 50-60HZ | 3-45KW | 15-30KHZ | 3-0A | 0.1MPA | generator 665×400×730mm transformer 660×490×435mm | 62kgs; 47kgs |
Annealing heating machine : include generator, transformer and induction coils
Features of annealing heating machine
1, small size, light weight, simple installation, easy operation.
2, high efficiency, energy saving is very clear, high-frequency equipment save 60% energy than traditional
3, secure, reliable, non-million-volt high-pressure, very safe for the operator.
4, the frequency bandwidth to meet the different parts of brazing, heat treatment, heating before forging.
5, a unique cooling circulation system, ensure that the equipment 24 hours of continuous work.
Model | Input voltage | Input current | Oscillation frequency | Cooling water pressure |
WZP-15 | 320-420V | 2-40A | 15-30KHZ | 0.1MPA |
WZP-35 | 320-420V | 3-60A | 15-30KHZ | 0.2MPA |
WZP-45 | 320-420V | 4-90A | 15-30KHZ | 0.3MPA |
WZP-65 | 320-420V | 6-120A | 15-30KHZ | 0.3MPA |
WZP-90 | 320-420V | 6-160A | 15-30KHZ | 0.3MPA |
WZP-120 | 320-420V | 6-200A | 15-30KHZ | 0.3MPA |
WZP-160 | 320-420V | 6-300A | 15-30KHZ | 0.3MPA |
WZP-200 | 320-420V | 6-400A | 8-15KHZ | 0.3MPA |
WZP-260 | 320-420V | 6-500A | 8-15KHZ | 0.3MPA |

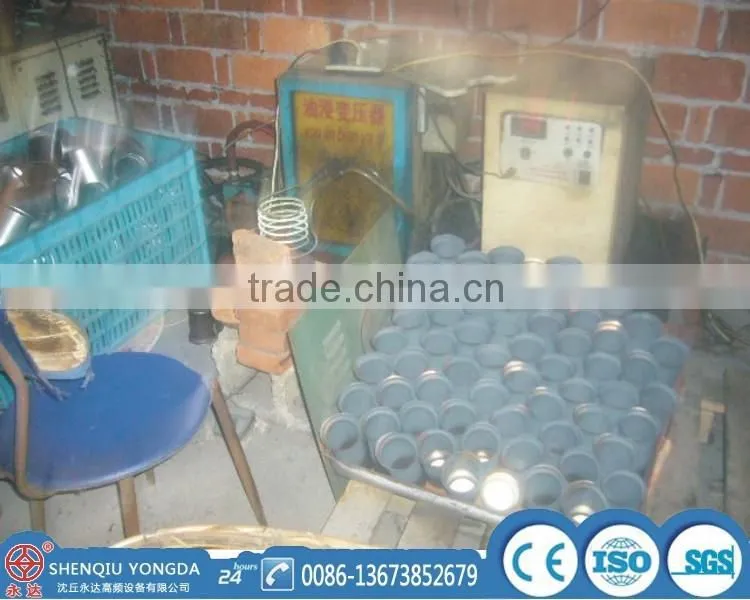

Vacuum cup annealing 35KW annealing induction machine

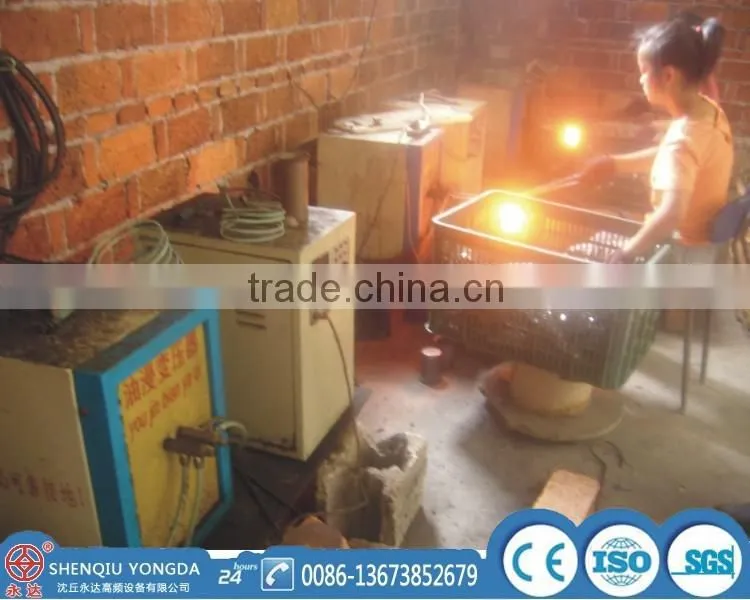

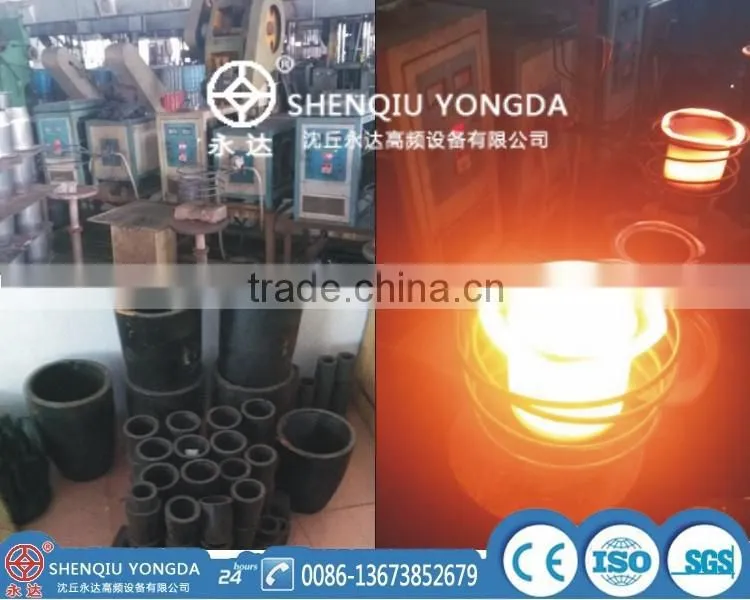

Our workshop
Control panel of annealing induction machine
Water and electricity connection
Packing for induction annealing heating machine
Wooden cases (plywood) or carton. As your required.
Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
1. Reply your inquiry within 24 hours
2. Recommend suitable machine model,according to your work piece specifications and heating requirements.
3. Send detailed product parameters, photos and price.
4. Solve all the problem , such as shipping cost, shipping time,delivery time, warranty etc,what you concerned.
5. Reach an agreements, sign proforma invoice or contract.
6. Produce induction heating equipment strictly based on the PI/contract.
7. Arrange goods shipment
8.Tracking goods and help you install and operating machines.
9. Email or Call visit.
10.Provide long-terms technical support.
Thanks for your reading !
If you are interted in high frequency induction annealing heating machine , please feel free to inquiry us ! Since 1996,we have many years experience in induction heatingfield. We will provide you the best servcie as best as we can.
