Specifications
induction annealing machine1. save energy igbt
2. power: 3-45KW
3. heat fast
4. stress relieve

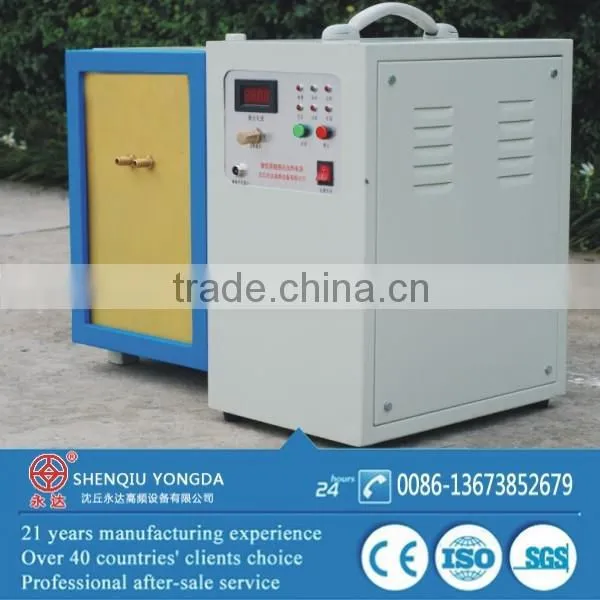

Stainless steel induction annealing machine
1. IGBT modules, save energy than traditional high frequency tube heater.
2. Protect full.Over current.over voltage,lack of phase,water shortage, etc. more than ten alarm lamps.
3. Heating fast.Within1 second ,temperature rise up to 1200 degree,even higher.
4. No need contacting work pieces, safety, safe and reliable.
5. Environmental friendly,no pollution, good for worker's health
6. Easy to change induction coils, for heating different shape of steel billet
7. Easy to install and operate.
8. Low maintenance cost
Model(KW) | Input voltage | Input current | Oscillation frequency | Cooling water pressure |
WZP-15 | 320-420V | 2-40A | 15-30KHZ | 0.1MPA |
WZP-35 | 320-420V | 3-60A | 15-30KHZ | 0.2MPA |
WZP-45 | 320-420V | 4-90A | 15-30KHZ | 0.3MPA |
WZP-65 | 320-420V | 6-120A | 15-30KHZ | 0.3MPA |
WZP-85 | 320-420V | 6-160A | 15-30KHZ | 0.3MPA |
WZP-120 | 320-420V | 6-200A | 15-30KHZ | 0.3MPA |
WZP-160 | 320-420V | 6-300A | 15-30KHZ | 0.3MPA |
WZP-200 | 320-420V | 6-400A | 8-15KHZ | 0.3MPA |
WZP-260 | 320-420V | 6-500A | 8-15KHZ | 0.3MPA |
Annealing (annealing, quenching):
1, annealed stainless steel industry. Such as stainless steel pots, pot annealing stretching, curling, and annealing annealing sink, stainless steel pipe, stainless steel tableware, stainless steel cup;
2, other metal parts of the annealing. Such as golf heads, clubs, Tongsuo head, brass hardware fittings, kitchen knife, blade, aluminum pot, aluminum barrel, aluminum radiator and a variety of aluminum products

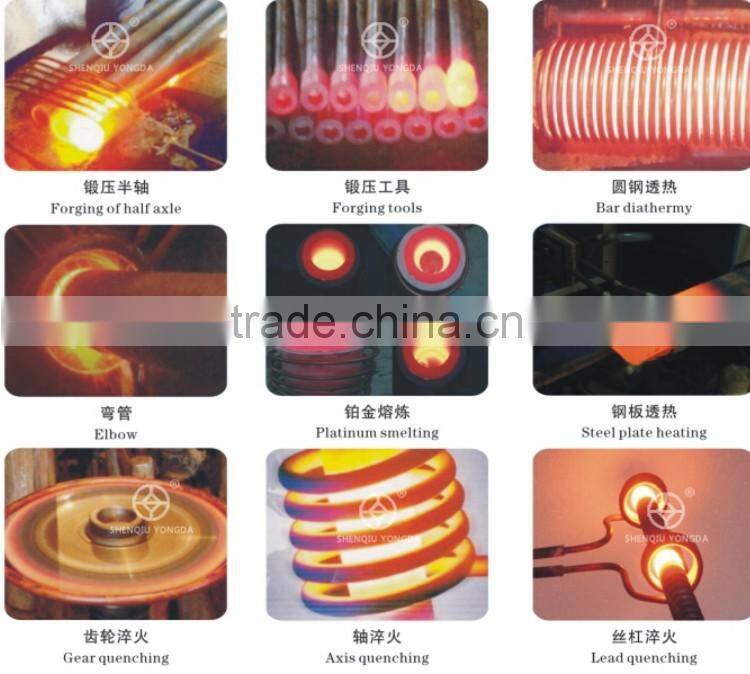

Use cases of induction heating machine
1 Shaft hardened, hardened layer of 1.5-3mm, diameter Φ10mm-250mm, bore all kinds of quenching.
2. Φ5-Φ12 wire annealing.
3 Drill head welding.
4. Φ25 bar through the following heat, the speed is much faster than the SCR. Φ60mm-Φ100mm bar diathermy
5 kinds of chains, sprockets heat treatment
6. Angang 3 meters in diameter hardened gear weight 80 tons
7. Hanjiang River Bridge with Φ1016mm thickness 17.5mm steel heated to 1,000 degrees bending shape.
8. Necking forming various types of pipe heating
9. Copper annealing, wire annealing
10. Machine Tool Gears, Sprockets quenching
11. kinds of heat flared elbow necking.
12. Φ50mm 3mm thick stainless steel annealing
Work shop : debugging igbt induction heating machine
Packing of induction annealing machine :
1.Carton or wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
2.Accessories: induction coils,foot switch and installing and operating instructions
3. Size : generator 830*500*880mm transformer 830*600*550mm
4.Weight: 110kgs -120kgs
4.Shipping: by sea LCL(less than container load) or by air.
Packing machines
1. Reply your inquiry within 24 hours
2. Recommend suitable machine model,according to your work piece specifications and heating requirements.
3. Send detailed product parameters, photos and price.
4. Solve all the problem , such as shipping cost, shipping time,delivery time, warranty etc,what you concerned.
5. Reach an agreements, sign proforma invoice or contract.
6. Produce induction heating equipment strictly based on the PI/contract.
7. Arrange goods shipment
8.Tracking goods and help you install and operating machines.
9. Email or Call visit.
10.Provide long-terms technical support.
We are professional manufacture of hf, ssf, mf induction heating equipment, used for heating metal. Over 21 years induction heating technology experience. Choose shenqiu Yongda hf equipment Co.,ltd, high quality, competitive price,best service.
In induction heating exhibition, many oversea customers are interested in Yongda brand induction heating equipment.
Welcome to contact us !
In order save time and improve communicate efficiency,please kindly also tell us specifications of your work pieces and heating requirements:such as heating temperature, time requirments(output per hour),local or whole parts heating, application/purpose etc.
So that we will recommend you suitable machine model as soon as possible.
If you know little about induction heating equipment,it doesn't matter,please direct send us inquiry. Let us help you !
