Auto feeder with upload induction heating steel rod dia. 50 and 60mm for forging
160kw induction heating machine
WZP-160kw |
|
Work power: |
3 phase 380V+/-10%, 50-60HZ |
Input voltage: |
320V-420V |
Input current: |
6-300A |
Oscillation frequency: |
10-50khz |
Cooling water pressure |
0.3MPA |
Size of generator: |
850*600*1330mm |
Size of transformer |
780*540*520mm |
Weight of generator |
147kgs |
Weight of transformer |
108kgs |
Water cooling temperature protection point |
Below 50 degree |
Accessories |
+High frequency cable 2 piece +Induction coils 2 piece +Foot switch 1 piece +Shunt water valve 1 piece +Water hose (standard configuration) +User Manual 1 piece |
What advantages of Yongda induction heating machine have ?
1. IGBT modules, save energy than traditional high frequency tube heater.
2. Protect full.Over current.over voltage,lack of phase,water shortage, etc. more than ten alarm lamps.
3. Heating fast.Within1 second ,temperature rise up to 1200 degree,even higher.
4. No need contacting work pieces, safety, safe and reliable.
5. Environmental friendly,no pollution, good for worker's health
6. Easy to change induction coils, for heating different shape of steel billet
7. Easy to install and operate.
8. Low maintenance cost
Applications of induction heating for forging machine
1- Hot forging diameter 10-70mm round steel
2- Heating rod head for forging, making bolts, nuts .
3- Induction forging spring rods, leaf spring
4- Induction heating aluminium billets for forging
5- Hot forging brass copper rod for forging
6- Hot forging angle steel for forming,bending
7- Heating wrought iron for forging
8- Induction forging standard parts ,fasteners

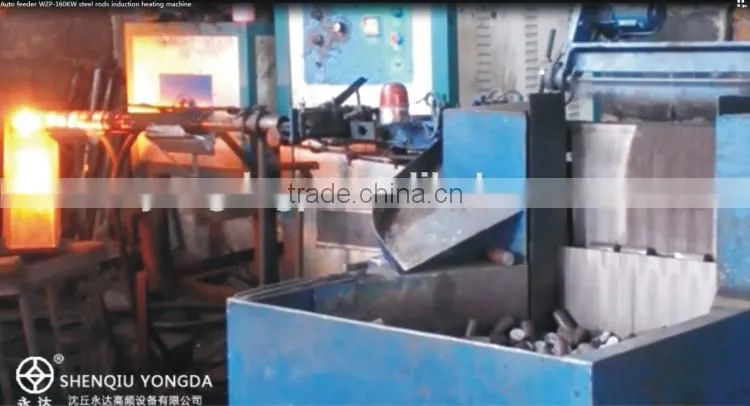

Forging steel rod by manual feeding
Packing for induction heating steel rod machine
1.Two wooden cases (plywood) ,as you request.
Inside,will be filled with plastic foam,for waterproof and shockproof.
2.Accessories: high frequency cable 2 pcs, (connect generator and transformer)induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air/train etc.
1. One year free replacement spare parts
2. Provide long-terms technical support
3. Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
4.Calling and video ,or email helps you install machine.
5. Customer service staff will sk your opinion about the machine usage
Sincerely provide service for you!
