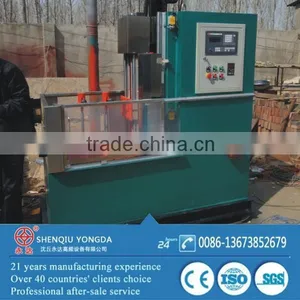

Double axis induction hardening machine tool
- 500 Set / Sets per Month
- Shanghai Qingdao Tianjin Guangzhou or as you request
- T/T L/C D/P D/A Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Jotun JT-SDJ Industrial Automatic Metal Sheet Surface Polishing Machine
- Large Metal Sheet Metal Workpiece Processing Deburring Chamfering Plane Belt Polishing Machine
- Heavy Duty Automatic Wide Belt Metal Sand Deburring Machine
- Metal Plate Deburring and Rust Removal Machine Steel Plate Sand Belt Drawing and Polishing Equipment Flat Polishing Machine
- Metal Flat Sheet Laser Cutting Parts Deburring Grinding Polishing Machine Manufacturer
Product Details
Place of Origin: | Henan, China | Brand Name: | Yongda | Model Number: | YD150-100 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
induction hardening machine tool1. lead screw design
2. hardening length:1500mm
3. hardening diameter 1000mm
4. digital

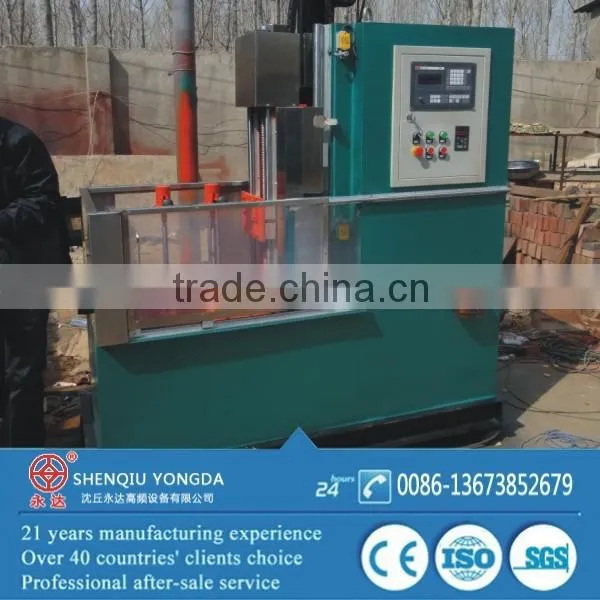

Double axis induction hardening machine tool
Usage : induction hardening machine tool is mainly used for shafts, gears hardening, high automatic degree,high precision.
Features of induction hardening machine tool
1, the machine uses PC-industrial digital control systems, high performance, debug and easy to use, to the greatest degree of quenching the workpiece to meet the complex needs.
2, the machine can achieve quenching mode: continuous scan quenching, and quenching, sub-continuous scanning quenching (by the level of sub-setting, no limit switch, the same below), while sub-quenching.
3, this machine is suitable for the typical artifacts (in the appropriate size range) axis: a variety of shaft, step shaft, gear shaft, cam shaft, axle, the cylindrical disk-type parts, end so on.
4, the machine control system for reserve electrical heating and cooling water quenching control interface. According to the process of quenching process and the need to control the cooling process.
5, low running costs. Just run the workpiece drive motor 250W, machine power consumption less than one-fifth of machinery and equipment.
6, the fuselage structure by profile, low cost, light weight, economical and practical.
7, easy maintenance, low failure rate, no leakage.
8 high degree of automation and production efficiency.
9, rail uses linear bearings, high precision, small friction, long life.
10, with heavy equipment through the sprocket, chain balance the weight.

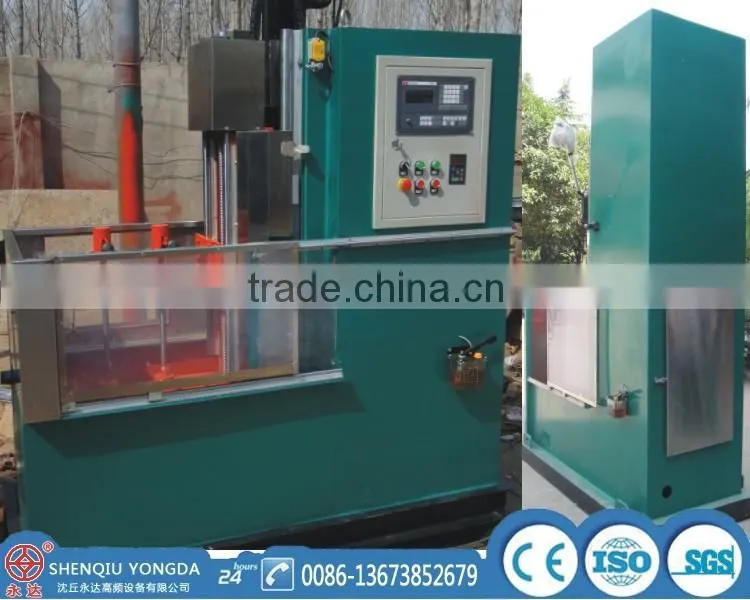

Double axis induction hardening machine tool
Single axis or double axis induction hardening tool , my company can produce both of them. Double axis can hardening two shafts at one time.
Technical parameters of induction hardening machine tool
Specifications and model | YD50-35 | YD80-50 | YD100-60 | YD120-80 | YD150-100 |
Max. hardening diameter | 350 | 500 | 600 | 800 | 1000 |
Max. hardening length | 500 | 500 | 1000 | 1200 | 1500 |
Max. work piece weight | 50 | 100 | 150 | 300 | 400 |
Work piece move range | 1-50 | 1-50 | 1-50 | 1-50 | 1-50 |
Cooling method | Immersion liquid | Immersion liquid | Immersion liquid | Immersion liquid | Immersion liquid |
Processing work pieces | Gears, shafts type, disc type etc. |

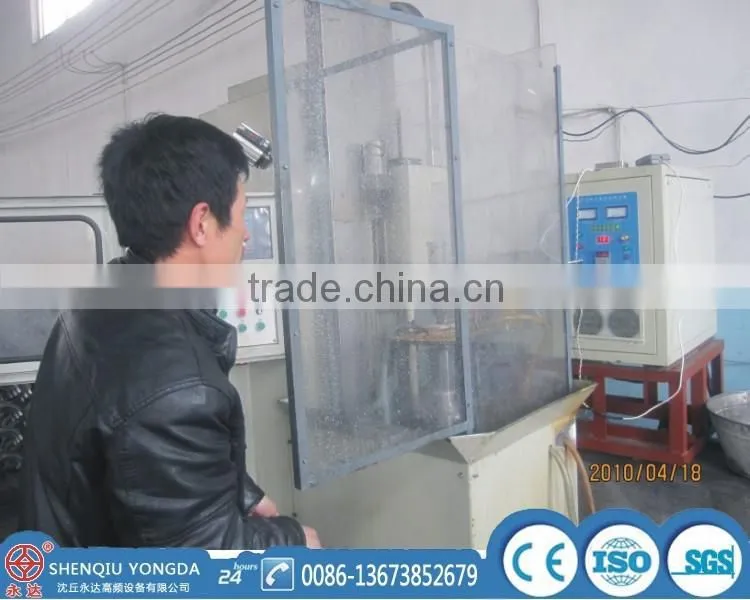

CNC induction hardening machine tool working onsite
Induction hardening power supply
Axis/shaft induction hardening
Camshaft induction hardening
We are in induction heating industry exhibition
Oversea customers

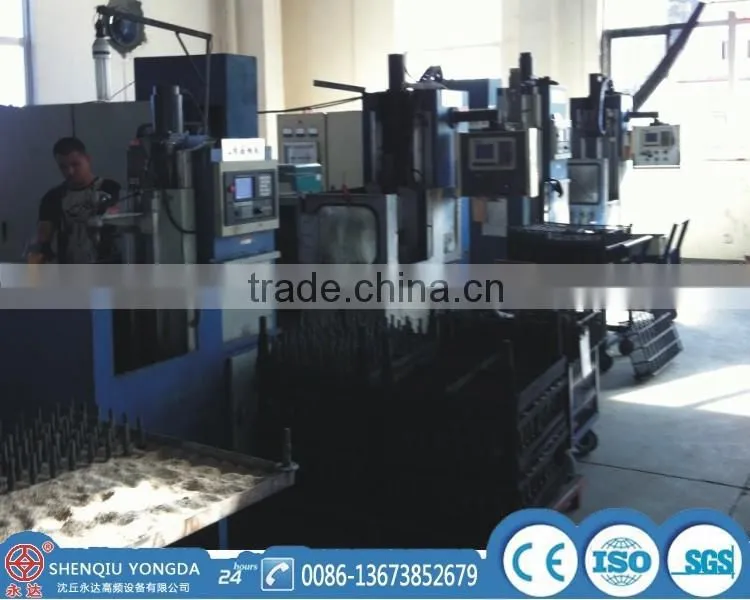

Our factory
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support
Packing for induction hardening power supply
1.Wooden cases (plywood) or carton,as you request.
Inside,will be filled with plastic foam,for waterproof and shockproof.
2.Accessories: high frequency cable 2 pcs, (connect generator and transformer)induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
