Specifications
induction heating machine tool:1. 20 years experience
2. Siemens IGBT modules
c hardening machine tool
4. ISO9001

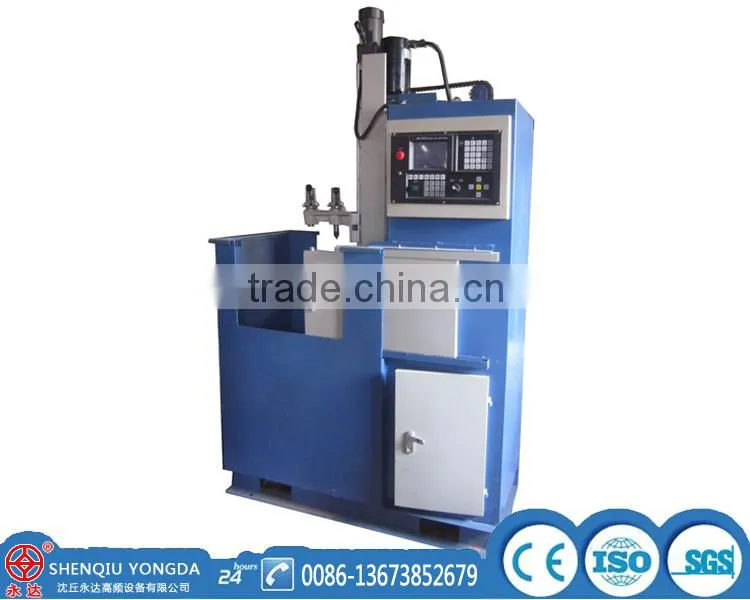

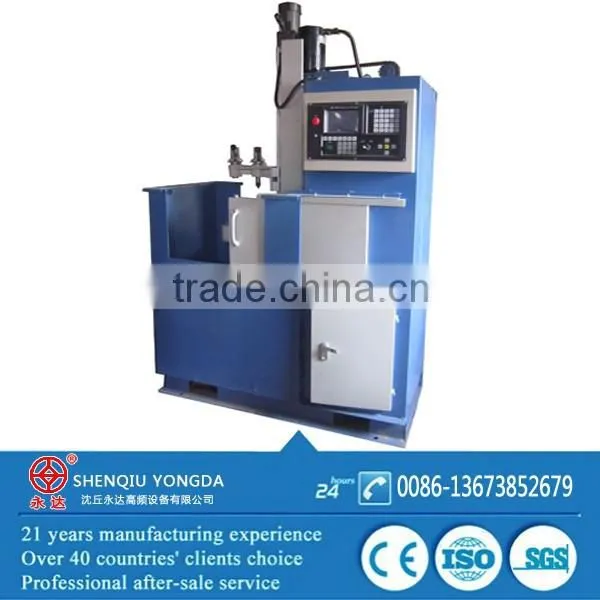

Full solid state induction heating hardening machine tool equipment
1. The machine adopts hydraulic control, advanced circuit design, make the machine more stable
2. Imported hydraulic components, long life, without regular replacement parts
3. The electrical control circuit design is novel, simple, easy to understand, low failure rate
4. The machine tool lift up and down can be hydraulic adjusted stepless, improve quenching quality
5. The machine has complete functions, can meet a variety of workpieces quenching
6. The machine can be added customized functions, according to user's needs
Technial parameters of induction heating hardening machine tool
Specifications and model |
YD50-35 |
YD80-50 |
YD100-60 |
YD120-80 |
YD150-100 |
|
Max hardening diameter |
350 |
500 |
600 |
800 |
1000 |
|
Max hardening length |
500 |
500 |
1000 |
1200 |
1500 |
|
Max work piece weight |
50 |
100 |
150 |
300 |
400 |
|
Work piece move range |
1-50 |
1-50 |
1-50 |
1-50 |
1-50 |
|
Cooling method |
Immersion liquid |
Immersion liquid |
Immersion liquid |
Immersion liquid |
Immersion liquid |
|
Processing work pieces |
Gears, shafts type, disc type etc. |
|||||
Part 2. WZP-120 Induction heating hardening machine
Main parameters of induction heating hardening machine
1.Super audio induction heating power supply WZP-120
2.Frequency: 15-35KHZ
3.Adjustable Power: 10-120 KW
4.Longitudinal rails:6m,8m,10m,12m
5.Longitudinal effective stroke:5m,7m,9m,11m
6.Longitudinal movement speed:slow adjusable,quick conversion
7.Lateral movement range:800-1000mm
8.Lifting travel range:500-600mm,adjustable speed
9.The maximum width of quenching surface: 360mm
10.Maximum adaptation lathe bed width:1000mm

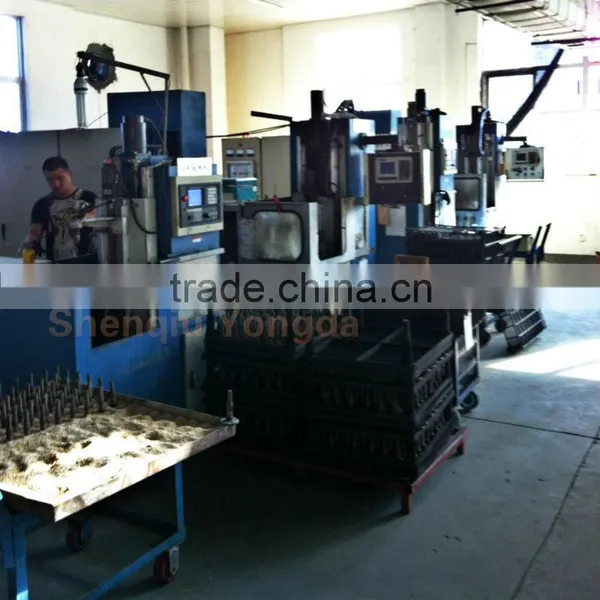

Debugging machine work shop
Our product quality certifications: ISO9001:2000
Packing induction hardening machine tool:
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
Pre-sale service:
We will recommend the most applicable equipment for customers according to your work piece processing demands.
In-sale service:
(1) We will strictly produce the equipment according to relevant technical standards.
(2) We will take run test according to relevant equipment test run regulations.
(3) We will strictly inspect the equipment before delivery,only good machine will be sent to customers.
(4) We will send goods as scheduled in the contract.
After-sale service:
(1) We will freely guide installation, commissioning and test run,by sending intall drawings, sometimes calling or send email.
(2) We will execute one-year guarantee period (ex. not include normal wear, damages of wearing parts and parts damages caused by improper operation).
(3) Once there is a trouble during quality guarantee period, our company promises that we will promptly appoint engineer and sales to help, make our efforts to remove troubles and guarantee the normal operation of customers.
(4) We will freely replace all equipment parts during guarantee period. After-sale products archives and life-long repair solve the potential problems of customers.
(5) Provide long-terms technical support. Also for different work pieces , give instructions and help about how to produce inductors.
(6) According to customer’s need, can arrange engineer to install ,test machine and training operators.
(7) After guarantee period, customer can buy machine parts from us with very low cost.
What’s your MOQ? |
Any quantity of machine will be accepted. MOQ:1 Set |
Which place your factory is located? |
We are located in Shenqiu County, Zhoukou city, Henan Province ,China |
How far from Beijing? I think it is more closer to Shanghai |
Our factory is near both and Shanghai. We have office in Zhengzhou, we can pick up you at Zhengzhou CGO airport,and then to our factory via expressway about two hours. |
We need to see some more videos for production line and also pictures of your factory, water drawing and panel drawing |
Well, we have many videos show our customer’s machine working scene(Various of applications: forging,hardening, brazing, shrink fitting, melting and hot coating etc. According to your work piece processing requirements,) send you the corresponding video link or send by email. 2. Yes, we can provide you factory pictures and machine water connection and control panel details. |
Do you have quality certifications? |
Yes, we got the ISO9001:2000 International quality management system certification in August,2001, |
How do you packing the machines? |
Standard export wooden cases(plywood) Usually every set machine will be used two wooden cases: one for packing induction heating generator, one for packing transformer. Inside will be filled with plastic foam for waterproof and shockproof |
More questions….? |
Updating… |
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to R&D,production of HF,SSF,MF induction heating equipment,adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions.
