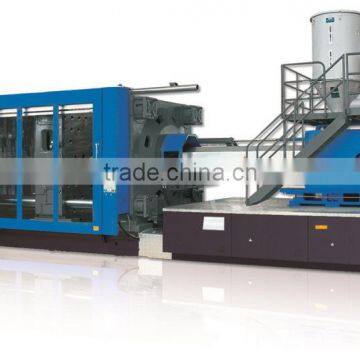

HDJS1100 plastic box injection molding machine
- 20 Set / Sets per Month
- Ningbo
- T/T D/P D/A
Product Details
Condition: | New | Type: | Tube Shoulder Injection | Style: | Horizontal |
Brand Name: | Haida | Model Number: | HDJS | Place of Origin: | Zhejiang, China |
Plastic Type: | Thermoplastic | Automatic: | Yes | Injection Weight: | 5881G |
Injection Rate: | 145g/s-208g/s | Clamping Force: | 11000KN | Opening Stroke: | 1220MM |
Power(W): | 45+45KW | Certification: | ISO9001/CE/BV | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
HDJS1100 plastic chair injection molding machine
ITEM | UNIT | DATA | |||
Injection | Screw Diameter | mm | 110 | 120 | 130 |
Screw L/D Ratio | L/D | 22 | 20.2 | 18.6 | |
Injection Volume | cm3 | 4942 | 5881 | 6902 | |
Shot Weight | g | 4670 | 5558 | 6523 | |
Injection Pressure | Mpa | 184 | 155 | 132 | |
Clamping | Clamping Force | KN | 11000 | ||
Opening Stroke | mm | 1220 | |||
Mould Thickness(Min-Max) | mm | 500-1250 | |||
Space Between Tie-Bars | mm | 1160×1160 | |||
Ejector Stroke | mm | 282.6 | |||
General | Motor Power | KW | 45+45 | ||
Heater | KW | 58 | |||
Pump Pressure | Mpa | 16 | |||
Machine Dimension | m | 12.7×2.8×2.8 | |||
Machine Weight | T | 60 | |||
Mould Orientation Ring Diameter | mm | Φ250 | |||
Nozzle Radius | mm | SR20 |
other similar machine:
SUPERIOR ENERGY EFFICIENCY
To save power consumption
Cooling phase, the motor does not need to work,powe consumption is 0. Compared with the traditional injection molding machine can save electricity <80%
To save water and fuel
Compard with the traditional hydraulic power system of the hydraulic oil consumption reduce 1/4~1/3, can achieve without cooling, thus greatly saving water. Living longer 2~3 Double.
IMPROVE THE PRODUCTION EFFICIENCY
Quick response and high efficiency
Injection molding machine to achieve maximum output in 0.05s
50rpm can be up to 140bar
High repeat precision,save raw materials
Repeated injection precision can reach <=3%
Pressure is stable, improve the quality of molding
Pressure fluctuation quantity is less than +/-0.5bar
STABLE AT LOW SPEED
Closed-loop control pressure and flow, at low pressure and low flow operation performance is particularly outstanding, shoot rubber speed in less than 1 mm/sec without crawing,pluse,high stability. System according to the actual product process requirements, set arbitrary pressure and flow, avoid excess heat generation, the oil temperature relative to the traditional injection molding machines is stable. In addition, the pressure stability of the pressure and flow rate, high control accuracy and repeat precision.
MACHINE SERVICE LIFE LONGER AND CLEANER WORKING ENVIRONMENT
Less noise emissioins
The noise of th hydraulic system control within the scope of the national standard.
Low heat and cooling energy demand is low, more suitable for production environment with air conditioning.
Injection molding machine boot into the steady-state oil temperature rise of 8oc-10oc
