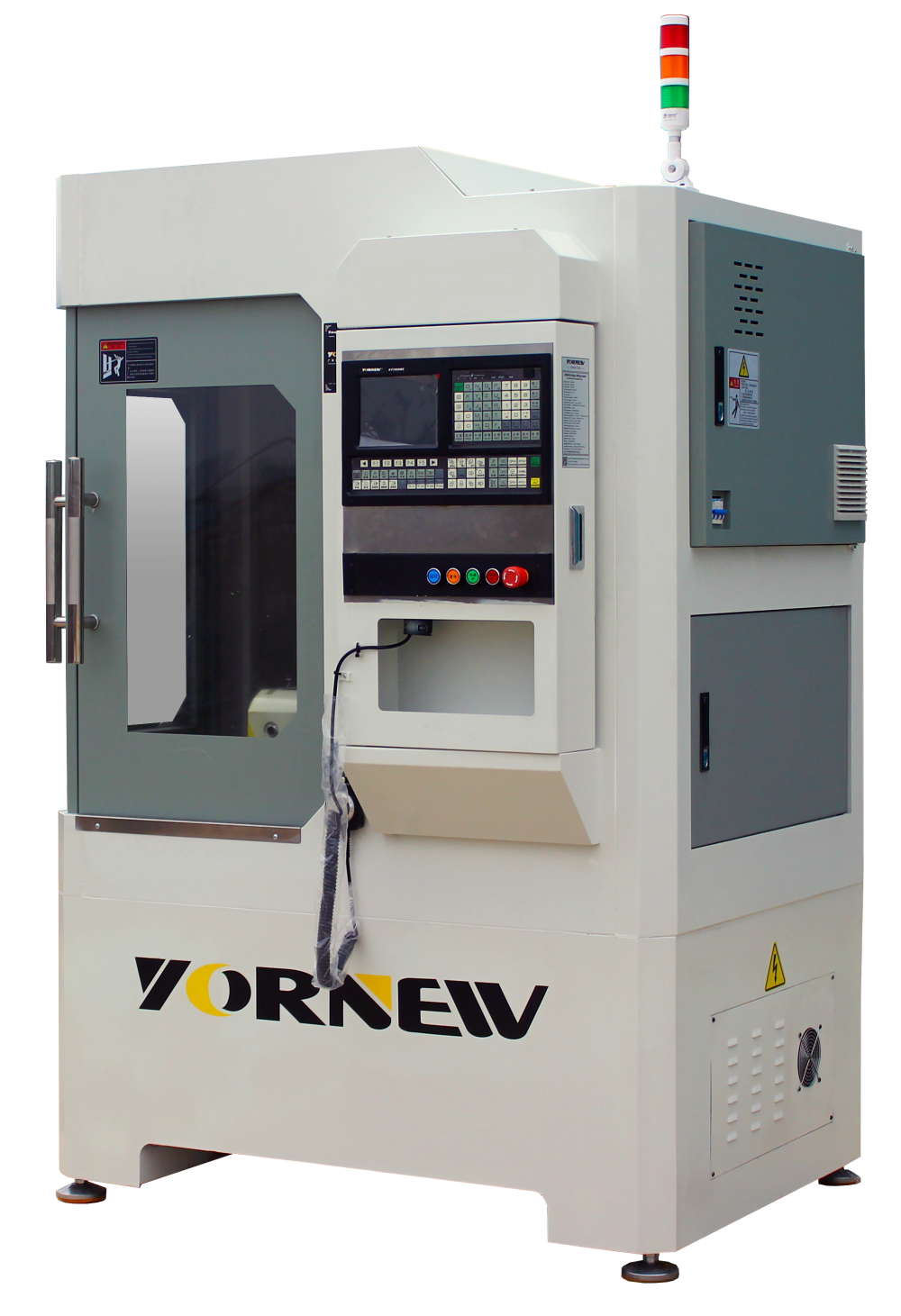

MX400 Small Drilling & Milling Center

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Yornew	Place of Origin	China
Model Number	MX400	Type	Vertical
After-sales Service Provided	No overseas service provided	Weight	2000kg
Dimension(LWH)	155013502200mm	Voltage	3 Phase 380V
Condition	New

Spindle type		Mechanical		High-speed
Max Spindle Speed	rpm	6000		24000
Spindle Power	Kw	2.6	3	4.5
Spindle Taper		BT30
Repeat positioning accuracy	mm	±0.01
X Axis Travel	mm	400
Y Axis Travel	mm	500
Z Axis Travel	mm	200
Motor Power(X/Y)	Kw	0.75 AC Servo
Motor Power(Z)	Kw	1.2 AC Servo
Rapid feed rate(X/Y)	Mm/min	35000
Rapid feed rate(Z)	Mm/min	25000
Cutting feed rate	Mm/min	10000
ATC tool number		8
Pneumatic supply	MPa	0.6
Collet chuck		ER25
Tool DIA. range	mm	1-16
Transmission		Taiwan P grade Ball Screw
Guide rail		Taiwan High-precision C3 linear guide rail
Table size	mm	*400500**
Max. Load	Kg	200
Power supply		3 phase 380V
Weight	kg	2000/2100
Machine Size	Mm	*140011002000*
Packing Size	Mm	*155013502250*
4^th axis (optional)	Mm	Φ125		Φ170
