Small PET Bottle Injection Molding Machine / Preform Making Machine
- 1000 per Month
- T/T Credit Card
- Industrial Reusable Glass Bottle Washing Machine Price
- Automatic glass bottle washing machine with label removal
- Recycled Wine / Whisky / Vodka Small Glass Bottle Remove Label Washing Machine
- Automatic wine glass bottle washing machine / plant / washer with remove label
- Recycled glass bottle washing machine / wine bottle washer / bottle beer washer
- Automatic used bottle washing Machine / wine glass washer
Product Description

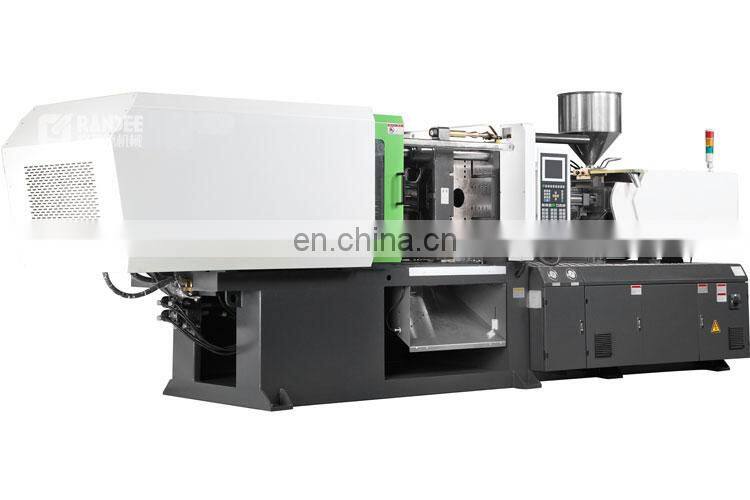

Small PET Bottle Injection Molding Machine / Preform Making Machine
Machine Features:
Injection molding machine usually consists of the injection system, clamping system,
hydraulic drive system, electrical control system, lubrication system, heating and cooling
systems, security monitoring systems and other components.
Working principle of injection molding machine is similar with an injection syringe, it is by means of a screw (or plunger) of thrust, make good plasticized molten state (ie,
viscous state) good plastic injected into the closed mold cavity to obtain shaped
articles after curing.
Injection molding is a cyclic process, with each cycle including: quantifying feeder -
molten plastics - pressure injection - filling mold cooling - open mold and pick up
products. Take out the plastic parts and then go into next cycle operation.
Main machine :
PET Preform Injection Mold
Cap mould
Screw
Aulixiary Equipment
Main technical parameter:
Item |
Specification |
||
Screw diameter |
mm |
50 |
|
Theoretical Shot weight |
CM3 |
442 |
|
Shot weight |
gram |
402 |
|
Max Injection pressure |
kg/cm2 |
1960 |
|
Theoretical Injection rate (PS) |
CM3/sec |
196 |
|
Plasticizing capacity |
g/s |
26 |
|
Screw stroke |
mm |
225 |
|
Screw torque |
N.m |
1310 |
|
Screw speed |
rpm |
250 |
|
Heating power |
kw |
13.6 |
|
Clamping force |
ton |
160 |
|
Opening stroke |
mm |
460 |
|
Mould height |
mm |
180~500 |
|
Space between tie bars |
mm |
480×480 |
|
Ejector force/stroke |
ton/mm |
45.2/115 |
|
Oil pump motor |
kw |
15 |
|
Machine size |
m |
5.2X1.3X2 |
|
Packing size |
m |
5.62×1.48×2.23 |
|
Machine weight |
ton |
5 |
|
Cycle time |
sec |
8-10 |
