Home > Manufacturing & Processing Machinery > Drilling Rig > Oilfield Drilling Rig > API Drawworks DC40 DC50 DC70 DC70DB

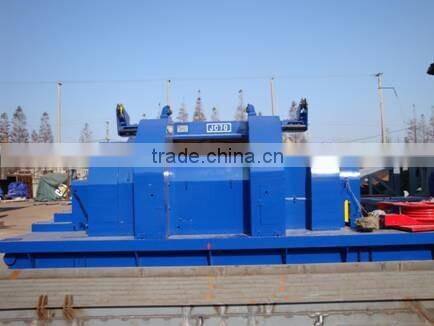

API Drawworks DC40 DC50 DC70 DC70DB

US$ 100,000 - 200,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

APS

Model Number:

JC series

Certification:

API

Contact Supplier Request Quote Chat Now

Shaanxi APS Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Shanghai port China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name APS

Model Number JC series

Certification API

Warranty 1YEAR

After-sales Service Provided Engineers available to service machinery overseas

API Drawworks

Single shaft drawworks features:

1.The single shaft drawworks is consisted of alternating current frequency conversion motor,gear reducer, hydraulic disc brake,cradle,drum shaft assembly, automatic driller and drawworks control system and so on.

2.The gear drives with high efficiency, small shock, low noise, long service life.

3.Drawworks use digital control alternating current frequency conversion varying speed control device to achieve the homopolar gearshift.

4.The drawwork is designed as single shaft notch roller structure, notch in accordance with API standard.

5.The main brake of drawworks is designed as hydraulic disc brake, assist brake is energy consumption brake or Eaton brake.

6.The drawworks is equipped with independent digital control alternating current frequency conversion gear and computer automatic control system and will be able to realize automatic bit feeding.

Triaxial four-speed chain gear drawworks feature:

Shaft gear adopts roller gear, material of shaft is steel alloy.
Driving chain adopts forced lubrication.
Roller notched. The high speed and low speed stub strap of roller have ventilation air clutch. Band brake rim adopts backwater for forced cooling. The brake flange of disc brake uses forced backwater cooling or air blast cooled. Friction surface of rim and brake disc after superficially quenching has good abrasion resistance and long service life.
The surface of chain sprocket tooth profile goes through medium frequency quench
5. Main brake adopts band brake or hydraulic disc brake.Auxiliary brake divides into energy consumption brake/eddy current brake/E.T. N brake.

Model Specification:

Model		JC 40	JC 40D	JC 40DB	JC 50	JC 50D	JC 50DB	JC 70	JC 70D	JC70 DB	JC 90DB
Nom. Depth m(ft)	D114 mm	2500-4000			3500-5000			4500-7000			6000- 9000
	D127 mm	2000-3200			2800-4500			4000-6000			5000- 8000
Rated power kW (HP)		735(1000)			1100(1500)			1470(2000)			2210 (3000)
Qty of motor * rated power kW(HP)			2×438(537)/ 1×800(1072)	2×600		2×800 (1072)	2×600		2×800 (1072)	2×1000	2×1200
Rated speed of motor r/min			880/970			970			970
Max. fastline pull kN		275			340			485			630
Dia. of drilling line mm(in)		32 (1 1/4)			35 (1 3/8)			38 (1 1/2)			45 (1 3/4)
Main drum size (D×L) mm(in)		640×1235 (25 1/4×48 1/2)			685×1245 (27×49)			770×1436 (30×56 1/2)			980×1556 (36×38 1/2)
Drum hub size of band brake (D×W) mm(in)		1168×265 (46×10 1/2)			1270×267 (50×10 1/2)			1370×267 (54×10 1/2)
Brake disc size of disc brake (D×W) mm(in)		1500×7(59×3)			1600×76(63×3)			1600×76 (63×3)			2100×76 (82 5/8×3)
Power of automatic driller motor KW(HP)				45(60)			45(60)			45(60)	2×45 (2×60)
