Automobile Engine Cylinder Vertical Honing Machine / Type 2M2217A



Automobile Engine Cylinder Vertical Honing Machine / Type 2M2217A

Product Description

Application:



The Machine is mainly used for horing holes of cylinder body and sleeve for engines and other accurate



Feature:



1. The Machine is mainly used for horing holes of cylinder body and sleeve for engines and other accurate holes;

2. Advanccd-design and steady function;

3. Stepless of spindle turning feeding;

4. The rotation of the main shaft adopts gear transmission, feeding by Continuously Variable.



Technical parameter



Honing diameter range

φ40-φ170mm

max.honing depth

320mm

Telescopic length of spindle connecting rod

120mm

Spindle speeds(four steps)

130,180,240,365rev/mm

Spindle alternating motion speed(stepness)

3-18m /min

Max.spindle travel

300mm

Distance from spindle axis to column vertical plane

300mm

Dimensions of the surface

400x1000mm

Table longitudinal travel

800mm

Machining
accuracy

Dimension
accuracy

0.003mm

Roundness

0.005mm

roughness

Ra0.4

Overall Dimensions(LxWxH)

1900x1176x2169mm3

N.W./G.W.

2000kg / 2500kg

Paking Dimensions ( LxWxH )

1440x1770x2170mm3



Automobile Engine Cylinder Vertical Honing Machine / Type 2M2217AAutomobile Engine Cylinder Vertical Honing Machine / Type 2M2217A



Accessories

Standard accessory





1

MT 62 honing head

(honing Φ62-Φ82 hole)

2

tool case





Automobile Engine Cylinder Vertical Honing Machine / Type 2M2217A

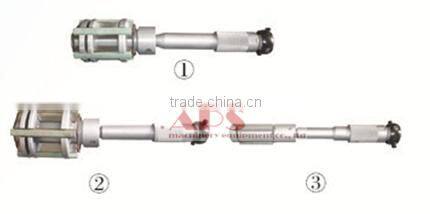

1

MT110 honing head(honing Φ110-Φ170 hole)
(Need special order)

2

MT82 honing head(honing Φ82-Φ110hole)

3

MT40 honing head(honing Φ40-Φ62 hole)



Automobile Engine Cylinder Vertical Honing Machine / Type 2M2217A
